• Model NO.：DT65-III
• Material：Stainless Steel
• Electric Parts：LG, FUJI, Omron etc
• Capacity：Capacity120-140kg,H, 200kg,H, 300-400kg,
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Warranty：One Year
• Product Name：High Quality Corn Flakes Machinery
• Motor：Siemens, ABB and China Brands
• Energy：Electricity, Oil Diesel, Gas, Steam
• Export Markets：Global
• Transport Package：Woodcase
• Specification：200kg
• Trademark：Jinan Datong Machinery Company
• Origin：Jinan
• HS Code：84361000
• Production Capacity：100-150kg,H

Basic Info.

Model NO. DT65-III Material Stainless Steel Electric Parts LG, FUJI, Omron etc Capacity Capacity120-140kg/H, 200kg/H, 300-400kg/ After-Sales Service Provided Engineers Available to Service Machinery Overseas Warranty One Year Product Name High Quality Corn Flakes Machinery Motor Siemens, ABB and China Brands Energy Electricity, Oil Diesel, Gas, Steam Export Markets Global Transport Package Woodcase Specification 200kg Trademark Jinan Datong Machinery Company Origin Jinan HS Code 84361000 Production Capacity 100-150kg/H

Product Description

Full Automatic Breakfast Cereal Manufacturing Equipment Corn Flakes Extrusion Plant

1.1 Breakfast Cereal Manufacturing Equipment

Corn flakes/Breakfast cereal is a kind of crispy food, with the characteristics of hard to be steeped broken and strong grain taste.It is mainly made from corn flour and other grains powder. The production line includes mixing, extruding ,flaking,drying,high tempeture backing,flavoring and .It can be used as a snack or served with milk and coffee.Change molds and choose the right process to produce circles, balls, sheets, stars, letters and other products,and produce core filling snack food, filling biscuit ,nutrition breakfast, corn flakes and other puffed foods.

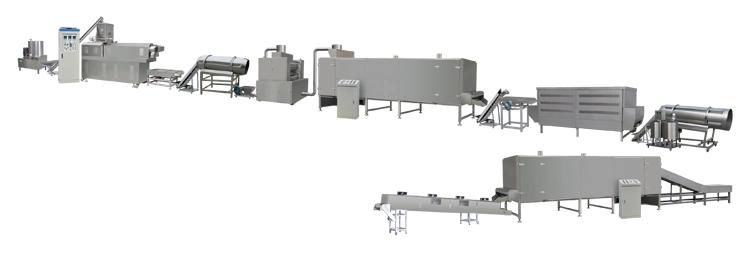

1.2  Processing Line Description

^{Mixer → Screw conveyor → Extruder→Vibrating feeder→Drum-type dryer→Air Conveyor→Flaking machine→Air conveyor→Dryer→Hoister→Vibrating feeder→High temperature inflated oven→Flavoring line→Dryer→Cooling mchine}

1.3 The Advantages Of Breakfast Cereals Production Line:

   The main extruder adopts frequency speed controlling with high automatic and stable pre-formtion

  The screw are made of the alloy steel and speical craft,durablr usesge,high pressure,the screw life is longer.

  The forced lubrication system,can guarantee the equipment transmission life longer.

  Auto-temperature control system makes the temperature control more direct viewing and the parameter more precise.

  Self cleaning,when stopping,it can be cleaned without disassembling.


1.4 Technical Parameters For Referance

Model	Capacity	Installed Power	Actual Power
DT65 CORN FLAKE MACHINE	100-150kg/h	130kw	90kw
DT70 Breakfast cereal processing line	200-250kg/h	160kw	120kw
DT85 Corn flake procssing line	300-500kg/h	190kw	140kw

1.5  Corn Flakes Breakfast Cereal Samples





2.  Product Information

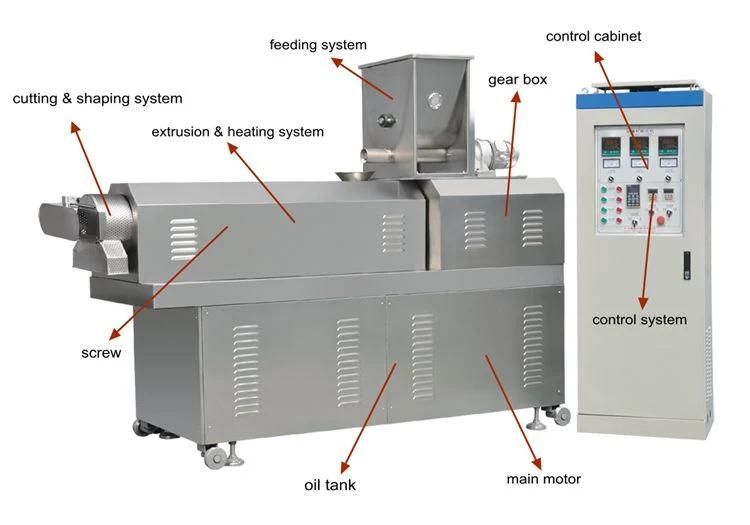

2.1  Extruder Detail



2.2  Serious Dryers

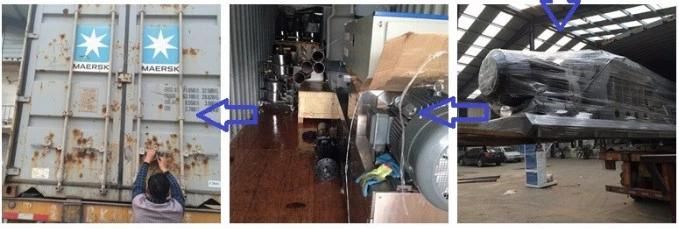

3.Packaging & Shipping

1. Packing machines into wooden cases;

2. Let trucks take containers to our factory for safely loading;

3. Sending to port for boarding and transportation.

4. We also can send machines by air and train.

4.Our Services

Convey the manufature information to you in time.

1 year warranty for the machines;24 hours online service

Overseas installation and train the first-line operators.

For any questions, professional technicians will solve for you timely.

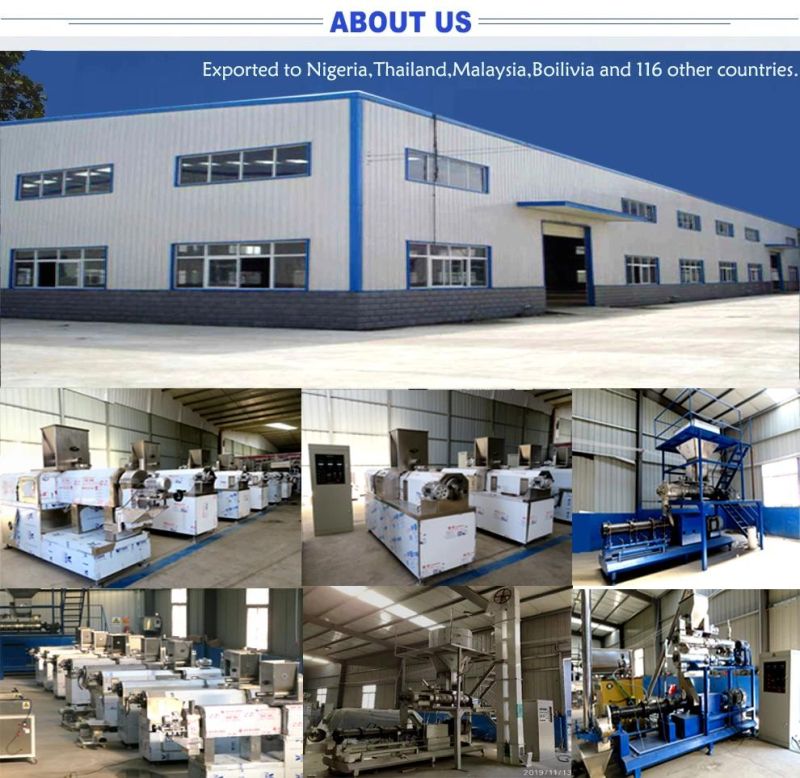

5.Company Information

 Jinan Datong Machinery Co., Ltd is a professional manufacturer of extrusion machinery. We have employed high quality talents in engineering design and food technology. Our company have specialized in manufacturing fish food machine many years, new technology automatic stainless steel fish feed production line. We have ISO9001:2008 and CE certificates, and pass SGS and TUV inspections.

FAQ:

 Q1.Are you a manufaturer or a trading company?

Answer: We are a professional manufaturer with trading department.

Q2. Shall we visit your company to check the machine?

Answer: Of course! Highly appreciated your visit to our company.

Q3.Could you provide customized machine?

Answer: We can manufacture the machine as your request.
Q4.What's your payment term?

Answer: Usually T/T: 30% deposit,70% payment before delivering the goods. Or 40% deposit,60% payment before delivering the goods.LC is also acceptable.

Q5: Have you ever sold your products to International market?
A: Until 2015, we have sold our products to more than 60 countries and regions. This number is keeping growing.

Q6: Could you supply food raw materials or the machine in different industry?
A: Because of the business scope limitation in China, we can only supply food machines. But we can help you to find the best suppliers in China. As Chinese, we are more familiar with Chinese market.
