• Model NO.：DQXJ190x450 DQXJ190x490
• Condition：New
• Customized：Customized
• Line：Sweet Potato Starch Production Line
• Useful Life：20 Years
• Service：Overseas Installation
• Training：Yes
• Capacity：20-50 T,H
• Weight：6000 Kg
• Dimension：6110*2340*2170 mm
• Power：30 Kw
• Product Name：Rotary Washing Machine
• Working Type：Continous Work
• Keywords：Sweet Potato Washing Machine
• Drum Length：4900 mm
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DQXJ190x450 DQXJ190x490 Condition New Customized Customized Line Sweet Potato Starch Production Line Useful Life 20 Years Service Overseas Installation Training Yes Capacity 20-50 T/H Weight 6000 Kg Dimension 6110*2340*2170 mm Power 30 Kw Product Name Rotary Washing Machine Working Type Continous Work Keywords Sweet Potato Washing Machine Drum Length 4900 mm Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

sweet potato starch making machine stainless steel sweet potato washer rotary cleaning machinery

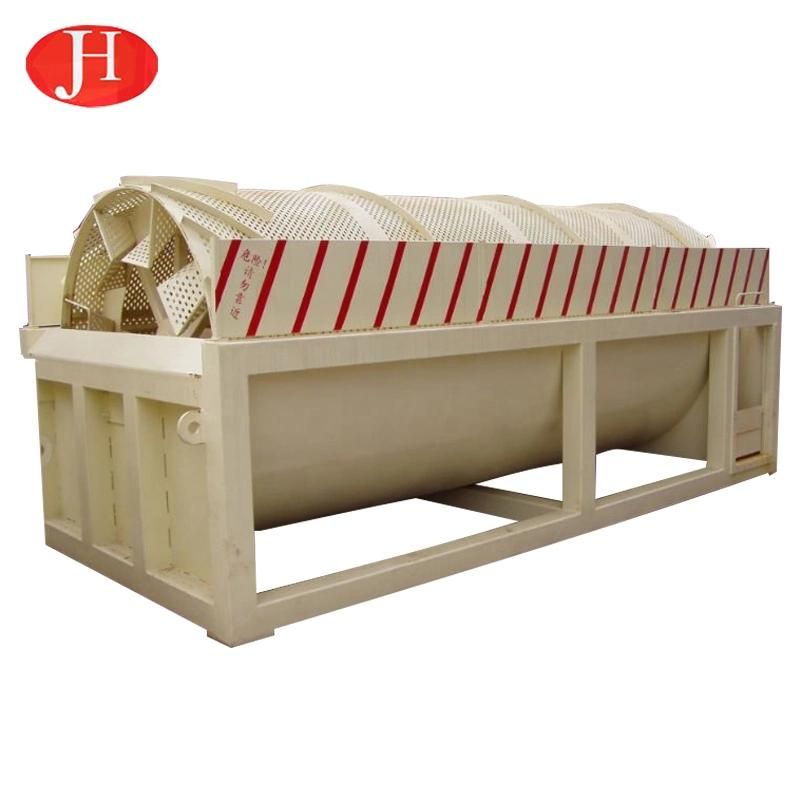

1.Description of sweet potato cleaning machine
Rotary drum washer is applied to wash plantains ,cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in flour processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.

Main Features of Rotary Washing Machine
1. The whole machine adopts counter-current washing principle, the cleaning effect is good, can effectively remove mud, remove sand.
2. With reasonable feed structure, the crushing of material is less than 1%, which is more conducive to the extraction of starch..
3. The roller is made of high quality steel plate by CNC punching machine, durable.

Main Technical Parameters

Model	Drum diameter (mm)	Drum length (mm)	Capacity (t/h)	Power (Kw)	Dimension (mm)	Weight (Kg)
DQXJ190x450	Φ1905	4520	20-25	18.5	5400x2290x2170	5200
DQXJ190x490	Φ1905	4920	30-35	22	5930x2290x2170	5730
DQXJ190x490	Φ1905	4955	35-50	30	6110x2340x2170	6000

Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.

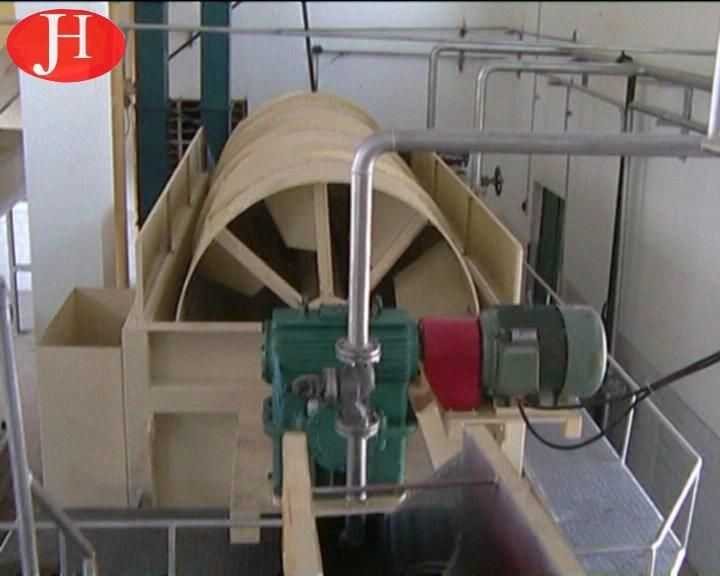

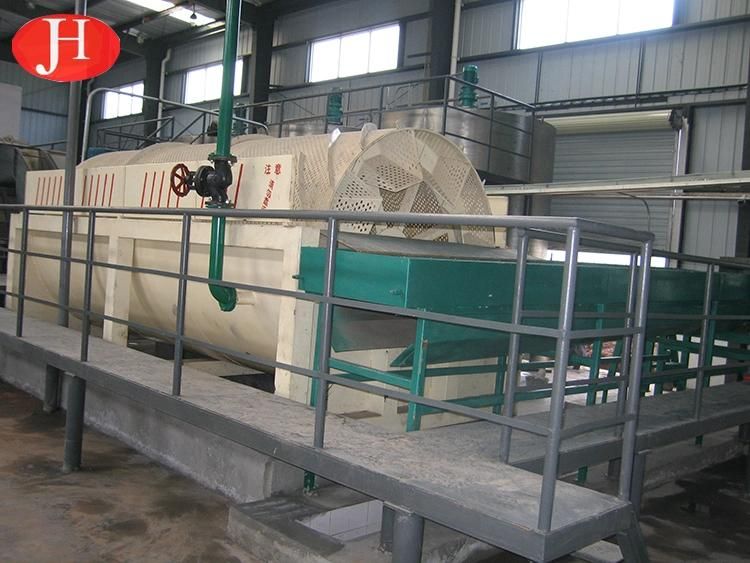

Real application case

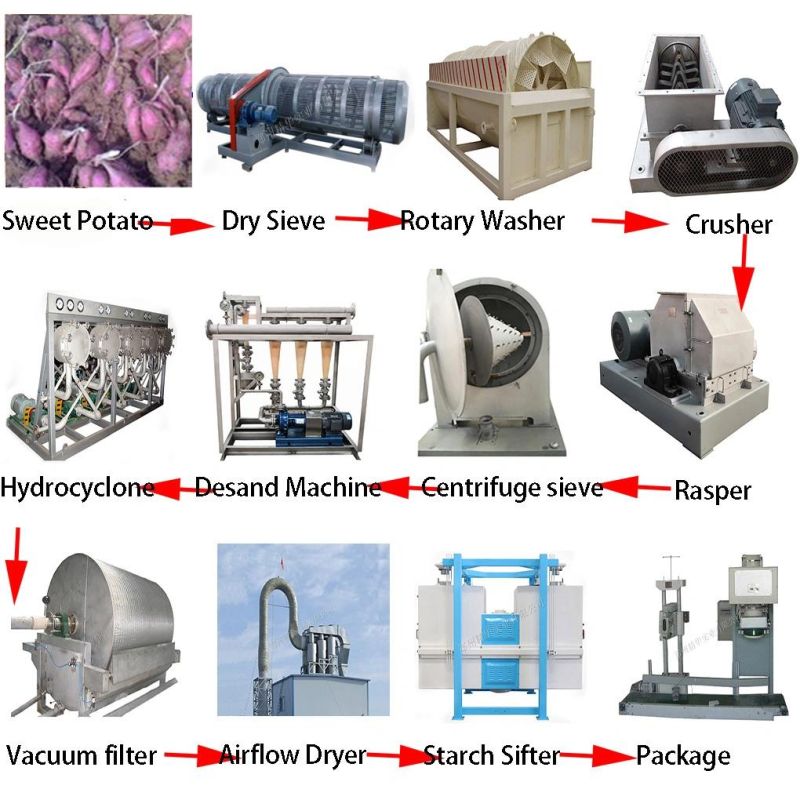

There are four steps to making sweet potato starch
1.Cleaning:To remove the stone sand and from the raw material.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.

2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


3.Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory

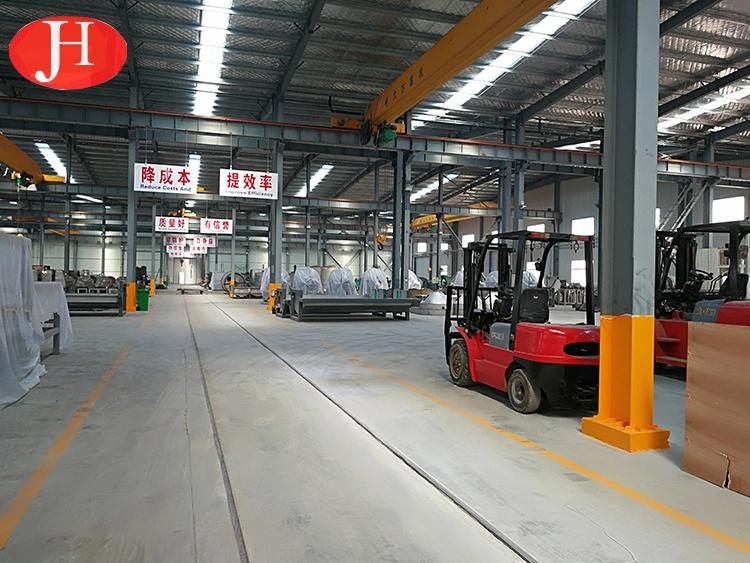

Our Workshop


Our Workshop


Our Certificate


4.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

5.Our Customer


6.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
