• Model NO.：QP80
• Line：Potato Starch Production Line
• Useful Life：20 Years
• Condition：New
• Voltage：220V or 380V
• Price：Negotiable
• Patent Product：Yes
• Quality：Top Quality
• Operation：Automatic
• Warranty：12 Months
• Service：Overseas Installation
• Training：Yes
• Capacity：8 T,H
• Material：Stainless Steel
• Dimension：4300*1480*1640 mm
• Product Name：Cassava Peeler Machine
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. QP80 Line Potato Starch Production Line Useful Life 20 Years Condition New Voltage 220V or 380V Price Negotiable Patent Product Yes Quality Top Quality Operation Automatic Warranty 12 Months Service Overseas Installation Training Yes Capacity 8 T/H Material Stainless Steel Dimension 4300*1480*1640 mm Product Name Cassava Peeler Machine Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

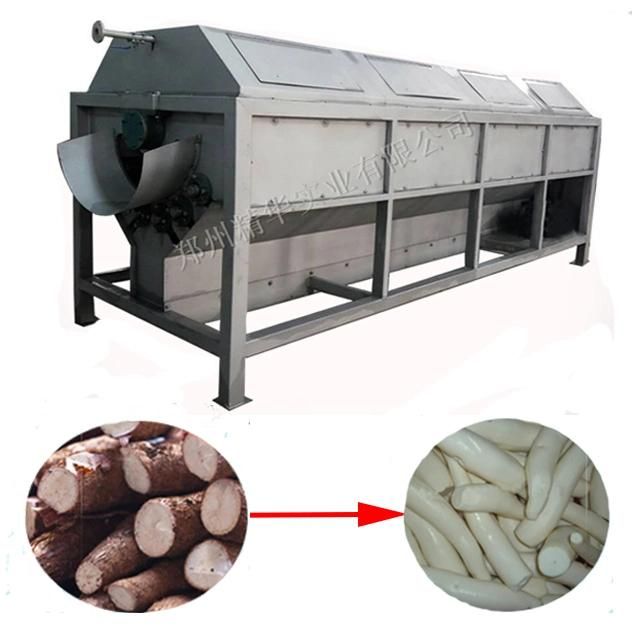

1.Description of cassava peeler machine
The sand-roller peeler is mainly used to remove the epidermis of plant roots on the round outer surface of sweet potato and cassava, and is widely used in cassava starch production enterprise.

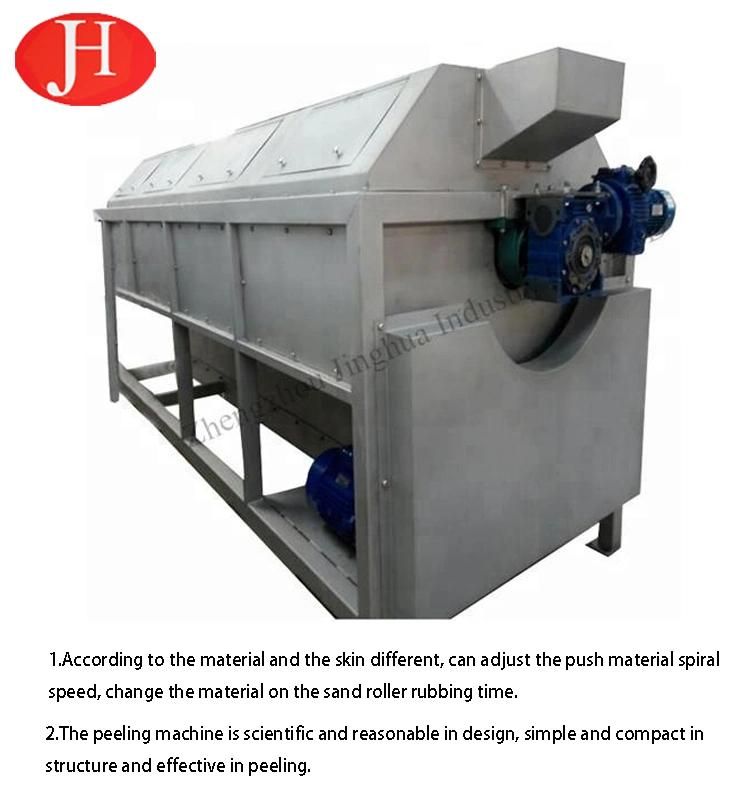

Advantages of cassava peeler machine
1. The skinning machine is composed of a frame, a cover, a sand roller set arranged in the frame housing, a feeding screw, a washing device and a power device for driving a combined feeding screw of the sand roller.
2. According to the material and the skin, it can adjust the spiral speed of material pushing and change the rubbing time of material on the sand roller, so as to achieve the expected effect of peeling.
3. The structure can be used to peel the material, and the effect of peeling is high. Good effect is conducive to improving the quality of finished products.
4. The machine is scientific and reasonable in design, simple and compact in structure and effective in peeling.

The working principle of cassava peeler machine
The material enters the arc-shaped passage from the front feeding port, during which the sand roller sets arranged in arcs rub each other, rotate and roll themselves, and move backward under the push of the spiral. When it reaches the rear feeding port, the skin has been removed. According to the material and the skin, it can adjust the spiral speed of material pushing and change the rubbing time of material on the sand roller, so as to achieve the expected effect of peeling.

Main technical parameters

Model	Explosion screw diameter	Power(kw)	Capacity(t/h)	Dimension(mm)
QP80	800mm	5.5*2+1.5	4-5	4300*1480*1640

2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).



3.Our Service
1.After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;

2.After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.

3.After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.

4.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory


Our Workshop


Our Certificate


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
