• Model NO.：KN-500
• Package Size：1000*1000*650mm
• Application：Fruit Vegetable Centrifugal Dewatering Machine

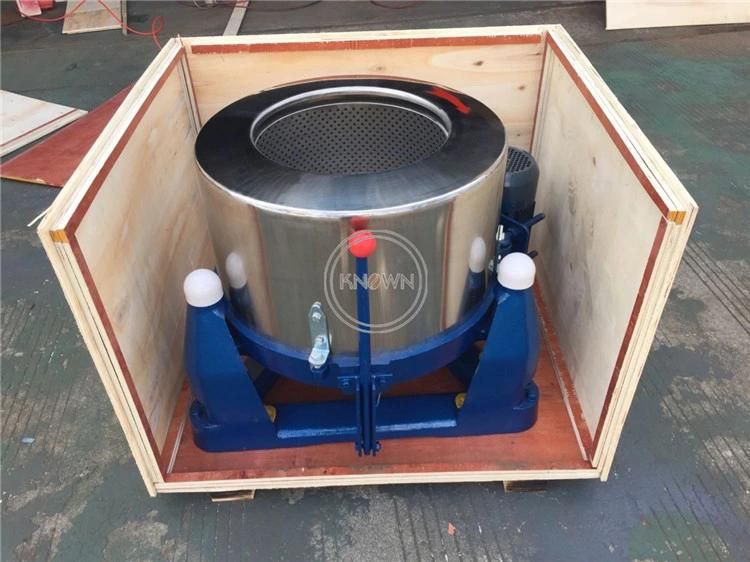

• Transport Package：Wooden Case
• Specification：1000*1000*650mm
• Trademark：REALLY
• Origin：China
• Production Capacity：500

Basic Info.

Model NO. KN-500 Package Size 1000*1000*650mm Application Fruit Vegetable Centrifugal Dewatering Machine Transport Package Wooden Case Specification 1000*1000*650mm Trademark REALLY Origin China Production Capacity 500

Product Description

    Product Description
industrial 304 stainless steel food fruit vegetable Centrifugal dewatering machine Application
The industrial centrifugal dewatering machine is designed according to the unified standard of the former State Textile Industry Department. It has the advantages of simple and reasonable structure, high efficiency, low wear, low noise, safety and reliability.
It is mainly used in various spinning (needle) fabrics, garments, chemical raw materials, latex products, etc. After washing, it is widely used in textile, printing and dyeing, clothing, hotels, hospitals, chemical and latex products.

industrial 304 stainless steel food fruit vegetable Centrifugal dewatering machine Features

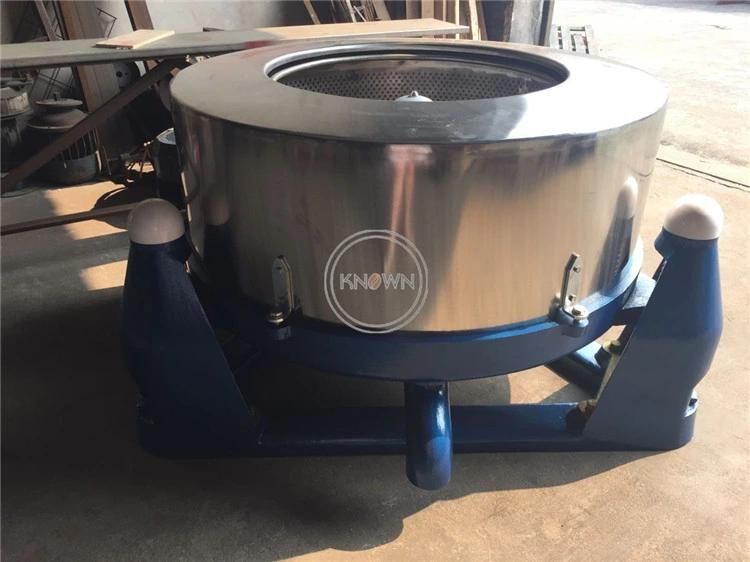

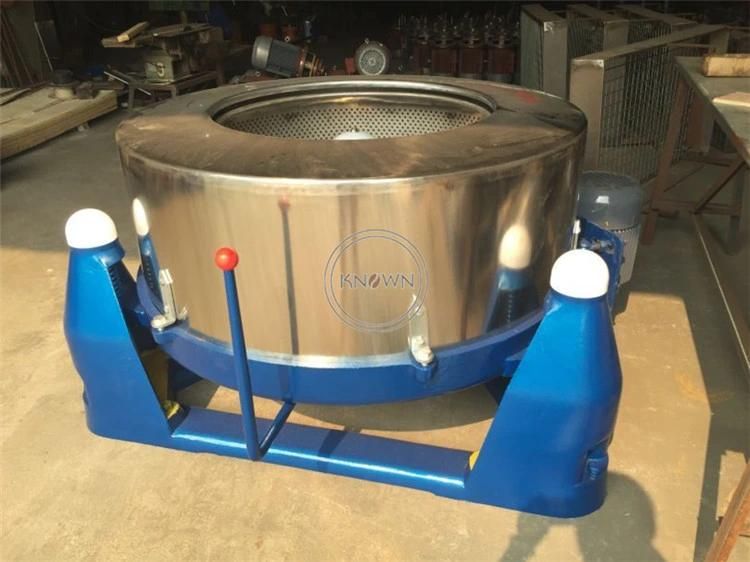

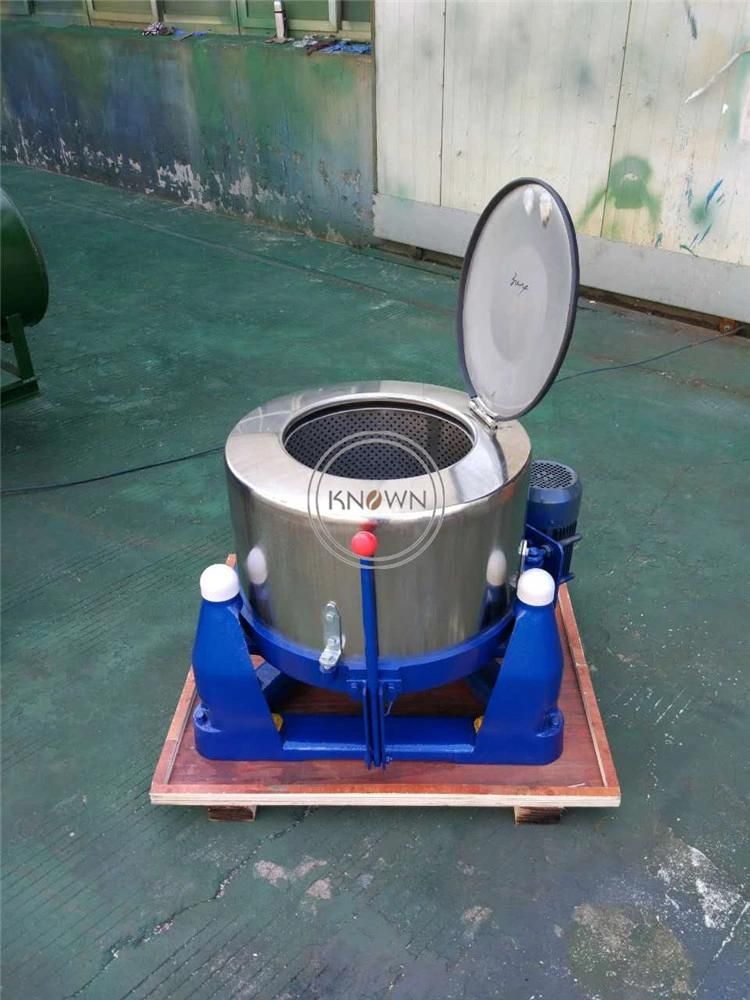

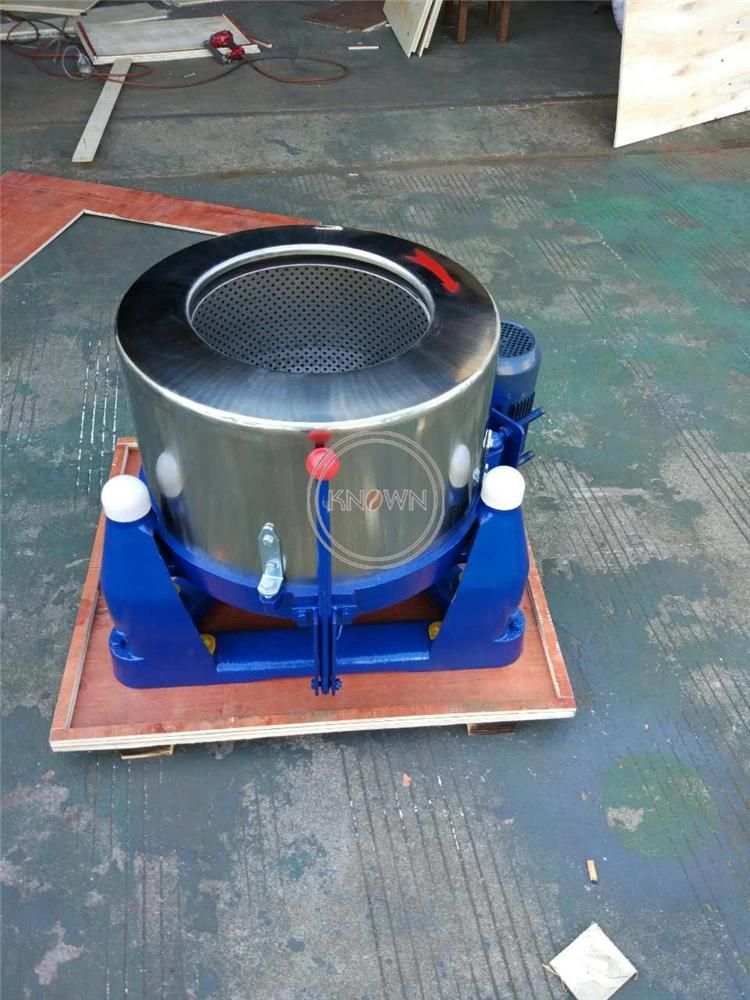

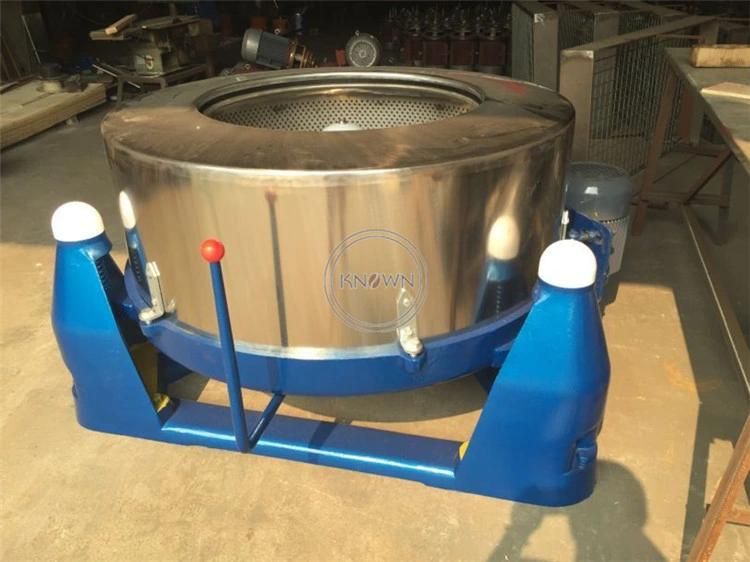

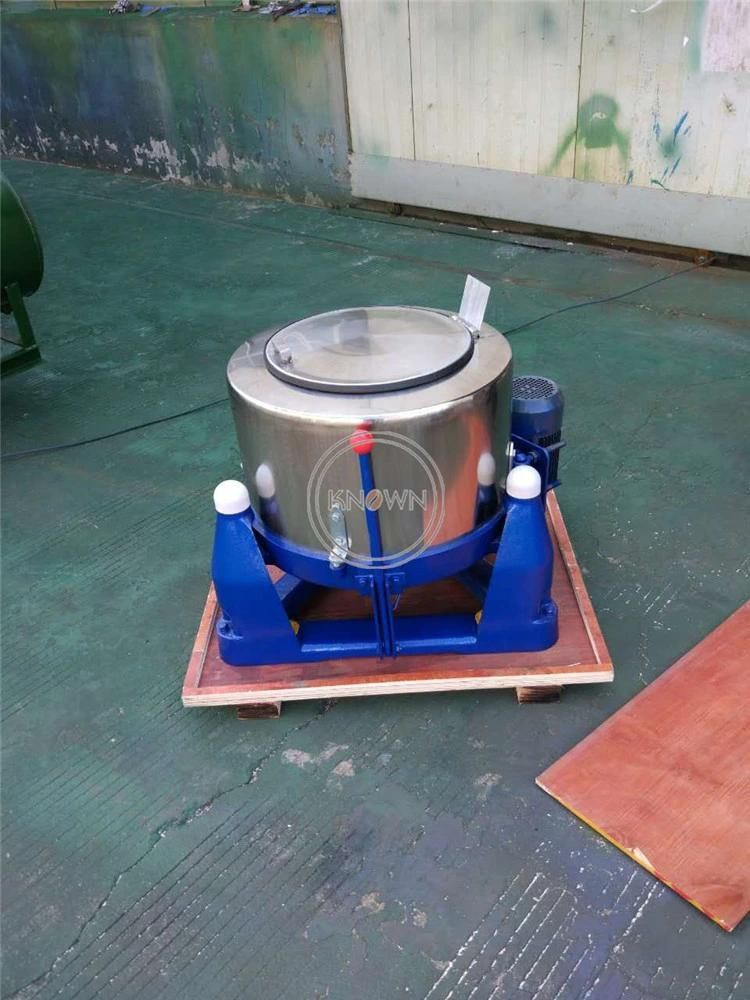

1)The industrial centrifugal dewatering machine is a three-legged pendulum structure, which can effectively reduce the vibration of the foot generated during operation due to the imbalance of the load inside the hub.
2,)the outer casing and the top cover are made of high quality stainless steel, the base of the cage, the chassis is cast iron material, and the outlet pipe is below the chassis.
3)The main shaft is made of high-quality steel and heat-treated.

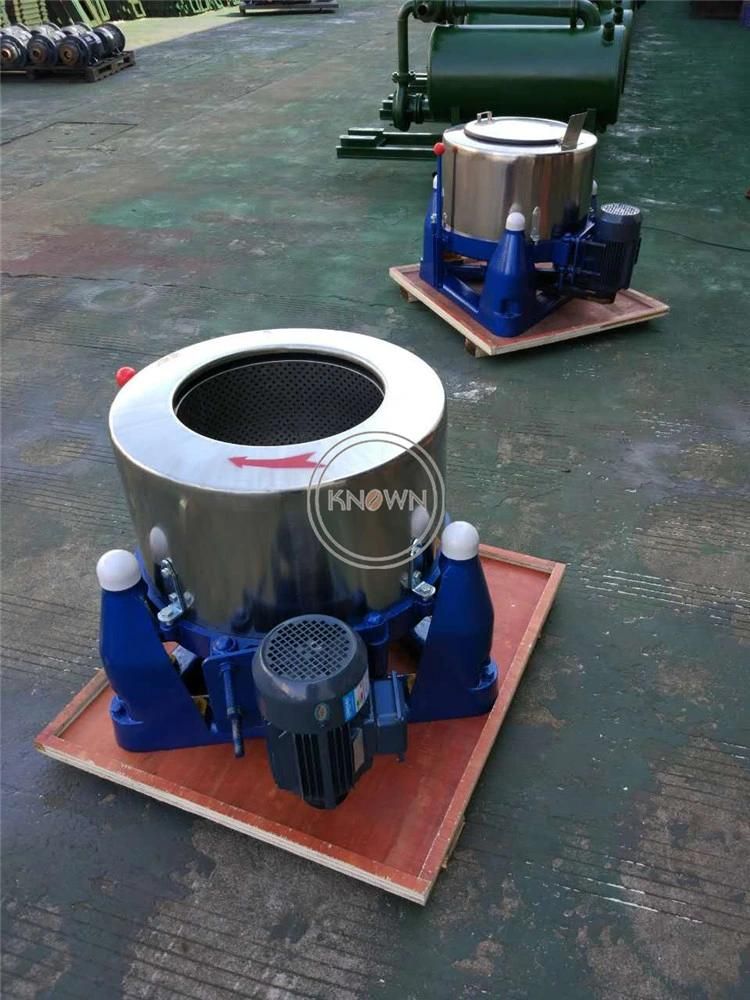

4)The transmission part is driven by triangular tape. The motor directly drives the centrifugal release starter wheel, which can make the machine start slowly and gradually reach the design speed to ensure the smooth operation of the machine.
5)There is a brake opening and closing arm in the machine, and the braking performance is good, which can make the machine stop quickly.Detailed Images

Model/parameter	RL-500	RL-600	RL-800	RL-1000	RL-1200	RL-1500
Hub diameter	500mm	600mm	800mm	1000mm	1200mm	1500mm
Hub height	300mm	300mm	340mm	380mm	480mm	600mm
Hub speed	960r/min	960r/min	910r/min	900r/min	700r/min	750r/min
Power	1500w	2200w	4000w	5500w	7500w	11000w
Maximum capacity	25Kg	45Kg	80Kg	130Kg	220Kg	500Kg
Machine diemnsion	1000*1000*650	1250*1250*700	1500*1500*800	1800*1800*900	2000*2000*1020	2550*1950*1400
Mahcine weight	250Kg	450Kg	760Kg	1100Kg	1600Kg	2400Kg
