• Model NO.：GJB Series
• Name：Sanitary 1000lph 2000lph 3000lph Ice Cream Homoge
• Product Material：Stainless Steel 304,316,316L
• Capacity：300L,H-10000L,H
• Pressure：20MPa-100MPa (200bar -1000bar )

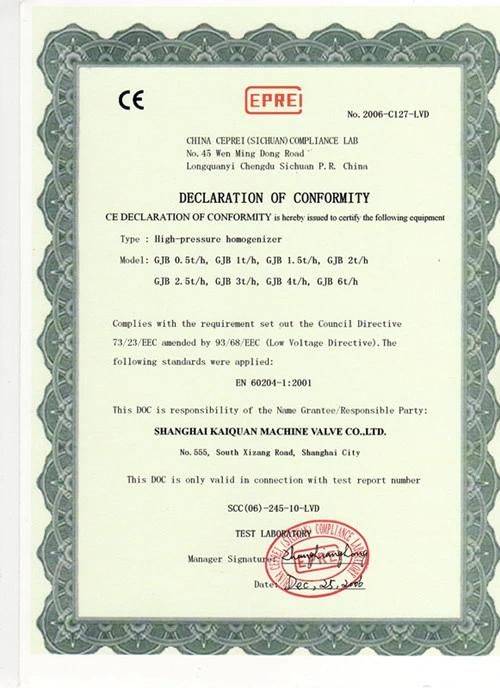

• Homogenizer Certificate：Ce Certificate
• Homogenizer Appication：Milk, Juice, Beverage, Butter, Honey, Cream
• Performance：0.2um
• Warranty Perido：One Year After You Get It .
• Delivery：10 to 15 Days
• Packing：Plywood Box
• Working Life：More Than 10 Years
• Voltage ,Hz ,Phase：Make It to Your Order
• MOQ：1set
• OEM：Yes
• Spare Parts：Available
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name Sanitary 1000lph 2000lph 3000lph Ice Cream Homoge Product Material Stainless Steel 304/316/316L Capacity 300L/H-10000L/H Pressure 20MPa-100MPa (200bar -1000bar ) Homogenizer Certificate Ce Certificate Homogenizer Appication Milk, Juice, Beverage, Butter, Honey, Cream Performance 0.2um Warranty Perido One Year After You Get It . Delivery 10 to 15 Days Packing Plywood Box Working Life More Than 10 Years Voltage ,Hz ,Phase Make It to Your Order MOQ 1set OEM Yes Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

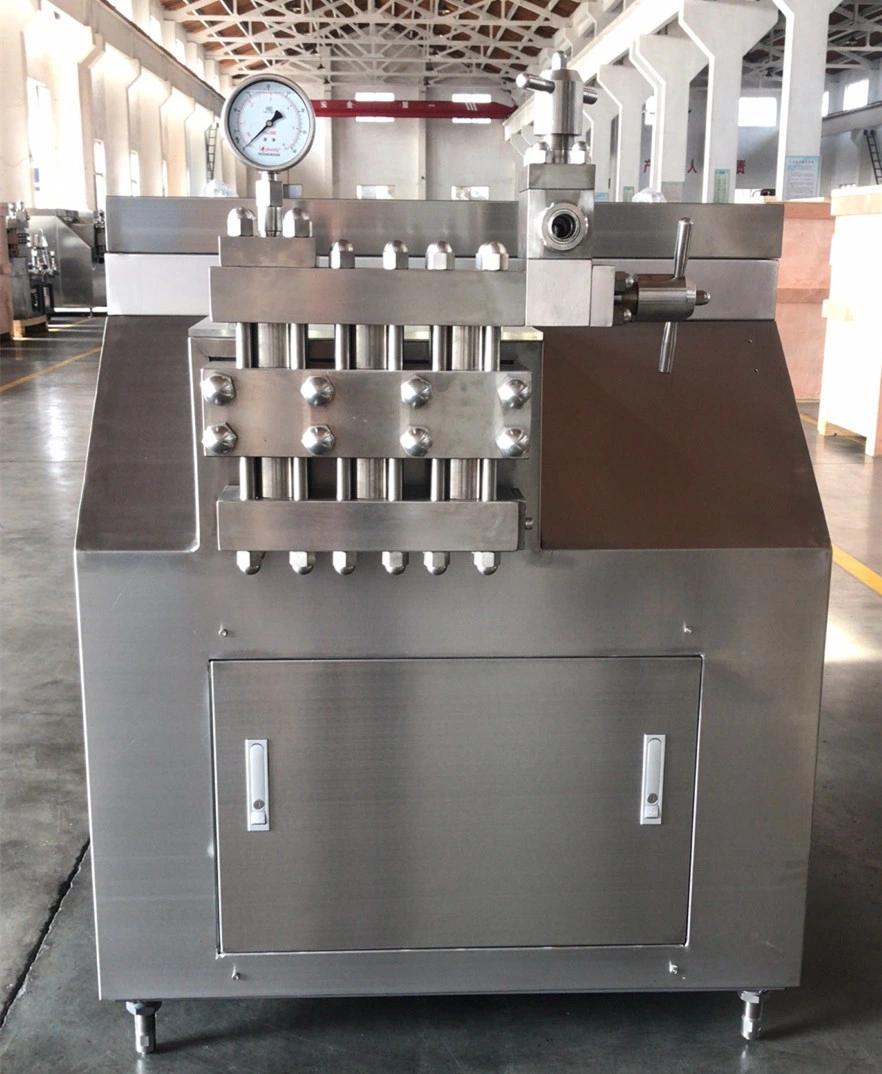

Sanitary 1000LPH 2000LPH 3000LPH Ice Cream Homogenizer Machine
Industrial Juice Drink Liquid Biology Homogenizer For Food





Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

250 Bar Milk/Juice/Dairy Homogenizer Price
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
Sanitary 1000LPH 2000LPH 3000LPH Ice Cream Homogenizer Machine .
