• Model NO.：FTA-100
• Condition：New
• Customized：Non-Customized
• Capacity：15~100 Ton Per Day
• Transport Package：Wood Carton
• Specification：2500*1000*3500
• Trademark：Chengli
• Origin：China
• HS Code：84378000
• Production Capacity：10 Pieces,Month

Basic Info.

Model NO. FTA-100 Condition New Customized Non-Customized Capacity 15~100 Ton Per Day Transport Package Wood Carton Specification 2500*1000*3500 Trademark Chengli Origin China HS Code 84378000 Production Capacity 10 Pieces/Month

Product Description

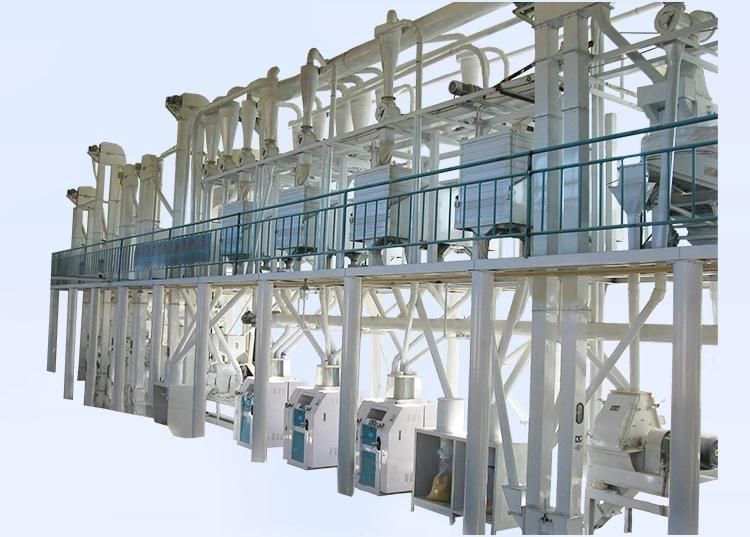

FTA series Corn Flour/Maize Grits Production Line With Output 30 Ton to 150 Ton
 ***Product Description

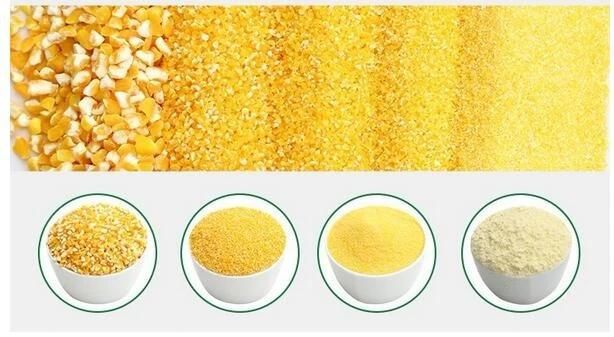

This production line adopts dry peeling and degerming technology. It can produce different sizes of corn grits and flour at the same time. Corn grits can be customized to meet various needs such as brewery, snack food, glucose, sugarhouse.

Thanks for the dry peeling and degerming technology, husks and germs collected at the end don't need to be dried before used as animal feed(PS: Fobber can be packed directly, not need dry)

FUNCTION: Cleaning,Peeling,Crushing,Polishing and Sieve classifying into flour, grits.

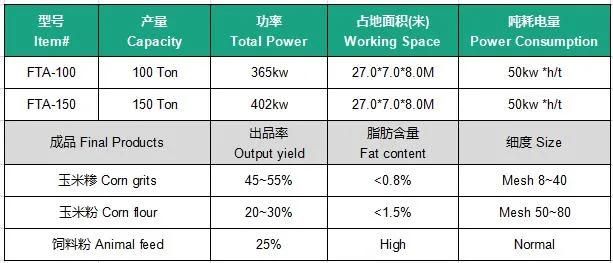

***Parameter Sheet


***Characteristic

1. Dry milling technology save labor work
2. Fully automatic with high performance
3. Easy operation and mantainence and energy saving
4. High output rate of final products
5. Installation, staff training service
6. Reasonable price

Cleaning part:  to clean out the middle and small impurity from maize.e.g., dust, stone, magnetic material.  and maize was bitten by insect and so on.Includes beating, screening, destoner, magnetic separator  and dampening.
this section is make the maize to prepare for millling part and to protect the machinery as well.

Milling part: Include different number of mill and sifter to mill the maize and separate the flour and bran.(1) Mill: mill the maize to break the integrity by the roller moving
(2) Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.

 Packing part: the packing part can be manual one also can be auto one. this can be designed according to requirement and machine capacity.

 PLC controlling system: to controlling the whole set of machinery to work well and showing the process of working.

***Our Services

A. We provide a turnkey project of our machinery, including special design, installation, commissioning, training workers.
B. All of our equipment contain ONE(1) YEAR free spare parts and warranty.
C. 24 hour/day and 7days/week for after-sales service.
D. Lifelong service to each equipment be sold to you.

PS: We provide turnkey project ofmachinery, including special design, installation, commissioning, training workers. All of our equipment contain one year free spare parts.

*** Customer Visit


 *** Company Information



*** Contact Details:

Henan Chengli Grain and Oil Machinery Co.,Ltd.Attn:Nancy Fan

THANK YOU FOR YOUR ATTENTION!
