• Model NO.：DQK140
• Product Name：Frozen Meat Cutter Dqk140
• Material：SUS304 Stainless Steel
• Power：7kw
• Capacity：1500-2000kg,H
• Cutting Size：120-200 mm
• Certificate：Ce
• Warranty：1 Year
• Transport Package：Wooden Box
• Specification：800kg
• Trademark：Chengye
• Origin：China
• HS Code：8438600000
• Production Capacity：1500-2000kg,H

Basic Info.

Model NO. DQK140 Product Name Frozen Meat Cutter Dqk140 Material SUS304 Stainless Steel Power 7kw Capacity 1500-2000kg/H Cutting Size 120-200 mm Certificate Ce Warranty 1 Year Transport Package Wooden Box Specification 800kg Trademark Chengye Origin China HS Code 8438600000 Production Capacity 1500-2000kg/H

Product Description

meat chopper machine industrial frozen meat cutting knife

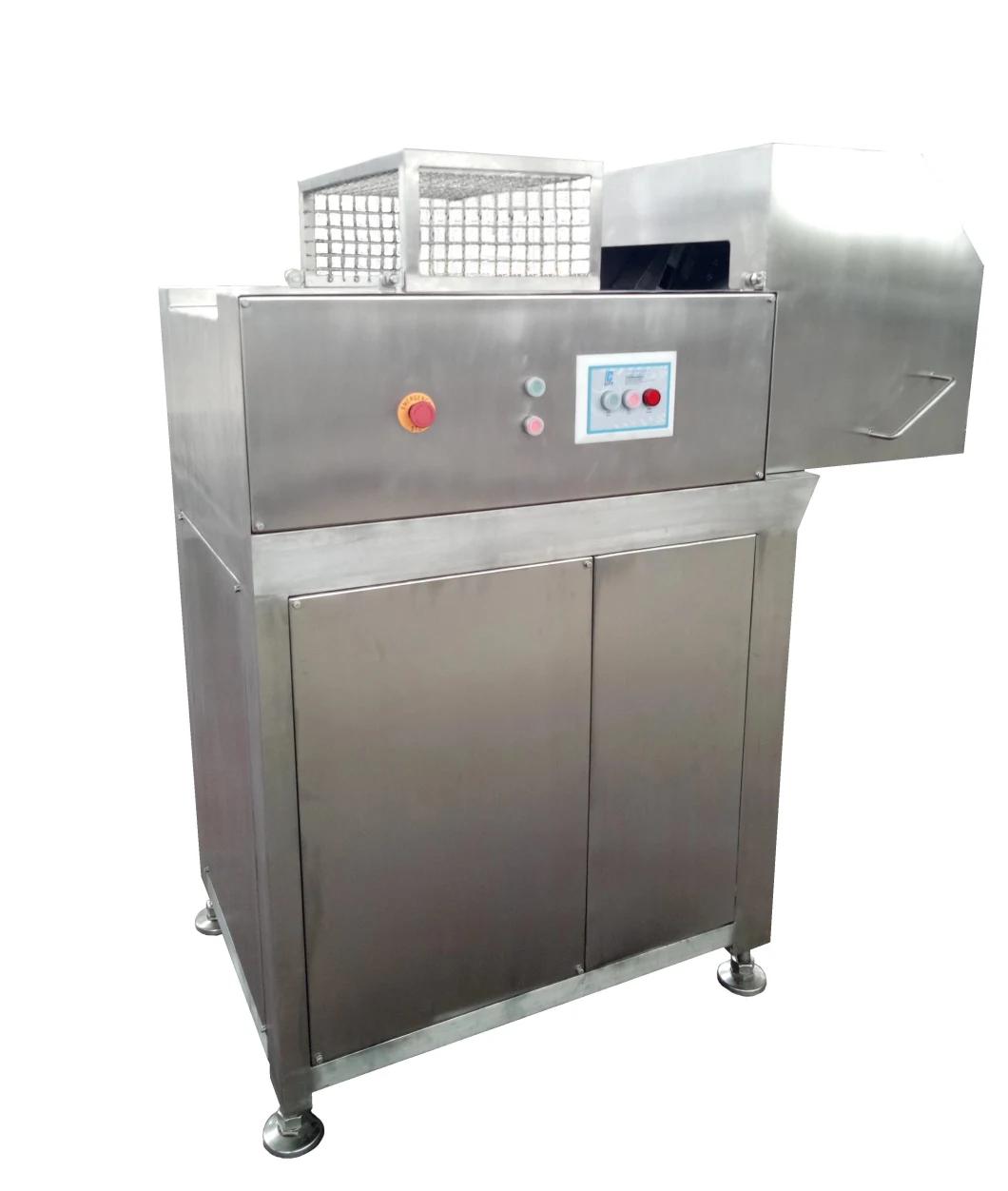

Frozen meat cutter DQK140
Hydraulic station : Taiwan Yuken
Linear Bearings: Igus
Low voltage electrical circuit breaker, AC contactor, motor starter: ABB
Intermediate relay:IDEC
Switching Power Supply: REGIN POWERCO
Proximity switch: Omron
Button indicator: Tayee

Product Name	Frozen meat cutter DQK140
Material	SUS304 Stainless steel
Power	7 kw
Capacity	1500-2000kg/h
Certificate	CE
Cutting size	120-200 mm
Weight	800kg
Warranty	1 Year

Products Show
 Structure:
QK140 is consisted of frame, drive system, cutting system, feeding system and electrical control part, made of SUS304.

Features
The cutting knife and the drive frame are on a straight line, which can be more durable, simple-structured, low cost in maintain. The driven system is hydraulically, with adjustable cutting force and speed;

No need to unfrozen the meat, our machine can cut the frozen meat block directly, which maintain the nutria inside the frozen meat.

Application:

Our machine is widely used in breaking and cutting the large size frozen meat block like pork, beef, chicken, fish etc. It can cut the whole -18ºC meat block into small blocks with high efficiency.
  Customer Photo

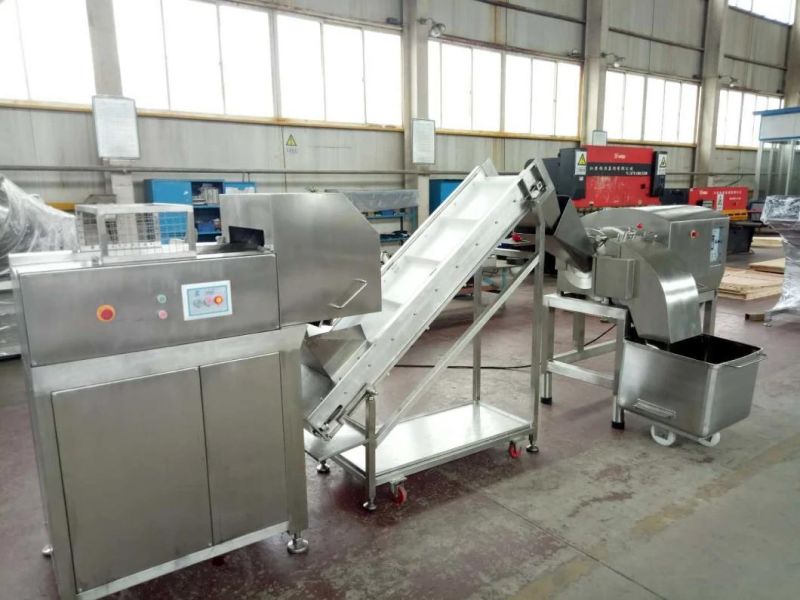

Frozen meat cutter DQK140


 Frozen meat cutter DQK140 can cut the meat or cheese into cube smaller than 200*200*200mm. Then, it would transported to the inlet of the frozen meat dicer DRD450 by the conveyor T140, and finally cut into the size you need.




Completely designed according to European CE safety directives: Machinery directive 2006/42/EC, Low voltage directive 2006/95/EC, EMC directive (electro magnetic compatibility) 2004/108/EC

Standard in-feed and discharge chute extensions




The Part1 frozen meat cutting machine adopts the hydraulic station to drive the knife set up and down. The speed and size are both adjustable.




  Our Company
   Packing & DeliveryPacking Details  : The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery Details :7~45 days. Depends on Voltage/Frequency, Quantity and stock situation FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?

A: 7~45 days. Depends on Voltage/Frequency, Quantity and stock situation


Q: What is your terms of payment ?

A: TT with 30% deposit, and 70% balance before delivery
If you have another question, pls feel free to contact us as below:
