Lab Laboratory Cream Mixer Emulsifier Homogenizer
Yangzhou ZhiTong Machinery Co., Ltd.- Process：Thermal Processing
- Power Source：Electric
- Certification：CE, ISO9001
- Automatic Grade：Automatic
- Application：Milk
- Customized：Customized
Base Info
- Model NO.：ZT
- Model：50L
- Power：11kw
- Material：Stainless Steel
- Heating Method：Electric Heating
- Thickness：2mm
- MOQ：1set
- Polish：300 Mesh
- Jacket：Double
- Quality：Excellent
- Control：Button Control Panel
- Transport Package：Ply Wood Case
- Specification：Stainless steel
- Trademark：ZHITONG
- Origin：Guangzhou
- HS Code：8479820090
- Production Capacity：5000
Description
Product Configuration
ZT-B-50L hydraulic lift vacuum homogeneous emulsifier configuration, parameters Main pot Work volume 100L; Total volume 120L ZhiTong Internal and external polishing 300 U or more
1 Internal pot(GMP standard
Total) Tube: Material SUS316L, Thick: 4mm
Cover: Material SUS316L, Thick: 4mm
Internal boiler steam sterilization ZhiTong Double side welding of head and pot
Catch, Polish and throw light; 2 Jacket Material SUS304, 4mm thick
Covering electric heating, heating rod power: 6KW, pressure ≤ 0.2 Mpa, connecting water, but lower into the upper row ZhiTong
Factory pressure vessel standard test pressure
3 outsource SUS304 thickness: 3mm
Cover material SUS 304 thk: 3mm
ZhiTong R-arc transition welding of middle and outer cladding 4 pot cover The overall head of the upper cover is lifted, sealed,
Cover: Material SUS316L vacuum electrical contact pressure gauge,(hydraulic pressure can not be raised in vacuum) suction filter, release port, air pump inlet(with breathing apparatus), mirror lamp, spice funnel. Assembly of fast suction pipes for feed filtration ZhiTong Access to all parts of material
GMP Health Class Stainless Steel
5 Mixing paddle, shaft scraper
Stir the blades with a shaven frame and bottom
Tablet, stainless steel, scraper:
PTFE A board, white ZhiTong Flange coupling connection
6 Stir motor Stirred motor power: Grade 4 0.75 kW domestic
The best reducer: Guomao brand 1:23
Speed: 0-63 rmin, Panasonic inverter Germany Stirred motor power: Grade 4 1.5kW domestic
The best reducer: Guomao brand 1:23
Speed: 0-63 rmin, Panasonic inverter Japan 7 Mixing mechanical seal
Adopt Bogeman mechanical seal 1 set
Jiasheng.
8 Lower assembly homogenizer Motor power: 3kW speed: 0-2850 rpm, Panasonic inverter, wire cutting double shear homogeneous machine Germany Japan 9 Mechanical seal
Adopt Bogeman four-sided all-gold mechanical seal(with water)
Cyclic cooling, cooling and homogenization machine synchronization)
Jiasheng.
10 Outlet Valve
Top bottom valve, plate and bottom of pan ZhiTong GMPSFI standard 11 Temperature Display
Thermoresistor thermometer(less than or equal to 140 degrees) Japan 12 External circulation pipe
Three-way setting(loop and feed) material: SUS304 ZhiTong Electric control cabinet Material: Stainless steel cabinet, instrument, button, electrical components, etc. Lift system Hydraulic lifting method: power 1.1 KW, blade pump,
Standard for solenoid valve, overflow valve, one-way valve, etc..
Standard Configuration for Home, Limit Switches, etc.. ZhiTong Dumping system
Manual shake, the pot is tilted 90 degrees to the ground.
ZhiTong vacuum pump
Water ring type 2BV type vacuum pump, power 0.81 KW with stainless steel buffer tankShandong Zibo The solenoid valve is connected to tap water. If the negative pressure is served centrally by a vacuum machine, the machine requires a negative pressure of 1M.
Other Accessories and Tools Name and number of special tools and vulnerable parts provided ZhiTong random

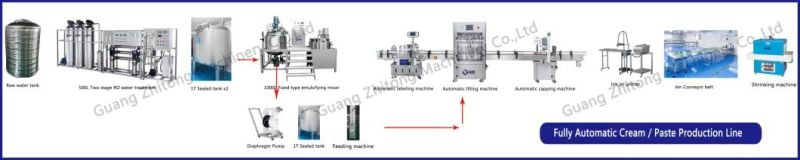

This is a production line
If you have any problems,please feel free to contact us.
