• Model NO.：SPS20-3000
• Temperature：300 Degree Centigrade
• Pressure：35 MPa
• Intensity of Sound：>60 W,Cm2
• Material of Probe：Titanium Alloy
• Generator：Digital Type
• Transport Package：Wooden Case
• Trademark：SP
• Origin：China
• HS Code：8543709990
• Production Capacity：200pieces,Month

Basic Info.

Model NO. SPS20-3000 Temperature 300 Degree Centigrade Pressure 35 MPa Intensity of Sound >60 W/Cm2 Material of Probe Titanium Alloy Generator Digital Type Transport Package Wooden Case Trademark SP Origin China HS Code 8543709990 Production Capacity 200pieces/Month

Product Description

Description:
The ultrasonic homogenization treatment device utilizes the local high temperature, high pressure, strong shock wave and micro jet generated by the cavitation effect of the ultrasonic wave to promote the strong interaction between the particles, increase the chemical reaction rate, shorten the reaction time, and improve the reaction selectivity.Moreover, it can excite chemical reactions that cannot occur in the absence of ultrasonic waves.



Application Field:
1)Ultrasonic treatment of chemical extraction, biodiesel production, organic synthesis, treatment of microorganisms, degradation of toxic organic pollutants, chemical reaction rate and yield, catalytic efficiency of catalysts, biodegradation treatment, ultrasonic anti-scaling, biological cell comminution, dispersion and coagulation A local small environment that is very beneficial to the reaction process can greatly increase the reaction rate and reduce the reaction conditions

2)Comparison of effects in various application areas

Application field	Effect and Impact
Chinese medicine extraction	Adding ultrasound equipment can increase the leaching rate by 30-50%
Ballast water treatment	Cooperate with ultraviolet light to assist in killing algae
Food sterilization	Adding an ultrasound system to the original process can reduce colony count by 30%
Emulsification	Instead of high shear emulsification, emulsified particle size 1um
High pressure high temperature container cleaning	Thoroughly solve the problem of filter, silt, blockage, etc.

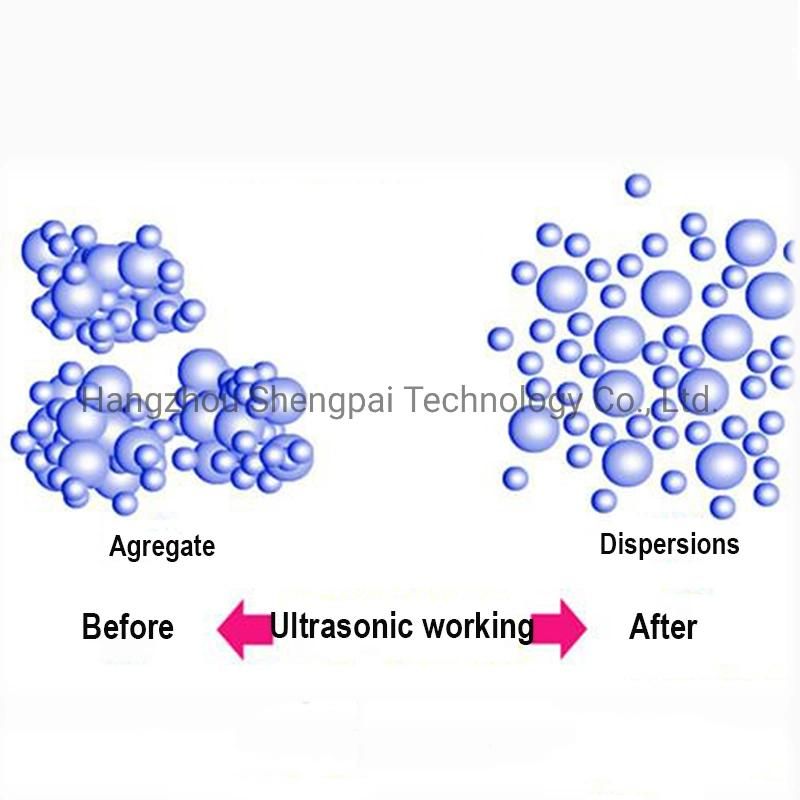

Fine particle dispersion	Fine particles agglomerated in the dispersion
Biodiesel production	Adding this ultrasound system to the original device can increase the original output by about 30%.
Oil industry application	Crude oil dehydration, crude oil demulsification
Biochemistry	Cell disruption

Parameters:

Model	SPS20-500S	SPS20-1000S	SPS20-1000	SPS20-2000	SPS20-3000	SPS20-3000Z
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity (L/H)	0.5-2.0	1.0-4.0	5.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type	Digital type

Performance advantages:
Adopt intelligent control technology to achieve stable amplitude output of ultrasonic amplitude, ensuring uniform and stable cavitation effectAdopt automatic frequency matching mode to ensure that the ultrasonic transducer works at the best time every time.The system has two working modes, continuous and intermittent. The system can set the ultrasonic working time independently and facilitate the experimental analysis.The system uses a focused design,that have high energy density, which significantly improves the efficiency of the experiment.The system has a variety of protection mechanisms to ensure stable operation and long life.The system uses a 5V fan,that have high safety factor.






FAQ:
1. Do you have it in stock?
We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers' different requirements.

2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object, send it to us or send detail pictures.

3.How long do you make the order product?
Common products for 7days, big qty and none standard products for 20days.

4. Do you have operating manual?
Of course, we will put it with the goods together.

5. How about the quality?
We have export to many other customers from all over the world, the feed back is good,quality is the first of our company.

6. Could you do OEM?
Yes, of course. We can produce according customers' requirement, just send us your requirements and design of drawing and sample.

7. Could we as your agent?
Of course. We are looking for sole agent in Country who have the willing to cooperate with us for long business term.

8. Payment:100%T/T in advance for small order. 70%T/T in advance as deposit, 30%T/T paid before shipment

9. Delivery?
1-2 units we could send by EXPRESS(DHL, UPS, FEDEX, TNT, EMS), heavy weight more than 50kg,we suggest to use sea freight LCL or by air.

10. Warranty:
One years Warranty with none human damage. After warranty time, factory will repair fix it or send the new parts on cost price. We can produce according customers'requirements, OEM is available, pls send me inquiry for quotations.
