• Model NO.：YZYX10WK
• Size：1620*580*1165mm
• Capacity：3.5 Ton Per 24 Hours
• Applicable Oil Plants：Peanut, Sunflower Seed, Cotton Seed, Flaxseed, etc
• Transport Package：Solid Wooden Box
• Specification：SGS, CQC, ISO, BV
• Trademark：Guangxin
• Origin：Sichuan, China
• HS Code：8479200000
• Production Capacity：600PCS Per Month

Basic Info.

Model NO. YZYX10WK Size 1620*580*1165mm Capacity 3.5 Ton Per 24 Hours Applicable Oil Plants Peanut, Sunflower Seed, Cotton Seed, Flaxseed, etc Transport Package Solid Wooden Box Specification SGS, CQC, ISO, BV Trademark Guangxin Origin Sichuan, China HS Code 8479200000 Production Capacity 600PCS Per Month

Product Description

Product Description
YZYX10WK is a single screw oil press with temperature control function.

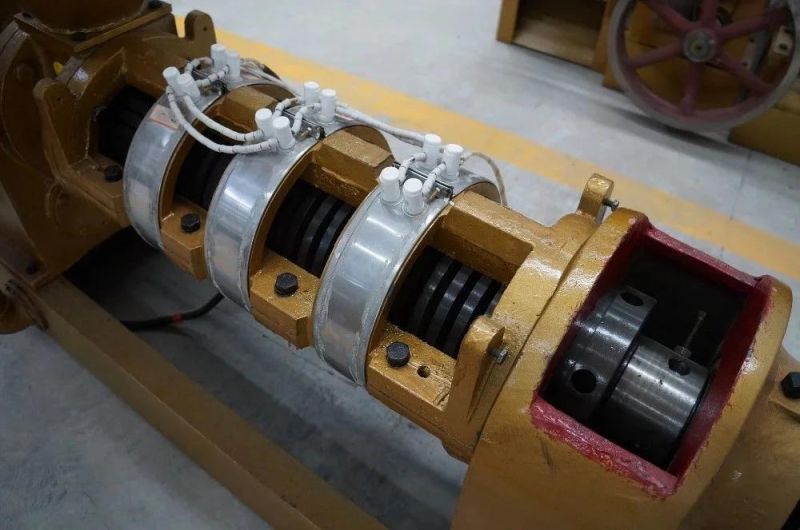

With the electric heating system, the press cage could  raise temperature fastly to the working status, shorten the preparation time as traditional oil press.




Machine Characteristics
A. With heater, auto heat the press cage before formal working. Replaced the old way.

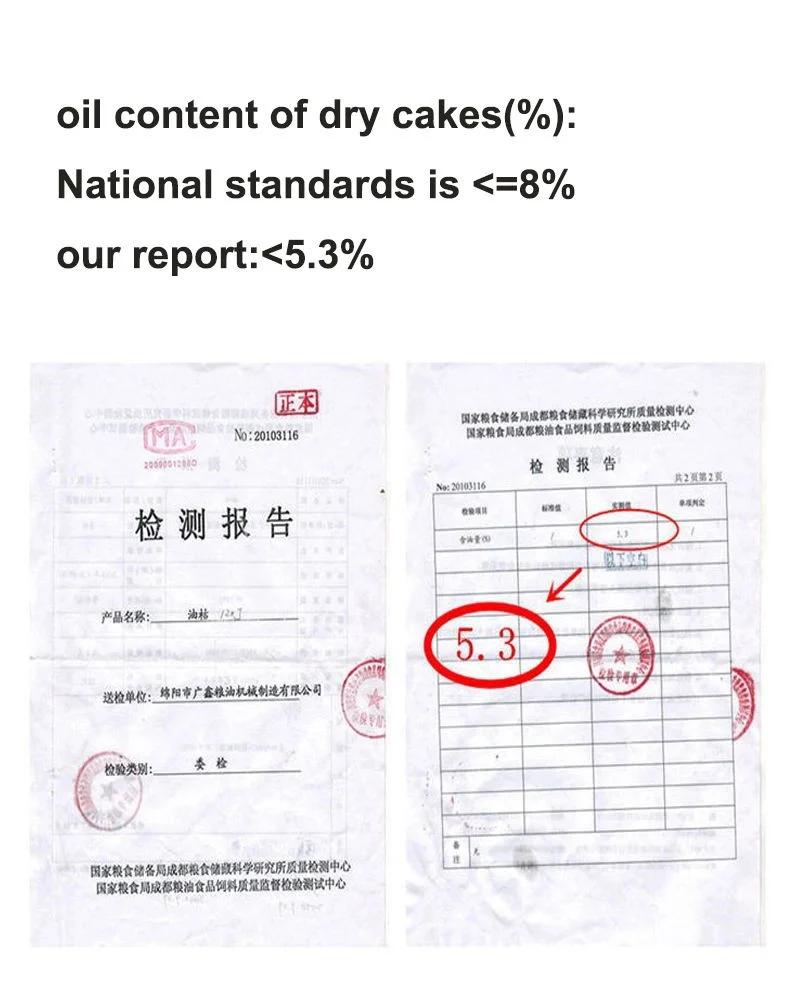

B. Day capacity is 3.5 ton/24h, oil content of residue cake is ≤ 8%.
C. Small land using. Small size requires small space to run.
Product Name

Product Name	medium easy operating peanut oil extruder
Model	YZYX10WK
Processing capacity (t/24h)	3.5
Oil content of dry cakes (%)	≤8
Squeezing power (KW)	7.5-11WK
Temperature control power(KW)	2.65
Measurement (mm)	1620×580×1165
Spiral axes rotate speed (r/min)	26~36
Weight (KG)	570

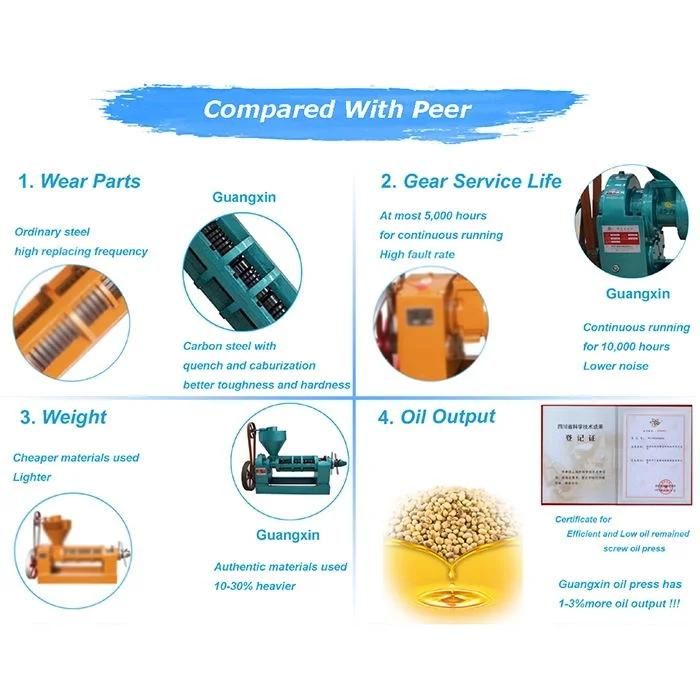

Advantages

1. High efficiency!! Residual oil of the cake is less than 7.8%
2. Low cost!! Our machine have more favorable price compared with our competitors
3. Easy operation!! Our machines are easy to be operated, we also provide thoroughly operation manual in English and Chinese for your reference.

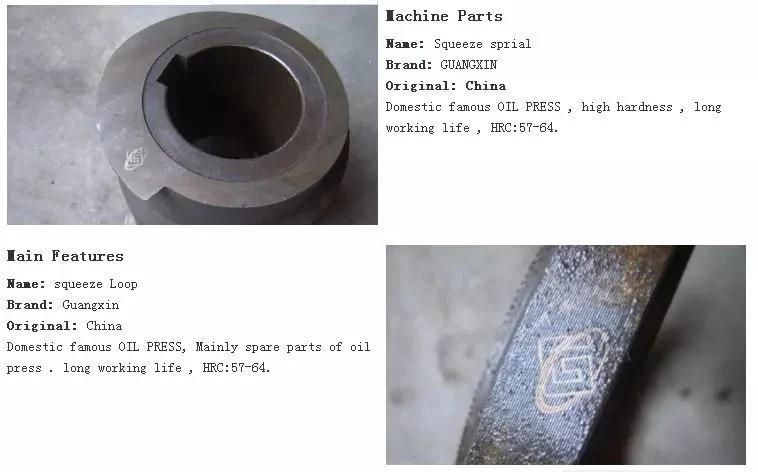

4. Long durability!! Squeezing loop and squeezing spiral are conducted heat treatment  as carburizing and quenching.The lifetime of our machines reach over 10 years, plus, we produce almost all the parts of the machines in our own plant, so the wearing parts and spare parts are available all year round, which solve your after-service concerns.
5. We are a manufacturer and also with more than 10 years export experiences, we understand the machine, and we understand the export process, we can provide you the best machines as well as the best service!

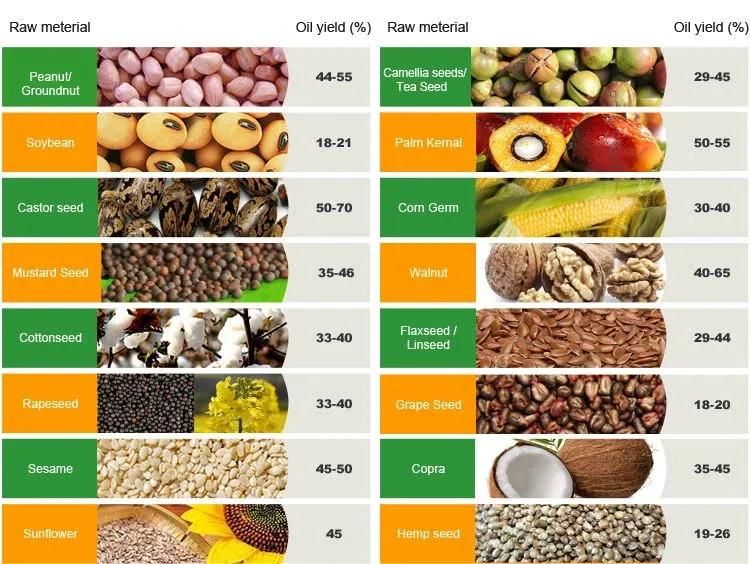

Application range:
Guangxin Brand spiral oil press made by our company is suitable for squeezing many kinds of vegetable oil, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc.


Quality Standard:
Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.

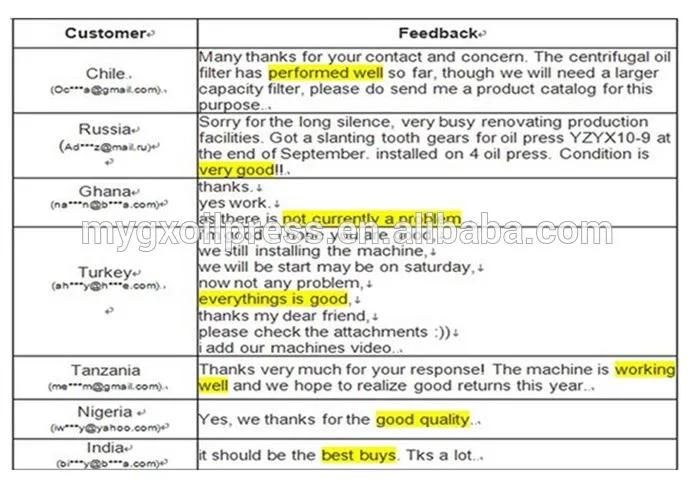

Co-operating customers' feedback:
It has advanced design, convenient operation, high output, strong compatibility and high efficiency. The series products combine both refined traditional technology and scientific research, so that the products accord with marketing request and users' benefit. The products have been establishing a good reputation in China and around the world.


Warranty terms:
A. Free replacement of accessories in 6 months from the date of purchasing.
B. Free replacement of main body in 12 months from the date of purchasing.

After-sale service:
A. We supply spare parts all year around at factory cost.
B. We afford technical solutions for buyers at any time.

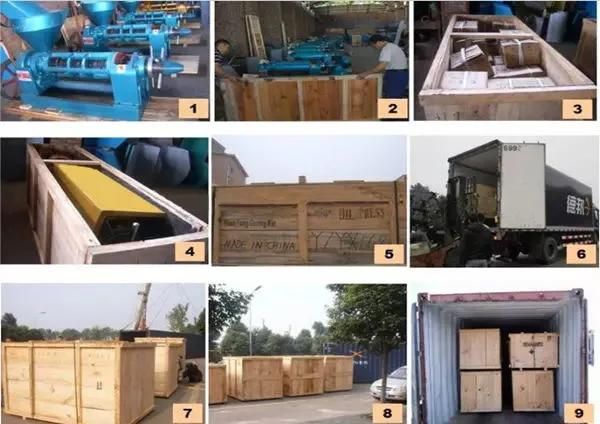

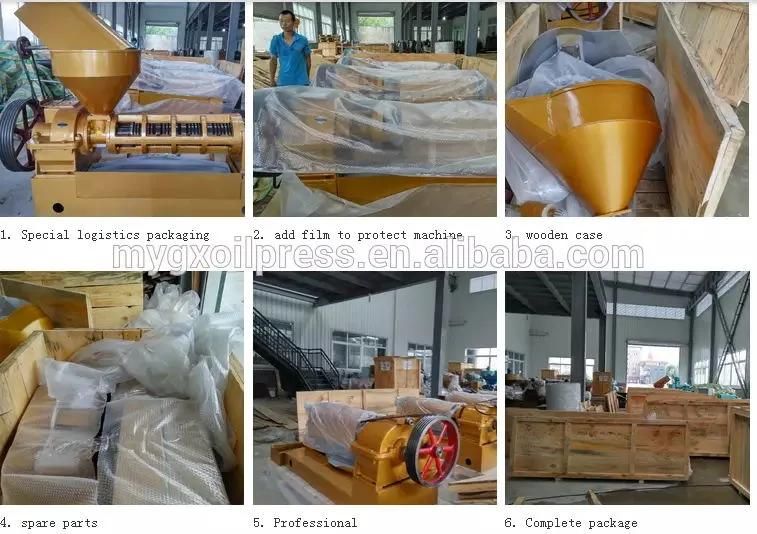

Packing and Delivery
