• Model NO.：6Y series
• Condition：New
• Customized：Customized
• Capacity：15-150kg,h
• Power：1.5-3KW
• Max pressure：60MPa
• Transport Package：Wooden Cased by Sea
• Specification：Hydraulic
• Trademark：VIC
• Origin：Henan
• Production Capacity：500 Sets, Month

Basic Info.

Model NO. 6Y series Condition New Customized Customized Capacity 15-150kg/h Power 1.5-3KW Max pressure 60MPa Transport Package Wooden Cased by Sea Specification Hydraulic Trademark VIC Origin Henan Production Capacity 500 Sets/ Month

Product Description

Totally Cold pressing machine for cocoa butter making

1.Application:
The totally olive oil cold pressing machine has been launched after improved by introduced Korean technology and won high praise from users. With lower power consumption and noise, it can be fed with 1-7kg of material every time and completely squeeze in 4-8min. The final oil is good edible oil.

It can be applied for oilseeds such as sesames, walnuts and pine nuts, coconut, copra and cocoaetc. etc.

This machine also can be used to extract juice from traditional Chinese medicine herbs and remove oil from chemical products.
Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 150KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier oil .

2. Technical data:

Model	6Y-180	6Y-230	6Y-260	6Y-300
Process capacity	15-30kg/h	50-80kg/h	80-100kg/h	100-150kg/h
Power	1.5kw(380V/50Hz)	1. 5kw(380V/50Hz)	2.2kw(380V/50Hz)	3kw(380V/50Hz)
Heating collar power	1kw	1kw	1kw	2kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	2600KN	3000KN
Max pressure in working	60MPa	60MPa	60MPa	60MPa
Overall size	800X60X1100mm	900X750X1400mm	930X900X1620mm	1050X1000X2000mm
Weight	530kg	880kg	1000kg	1220kg

3. More pictures

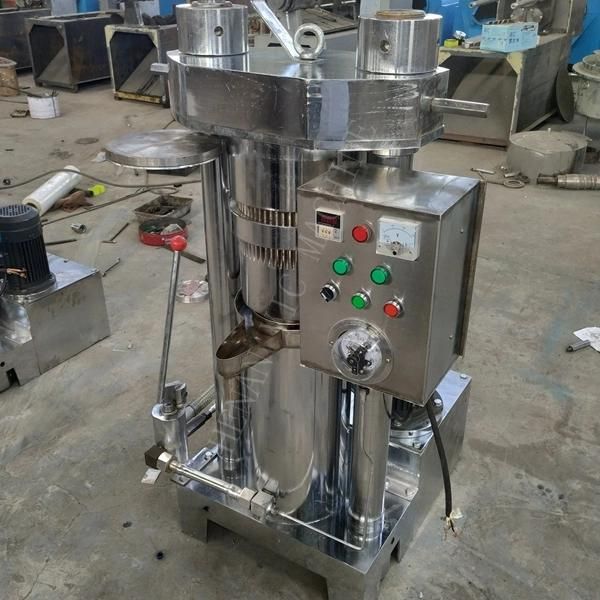

Contral box with double scale pressure

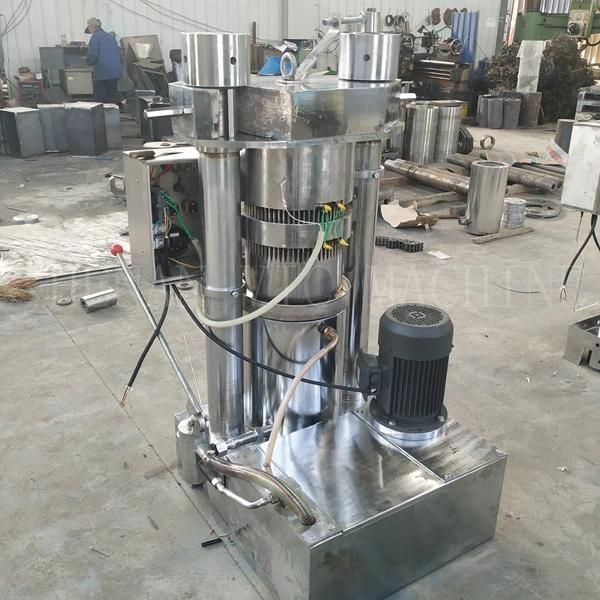

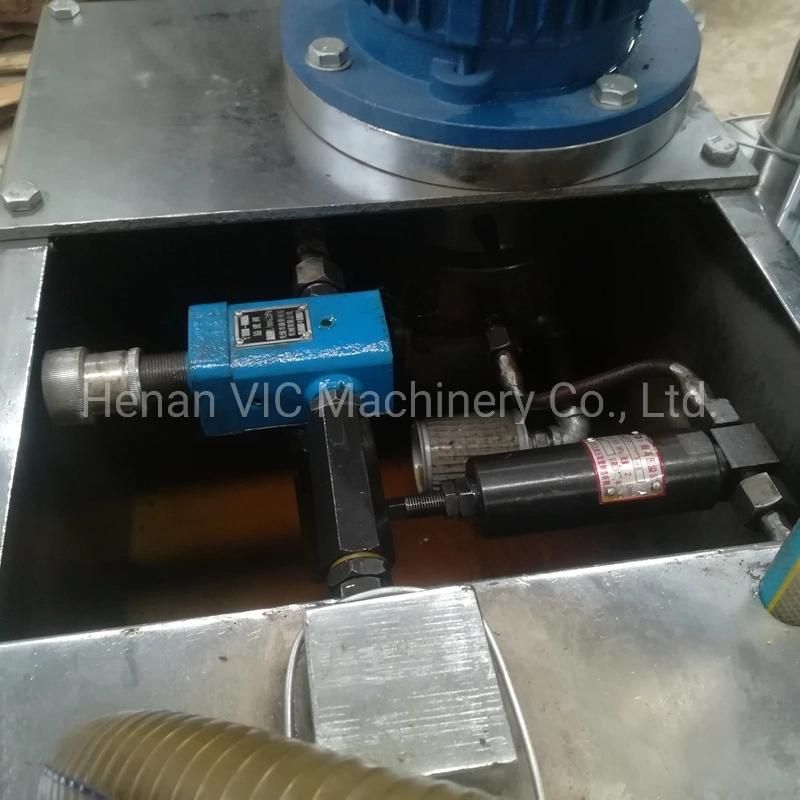

Hydraulic systerm

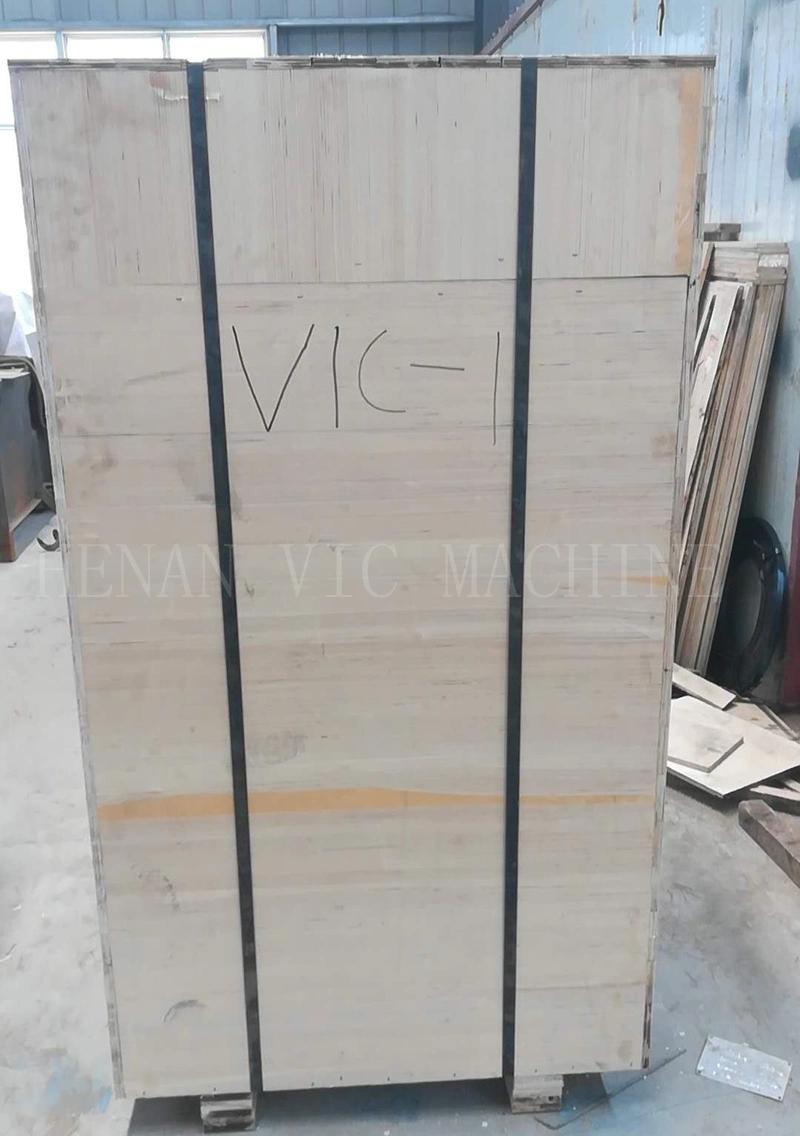

Package

Fianal oil

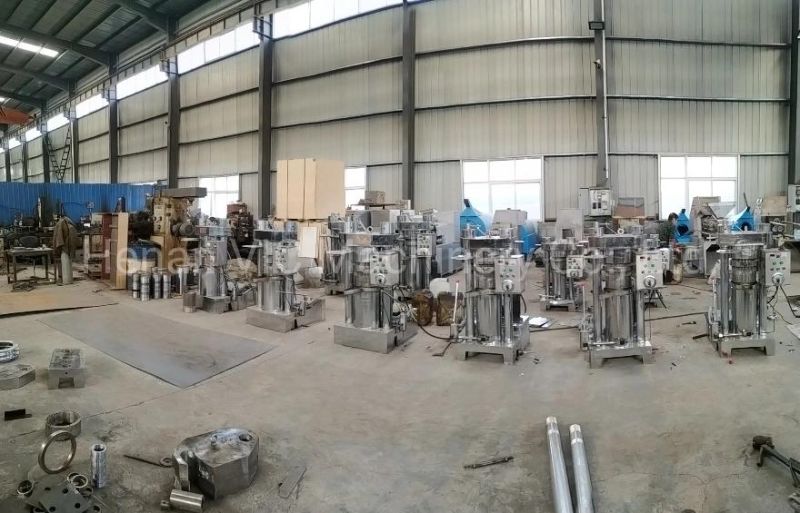

Factory corner

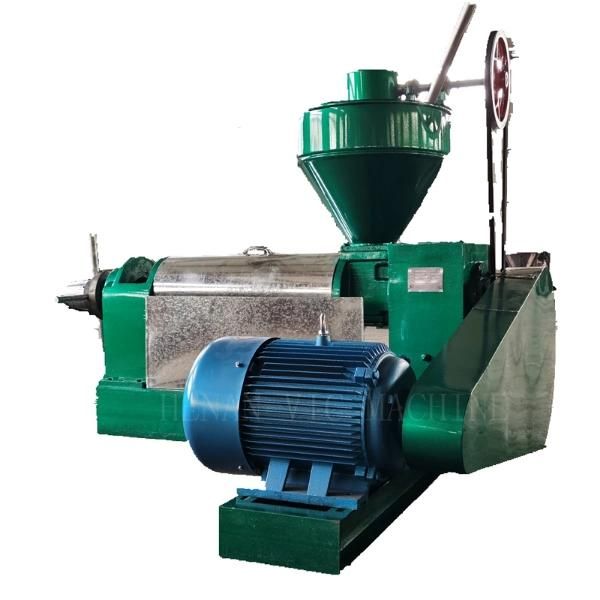

Other screw oil press 6YL series

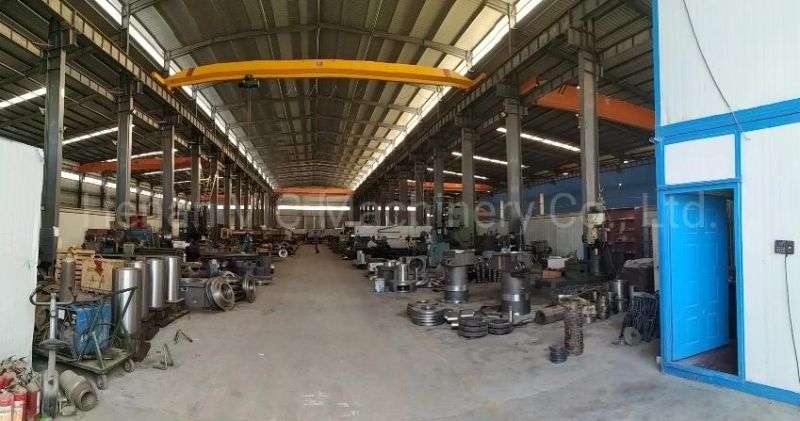

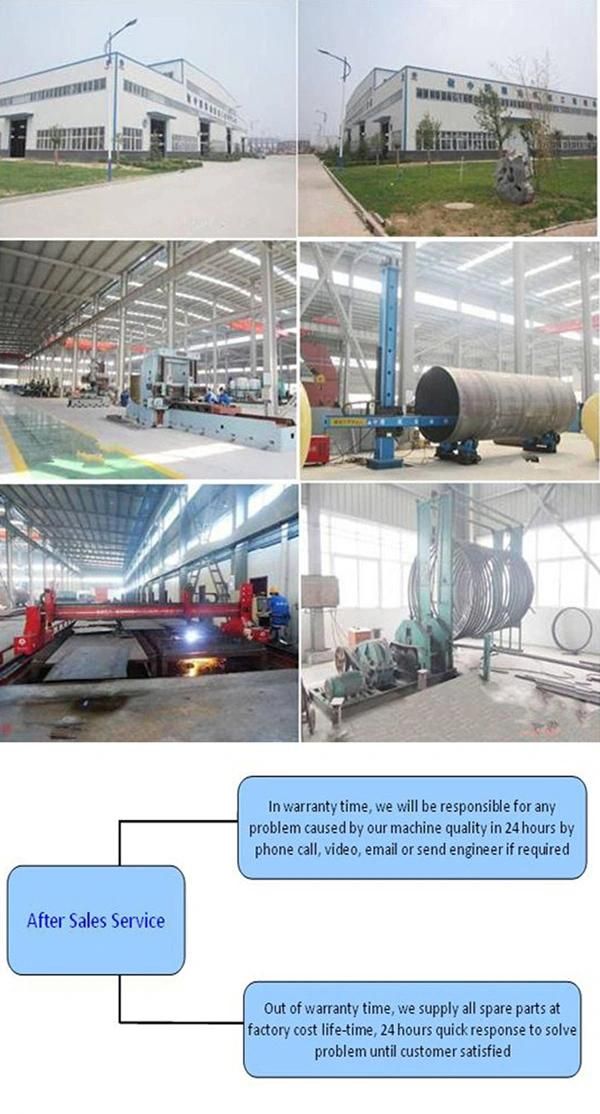

4. Our factory
