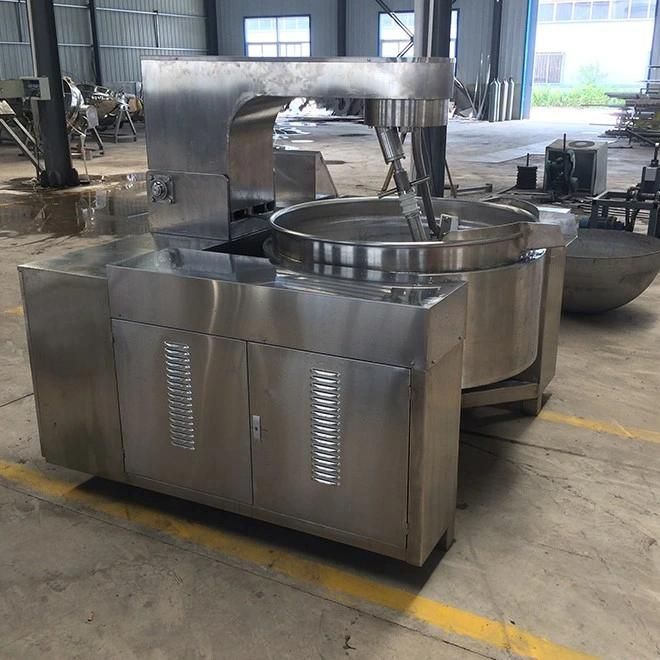

Stainless Steel Jam Paste Ketchup Jacketed Kettle with Agitator
Shanghai Kaiquan Machine Valve Co., Ltd.- Processing Material：Animal Raw Materials, Forest Products, Special Agricultural Products, Garden Products, Agronomic Products, Natural Ingredients
- Application：Pet Food, Chocolate, Ice Cream, Vegetable, Fruit, Dairy, Beverage
- Customized：Customized
- Certification：CE, MET, CSA, UL, SA8000, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
Base Info
- Model NO.：KQ
- Name and Description：Stainless Steel Jam Paste Ketchup Jacketed Kettle
- Stainless Steel Material：AISI304 , 316
- Type：Full Automatic
- Usage：for Cooking Soup, Jam, Juice, Meat
- Capacity：300L~1000L
- Mixer：with Mixer, Agitator, Scrapper Mixer
- Motor Brand：ABB ,Siemens
- Lifting Mixer：Automatic
- Tilting Bowl：Automatic
- Certificate：ISO,Ce
- Factory：Shanghai
- Titling：Yes
- Packing：Wooden Box
- Delivery：15 Days After Get Your Advance Payment .
- Working Life：10 Years or More .
- Transport Package：Standard Export Wooden Box
- Specification：ISO
- Trademark：KQ
- Origin：Shanghai China
- HS Code：8479820090
- Production Capacity：300L to 1000L
Description
.Technical parameters-- stainless steel steam jacketed kettle for jam making : Model 100 200 300 400 Caliber(mm) Φ700 Φ800 Φ900 Φ1000 Depth of Pot(mm) 450 530 630 680 Heating area(m2) 0.58 1.12 1.42 1.75 Boiling time(min) 8 11 14 18 Interface size Steam pipe 3/4" 1" Condensate pipe 3/4" 1" Working pressure ≤0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers' requirement) Stirring speed 36 r/min(can be adapted according to customers' requirement) Stirring power(Kw) 0.55 0.75 1.1 1.1 Scraping edge stirring power(Kw) 0.75 1.1 1.5 1.5
Stainless Steel Jam Paste Ketchup Jacketed Kettle With Agitator .
Stainless Steel Jam Paste Ketchup Jacketed Kettle With Agitator .
