Clj High Quality Rice Whitening Machine Mnsl Vertical Emery Roller Rice Whitener
HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.- After-sales Service：Online Service
- Warranty：1 Year
- Type：Rice Mill
- Application：All
- Voltage：380V
- Appearance：Vertical
Base Info
- Model NO.：MNSL9000A
- Press Materials：Rice
- Condition：New
- Customized：Non-Customized
- Weight：2780kg
- Capacity：9-12t,H
- Power：75-90 Kw
- Transport Package：Wooden Case
- Specification：2000x1600x2300
- Trademark：CLJ
- Origin：China
- HS Code：84378000
- Production Capacity：4000 Units ,Year
Description
Basic Info.
Model NO. MNSL9000A Press Materials Rice Condition New Customized Non-Customized Weight 2780kg Capacity 9-12t/H Power 75-90 Kw Transport Package Wooden Case Specification 2000x1600x2300 Trademark CLJ Origin China HS Code 84378000 Production Capacity 4000 Units /YearProduct Description

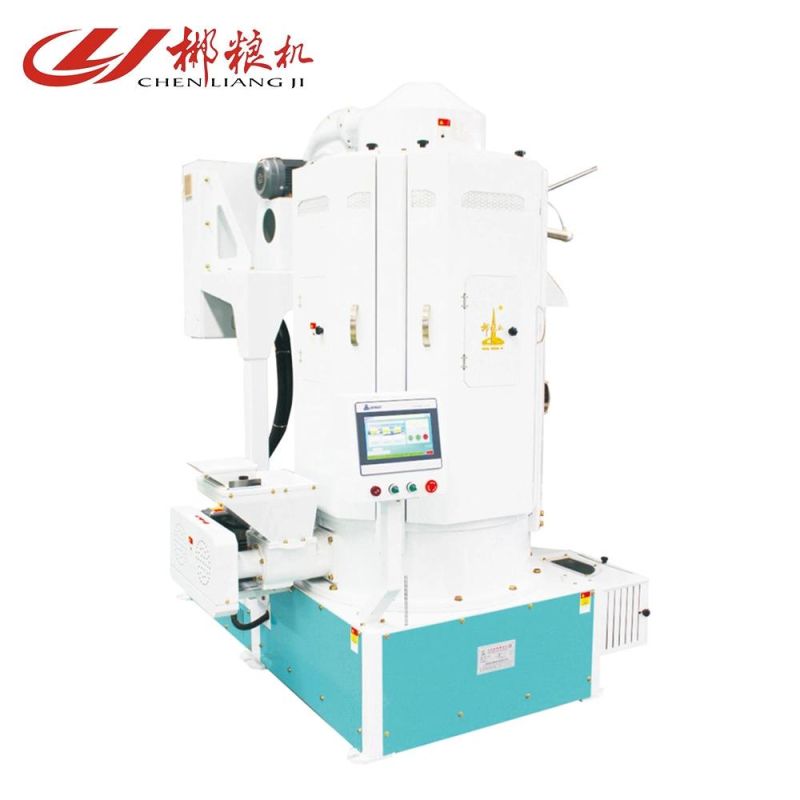

MNSL9000 Vertical Emery Roller Rice Whitener is the latest milling equipment specially designed for millers with a daily processing capacity of 200-250 tonnes. It can satisfy various customer needs by processing brown rice, regular paddy or fine paddy to different milling degrees. As one of the most advanced rice millers in China, the equipment can produce with 2 machines connected or with 3 of them linked.
- Capacity: fit for millers with a capacity of 200-250 T/D
- A vertical input/output design to ensure that an elevator can be shared when machines connected;
- Screw conveyors facilitate feeding with efficiency;
- Even milling and whitening, low bran percentages, small rates of broken kernels and low power consumption
- Easy operation and maintenance;
- Interior air-jetting to guarantee low rice temperature and high efficiency of bran removal;
- Emery screen and blade provided for a longer product duration upon request.
| Model | MNSL9000A |
| Capacity | 9-12T/H |
| Power | Main Motor 75Kw /90Kw Feeder Screw Mo tor 1.5Kw-4P Air-blower Motor 3Kw-2P |
| Air Suction Volume | Air Volume 55m3/min Static Pressure 120-150mm H2o 220mm Aspiration Channel Diameter Note: Values measured with no load |
| Interior Resistance | 200-250mmH2o |
| Cyclone Model | Æ550 Type 60 Backspin Twin Pump Æ550 |
| Air-blower Configuration | Suggested configuration Single: 9-26-4.5#, Motor 11KW Twin: 6-30-6A Engine Motor 15KW Triple: 5-60-6A Motor 30 KW |
| Weight (Without Main Motor ) | 1700KG |
| (Length x Width x Height) (With Main Motor) | 2000×1600×2300 |
