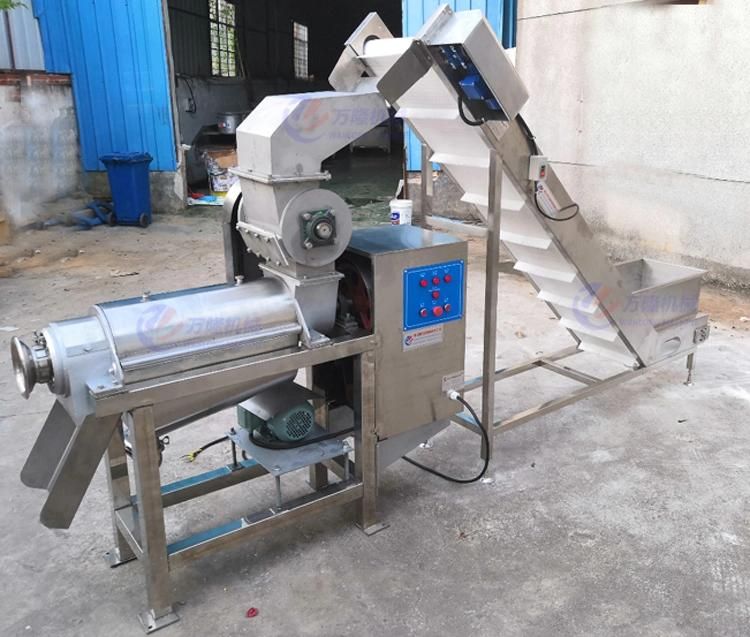

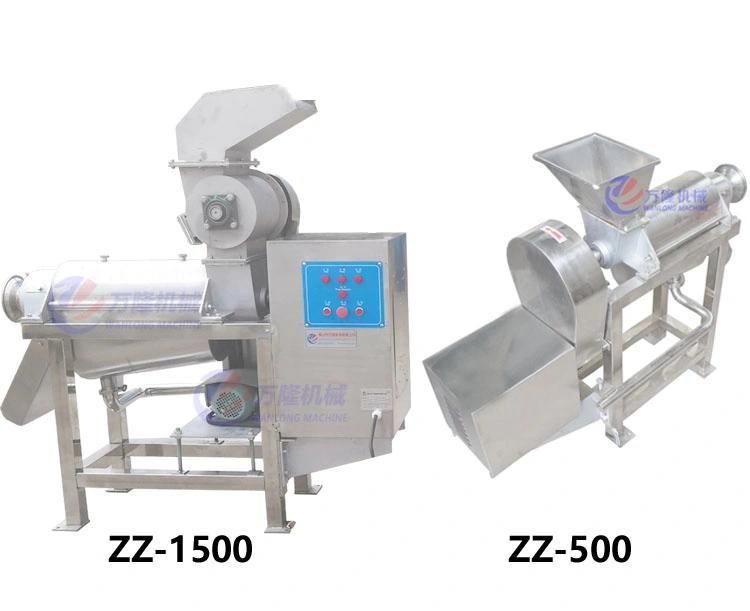

Professional Industrial Screw Press Line Grape Orange Apple Kiwi Juicer with Crusher
Foshan Wanlong Machinery Co., Ltd.- After-sales Service：Online Severice
- Warranty：18 Months
- Type：Juicer
- Voltage：380V
- Power：7.5kw
- Customized：Non-Customized
Base Info
- Name：Screw Juicer
- Output：1500kg , H
- Aperture of Filter Screen：0.6mm
- Spindle Speed：400rpm
- Helix Diameter：Φ 175mm
- Equipment Weight：246kg
- Transport Package：Standard Export Package
- Specification：1400*550*1380mm
- Trademark：WANLONG
- Origin：China
- HS Code：8438600000
- Production Capacity：211 Sets
Description
Purpose and scope of application:
1. Used for pressing pineapple, apple, pear, mulberry, grape, orange, tomato, ginger, garlic, celery and other
vegetables.
2. Screw push extrusion;
3. Complete the process of juicing and deslagging of berries, nuts and vegetables automatically.

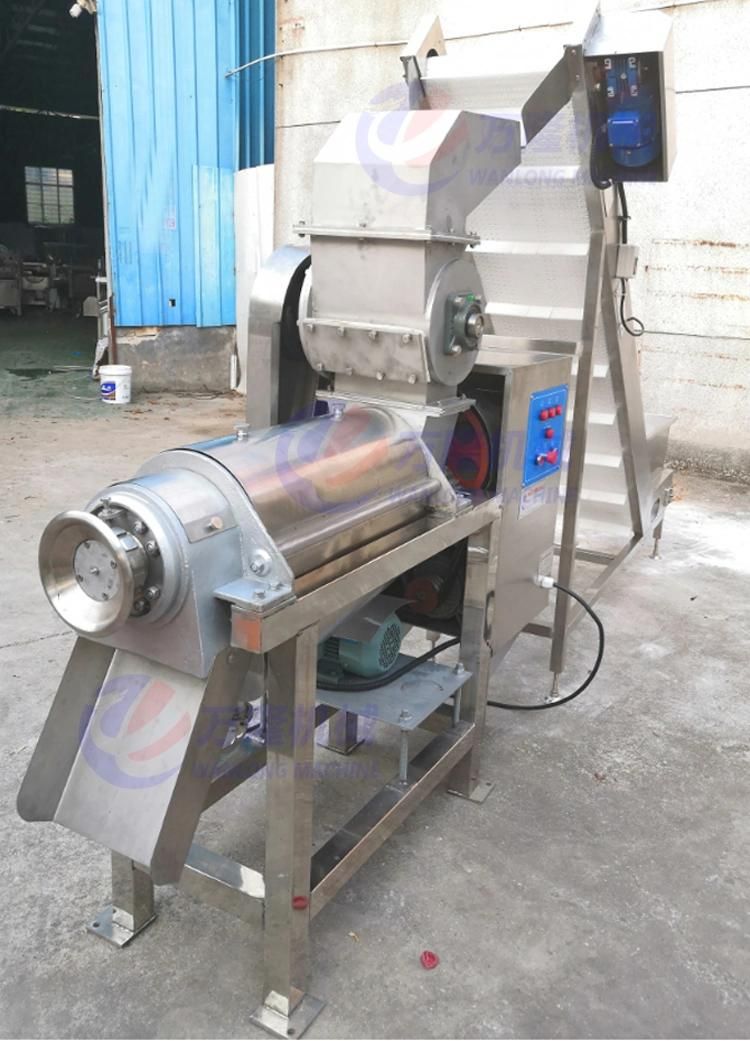

The main component of the equipment is that the screw gradually increases the bottom diameter along the
direction of the slag outlet, while the screw pitch gradually decreases. When the material is pushed by the
screw, due to the reduction of the volume of the screw cavity, the material is pressed. The rotation direction
of the screw spindle is clockwise from the feed hopper to the slag groove.

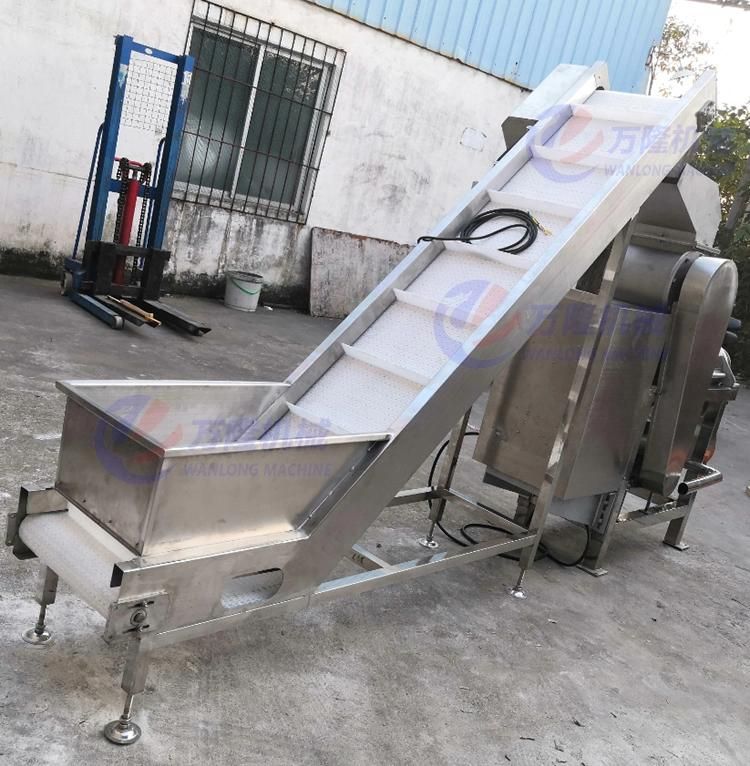

The raw material is added into the feeding hopper and pressed under the push of the screw. The squeezed
juice flows into the juice container at the bottom through the filter screen, while the waste material is
discharged through the annular gap formed between the screw and the pressure regulating conical part.
The size of the gap can be adjusted by the movement of the pressure regulating head along the axial direction.
