• Model NO.：U-10WM
• Top Cover：Matt
• Top Thickness：0.3mm
• Hardness：90shorea
• Pull at 1% Elongation：4n,mm
• Minimum Diameter：8
• Working Temperature：-20,+80
• Roller Support：Roller,Plate
• Quality：Food Grade
• Characteristic：Lateral Stability
• Performance：Oil and Fat Resistance
• Transport Package：PE Film+Wear-Resistant Material
• Specification：material roll, open end or endless
• Trademark：TGRBELT
• Origin：China
• HS Code：5910000000
• Production Capacity：50000sqm,Monthly

TypeU-10WMBelt thickness1.0mmColorwhiteSurfacemattHardness top90 shoreWeight1.2kg/m²0.246 lbs/ft²Force at 1% elongation4N/mm22.396 lbs/inTemperature range-20 to 80 ºC-4 to 176 ºFMin.pulley diameter8mm0.315 inStandard roll belt width2000mm78.74 inMax.roll belt width3000mm181.11 in
Tiger Partners

FAQ:What's the advantage?
Expert of belting solutions for over 10 year!
QUALITY ASSURANCE
Guarantee that the commodity hereof complies in all respects with the quality and specification stipulated in the contract.
DELIVERY GUARANTEE
Ship the goods within the shipment time from the port of shipment to the destination in the contract.
FACTORY PRICE
Prices refer to the cost of raw materials directly from factory.
TEAM OF PROFESSIONALS
Offer experienced customer service and technical support including belts selection, calculation, application and after-sale service.
FABRICATION WORKSHOP
Provide belts cutting, jointing, as well as belt perforations, belt sealed, belt coated with rubber and sponge, belt guides, etc.
SERVICE NETWORK
Set up office, branches in Foshan, Suzhou, Wenzhou, Hongkong, etc, service locations for processing industrial belts in Foshan, Wuxi, Yongbo etc.

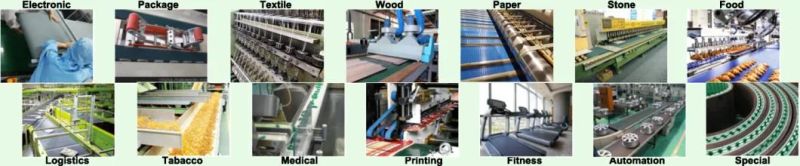

Application


  Payment terms

Terms	Bank charges	Remark
100% T/T advance payment	30-100USD	For new customers and regular customer of less than 10000USD order amount.
50% T/T advance payment and balance before shipping	60-200USD	Regular customers and new customer of 10000-20000USD order amount.
30% T/T advance payment and balance before shipping	60-200USD	Regular customers of over 20000USD order amount.
Western Union	15-40USD	Testing order or samples.
Moneygram	8-25USD	Testing order or samples.

About us
Key products

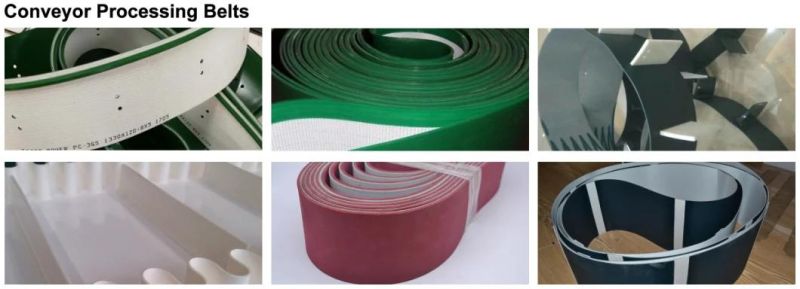

Light-duty conveyor fabric belts, flat power transmission belts, PU & rubber timing belts, high temperature PTFE belts, PU round belts & V belts, profiles & cleats
