Coffee Powder Production Line
Shanghai Genyond Technology Co., Ltd.- Processing Material：Special Agricultural Products
- Application：Coffee
- Customized：Customized
- Certification：CE, ISO9001
- Power Source：Gas
- Automatic Grade：Automatic
Base Info
- Material：SUS304
- Turn-Key Project：Yes
- Warranty：2 Years
- End Product：Grinded Coffee Powder
- Transport Package：Wooden Packing
- Specification：as customer capacity
- Trademark：GENYOND
- Origin：China
- HS Code：8419399090
- Production Capacity：500 Sets Per Year
Description

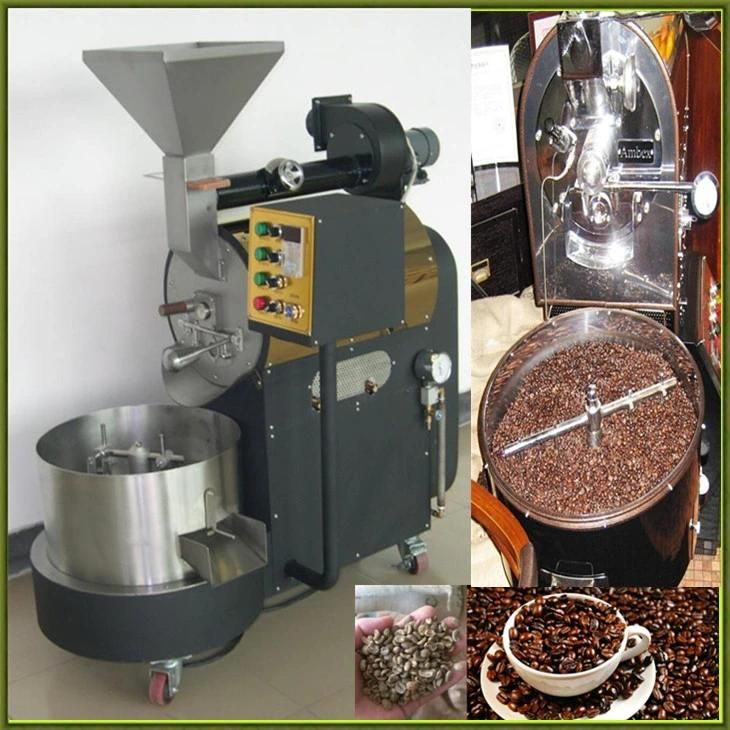

Coffee bean roasting machine
Working principle of drum coffee roaster
The material is fed from the feeding hopper, when the drum rotating, the screw moves in reversed direction to avoid the beans adhering to the inner wall of the drum.
when the drum rotating in reversed direction, the beans will be discharged. There is a cooling try in the outlet, which can help the roasted beans cool down quickly.
The material of the drum is good quality stainless steel, durable and easy to clean.
Feature of drum coffee roaster
1. Drum temperature can be adjusted via control panel for ease of operation.
2. Accurate temperature sensor with clear display.
3. Efficient cooling fan. Roast continuously.
4. Hot heat blast for fast roasting. Glass peep hole for monitoring.
5. Elegantly designed. Roaster has base with screw on rubber dampers for anchoring.
6. Easy operation.
7. Small volume. Advanced electric heating mode.
8. Shell made with 304 stainless steel plate. No rust or oxidation.
9. Temperature range is 0-300C degree. The normal baking temperature is 150C-200C degree .
10. Cooling tray with mixer arms.
11. Low noise during roasting. Smoke will be generated through exhausts hole, which can be
connected with metal pipe then pass to water for cooling and smoke abatement.
12. Perfect for home roasters and small retail environment.Easy to learn,use, simple operation.
13. Unique cooling system with protection device for electric shortage and intelligent circuit control panel. Fast cooling within three minutes.
14. The roasting and cooling are separate. Perfect for continuous operation.
15. Use minimal space. Ideal for coffee shops, homes, and small roasting factories. Roasted beans
can compare to those roasted by large-scale professional automated models. Ideal for beginnes
and even seasoned roasting professionals.
16.Continuous roasting without stopping for loading or unloading
17.Observing coffee baking condition anytime through heat window
18.Probe-type handle for sampling and monitoring baking corlor and degree anytime during roasting
19.Digital temperature controler with presise temprature controlling.
Setting desired temperature with warning alerts
20.Special burner nozzle, penetrating power and heat, even heat distribution, short baking time, high
gas utilization, saving energy
21.Independent cooling fan and agitator, high cooling speed, with residue filtered,keeping the perfect
roasting quality of coffee beans
22.With automatic ignition and combustion detection warning devices. Safe and convenient.
23.Convenient operation , simple maintenance , long service life
24.Stainless steel drum. Baking coffee evenly with beautiful shape
consumption
370W*2
3000W*1 750W*1
3000W*1 1500W*1
3000W*1 1500W*1
3000W*1 1500W*1

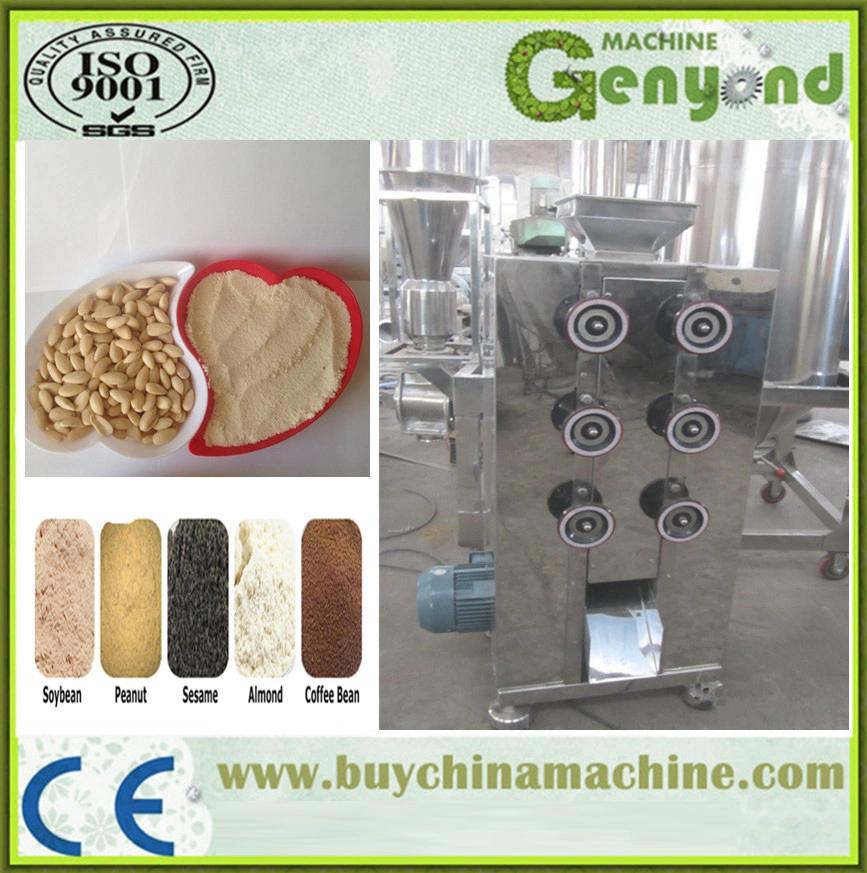

(2) Coffee bean grinding machine
Working Principle of coffee bean powder grinding machine
1. Oil material enters the roller area, through multiple squeezes between the passive roller and active roller to achieve the ideal crushing.
2. Adjust the rollers distance to get different grinding fineness.
3. The grinded powder drops directly to the collecting box

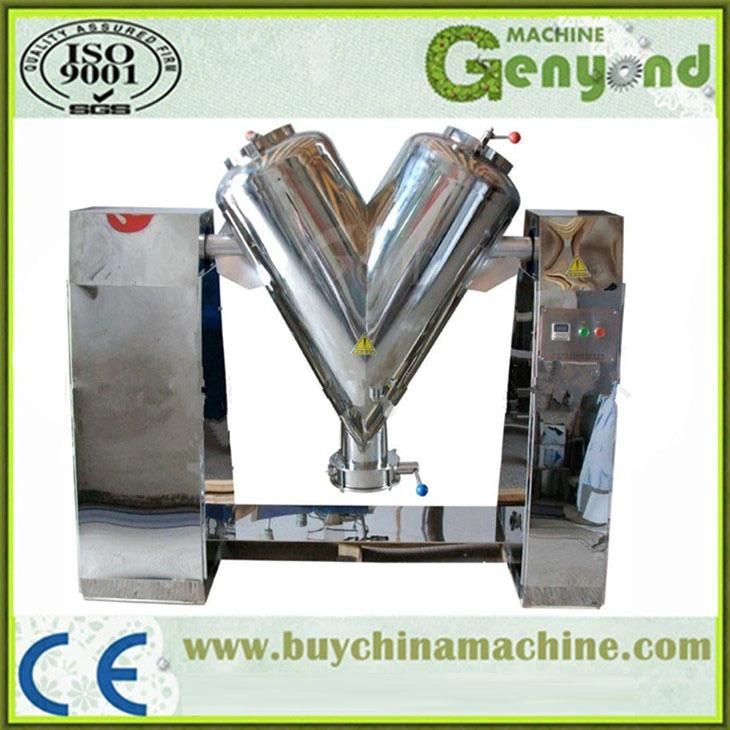

(3) powder mixer
1. the powder mixer is made of sus304 2. V type mixer
3. dry powder or granulator material 4. without dead angle
Main application: This machine is used for mixing of dry granulate material in pharmaceutical, foodstuff, chemical and other industries.
Working principle:
1) Featuring unique structure, high mixing function and uniform mixing
2) The mixing barrel is made of stainless steel with polished internal and external walls.
3) This machine has beautiful appearance, uniform mixing and wide application
Inner packing: plastic packing Outer packing: wooden case
(4) JYQ Vacuum Packing Machine
This machine is used for pumping vacuum and inert gases charging packing for particle, powder and liquid of meat, stewed food, dressing, preserves, grain, soybean products, chemistry and medicine. This packing prevents the products from oxidation, mildew, damp and extends the storage time of the products.
This machine vacuums (gas charges),seals and prints fonts at one time. The vacuum degree is controlled by potentiometer. The sealing temperature has five levels and reaches different temperature by adjusting transformer heating voltage. The heat sealing time is controlled by digital time relay which is not limited by the size of the vacuum chamber. According with the national food labeling regulation, this machine adopts labeling equipment which changes the words conveniently and prints clearly.
