Honey Extractor Machine Honey Processing Concentrating Equipment
Xinxiang Sanyuantang Machine Co., Ltd.- After-sales Service：Yes
- Warranty：12 Month
- Condition：New
- Customized：Non-Customized
- Voltage：Customized 3 Phase
- Composition：Filtration Equipment
Base Info
- Model NO.：SYT600
- Processing Material：Honey
- Process：Concentration and Dry
- Capacity：0.5t,Day and 1.5t,Day
- Material：304 Stainless Steel
- Transport Package：Wooden Case
- Specification：FM400, FM600
- Trademark：SANYUANTANG
- Origin：China
- HS Code：8419899090
- Production Capacity：0.5-1.5t,H
Description
Model
FM-600
FM-400
Production capacity
1.2-1.5t/8h
0.4-0.5t/8h
Machine dimension
1750*600*1660
1600*500*1555
Tank diameter
600mm
400mm
Tank height
600mm
600mm
The overall volume
140L
70L
Effective volume
120L
60L
Preheat tank power
6KW
Vacuum concentration tank power
9KW
A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)
Vacuum pump SK - 0.8 voltage 380 v power 1.5 KW
: preheating tank motor slowdown micromotor voltage 220v power 180w ratio 25 60r/min
Production capacity: 0.5 to 1.5 t per day
Concentrated temperature: 55 ºC or less
Vacuum: -0.092 Mpa or less
The maximum total power: 16Kw
Introduction of honey extractor machine honey processing concentrating equipment
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
Process of honey processing equipment:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling

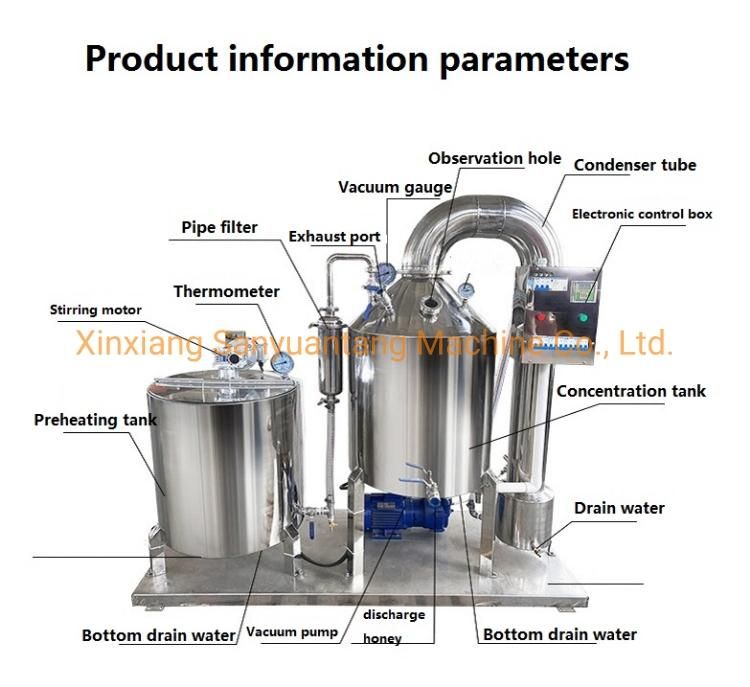

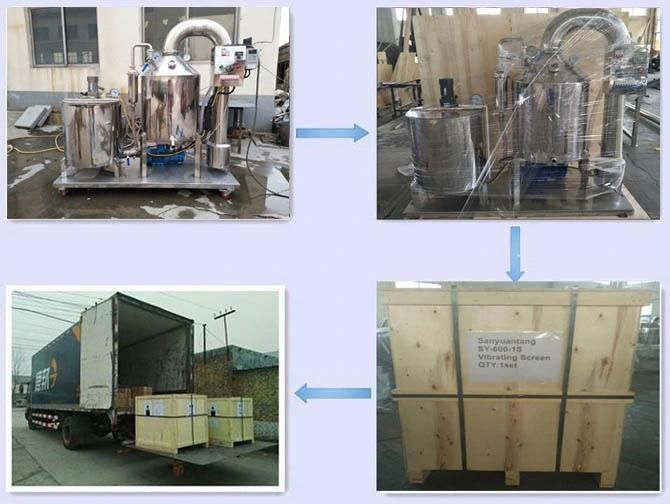

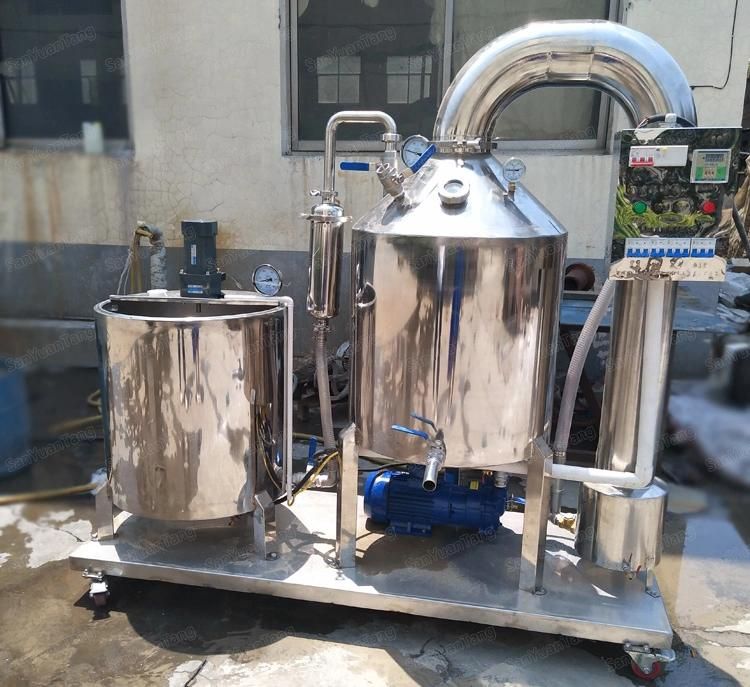

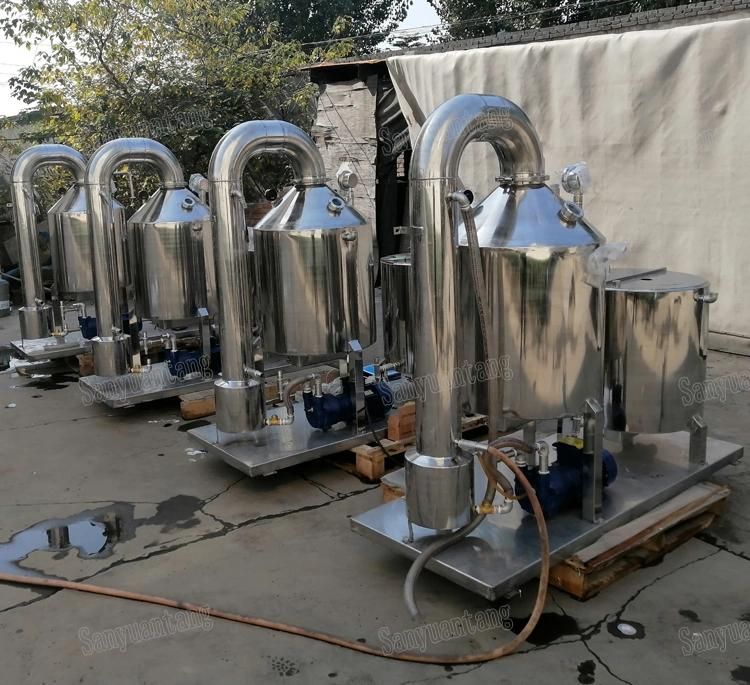

Photos of Vacuum Honey Processing Machine / Equipment
Why Choose Sanyuantang
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of "Customer Supreme"
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.
If you are interested in our Vacuum Honey extractor, please email us from the following aspects, then click the "send" button.
