• Model NO.：SYT400
• Capacity：0.5t,Day and 1.5t,Day
• Material：304 Stainless Steel
• Transport Package：Wooden Case
• Specification：SYT400, SYT600
• Trademark：SANYUANTANG
• Origin：China
• HS Code：8419899090
• Production Capacity：0.5-1.5t,H

9KW

A single heating tube (preheating tank is 6 kw ,and vacuum concentrator is 9 kw)

Vacuum pump SK - 0.8     voltage 380 v     power 1.5 KW

: preheating tank motor slowdown micromotor voltage 220v  power 180w ratio 25   60r/min

Production capacity:  0.5 to 1.5 t per day

Concentrated temperature: 50 ºC or less

Vacuum: 0.092 Mpa or less

The maximum total power: 16Kw

Introduction of Automatic honey extractors processing machine remove moisture
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.

Process of honey processing equipment:
The original honey → coarse filtration → Agitation, preheating → sterilization, melt crystallization nucleation → Fine filtration → low temperature, concentrated → filling

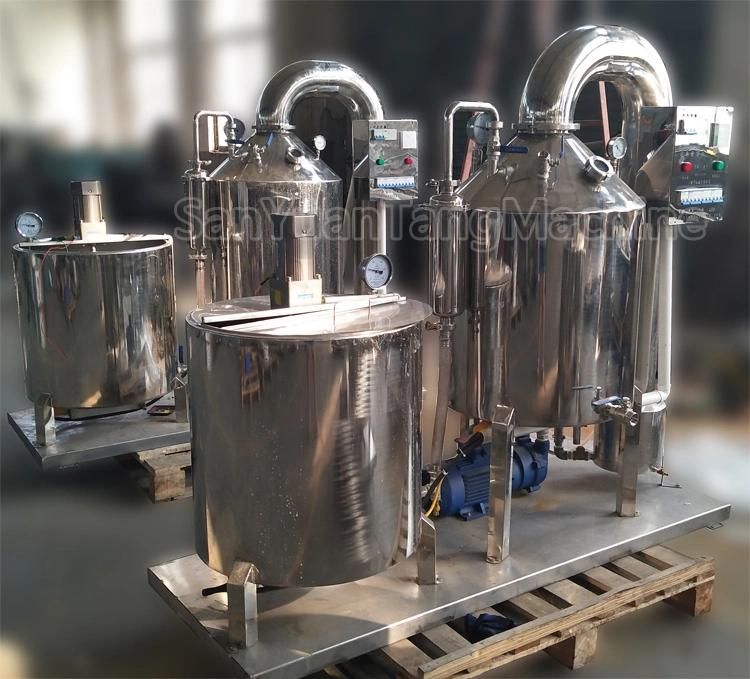

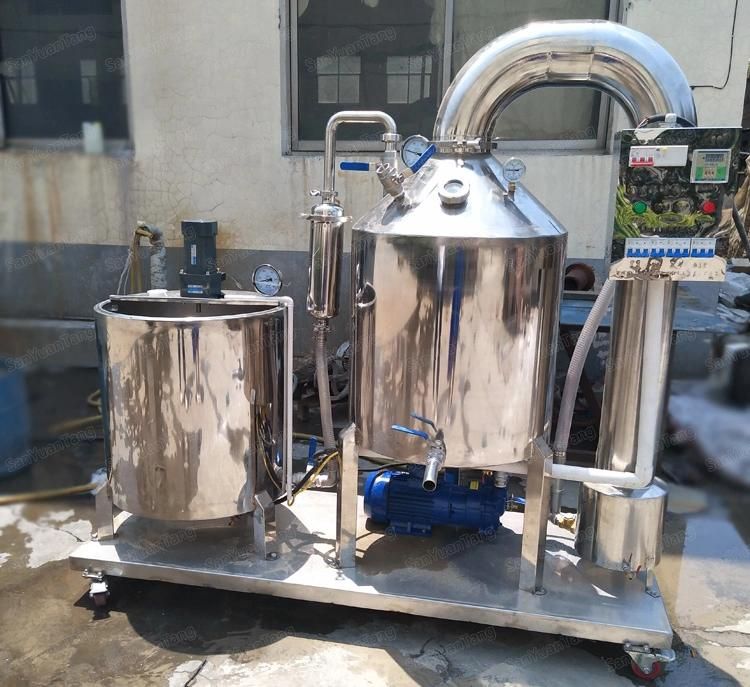

Photos of Vacuum Honey Processing Machine / Equipment


Why Choose Sanyuantang
1) International high quality certification product chain
2) Manufacturer, more reasonable price
3) Solid technical support and after-sales service
4) Uphold the principle of "Customer Supreme"
5) Exports to more than 20 countries and regions, good customers feedback
6) One-stop service, customized exclusive project feasibility report.
