• Model NO.：KQ-1000
• Application：Milk, Dairy, Milk, Juice, Beverage
• Customized：Accept
• Name and Descroption：CE Piston Stage Certificate Tea Drink Milk Cream Y
• Appications：Milk , Juice, Beverage, Butter, Honey, Cream
• Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：CE Certificate

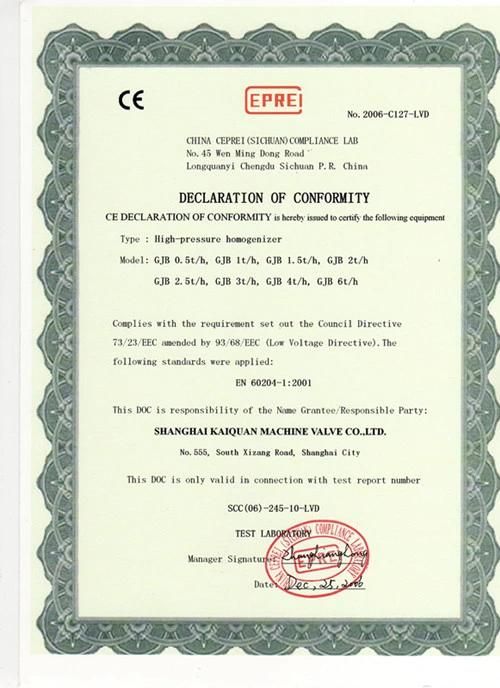

• Homogenizer Certificate：CE Certificate
• High Pressure Homogenizer：Customized Electricity Motor
• Motor Brand：Siemens ,ABB ,China Brand
• Voltage：380V50Hz3phase
• Spare Parts：Two Stage
• Homogenizer Working Life：More Than 10years
• Piston：3set
• Cooling：Ice Water
• MOQ：1set
• Packing：Wooden Box
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ-1000 Application Milk, Dairy, Milk, Juice, Beverage Customized Accept Name and Descroption CE Piston Stage Certificate Tea Drink Milk Cream Y Appications Milk , Juice, Beverage, Butter, Honey, Cream Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure CE Certificate Homogenizer Certificate CE Certificate High Pressure Homogenizer Customized Electricity Motor Motor Brand Siemens /ABB /China Brand Voltage 380V50Hz3phase Spare Parts Two Stage Homogenizer Working Life More Than 10years Piston 3set Cooling Ice Water MOQ 1set Packing Wooden Box Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

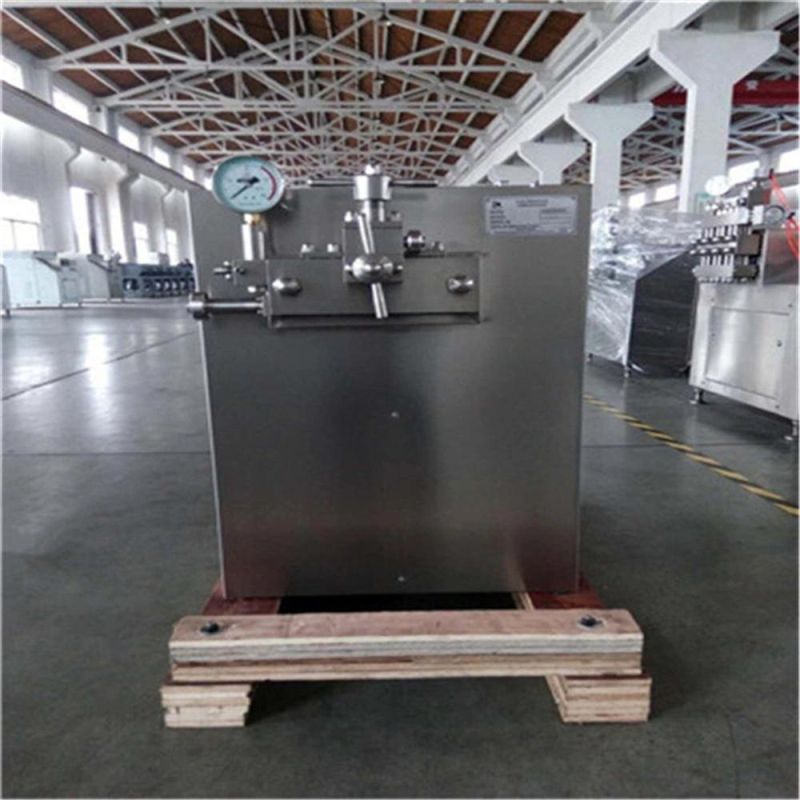

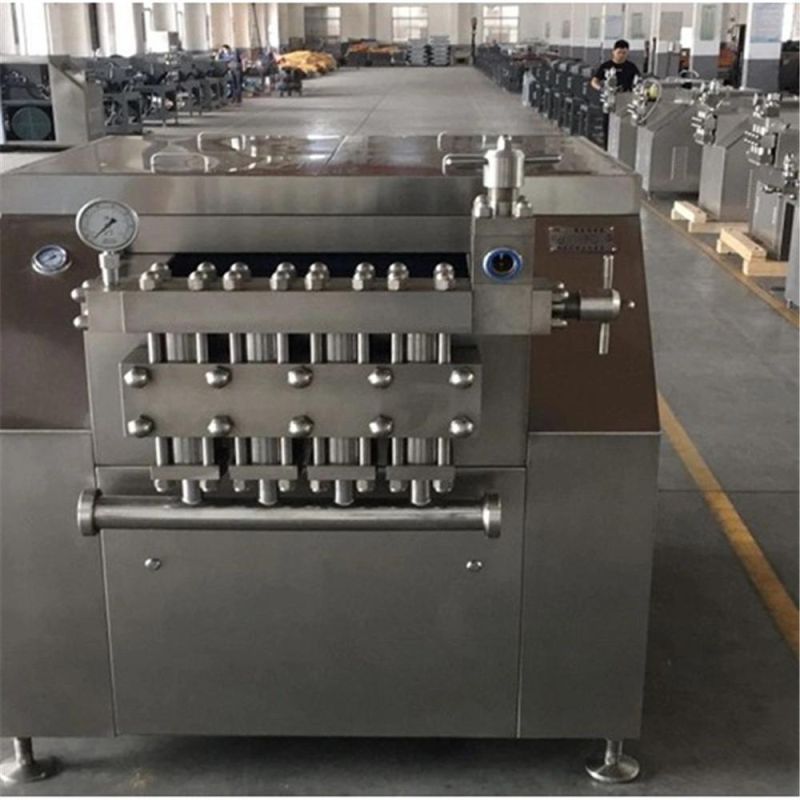

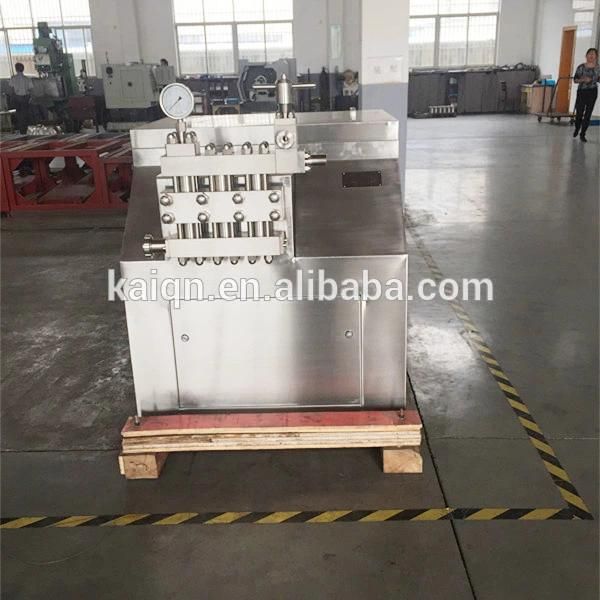

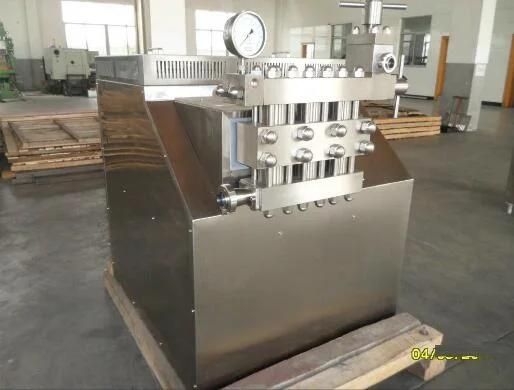

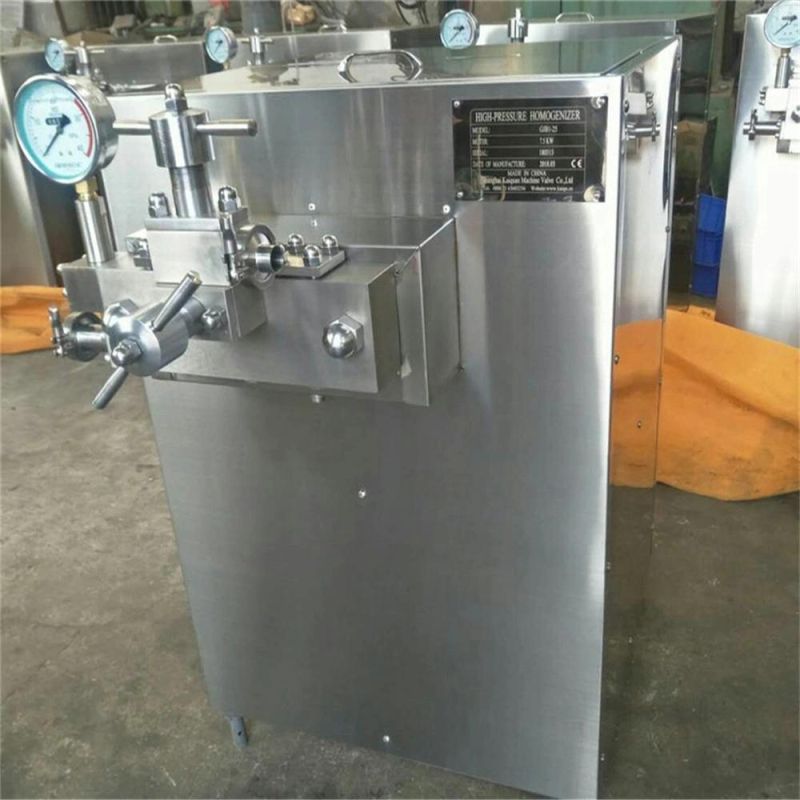

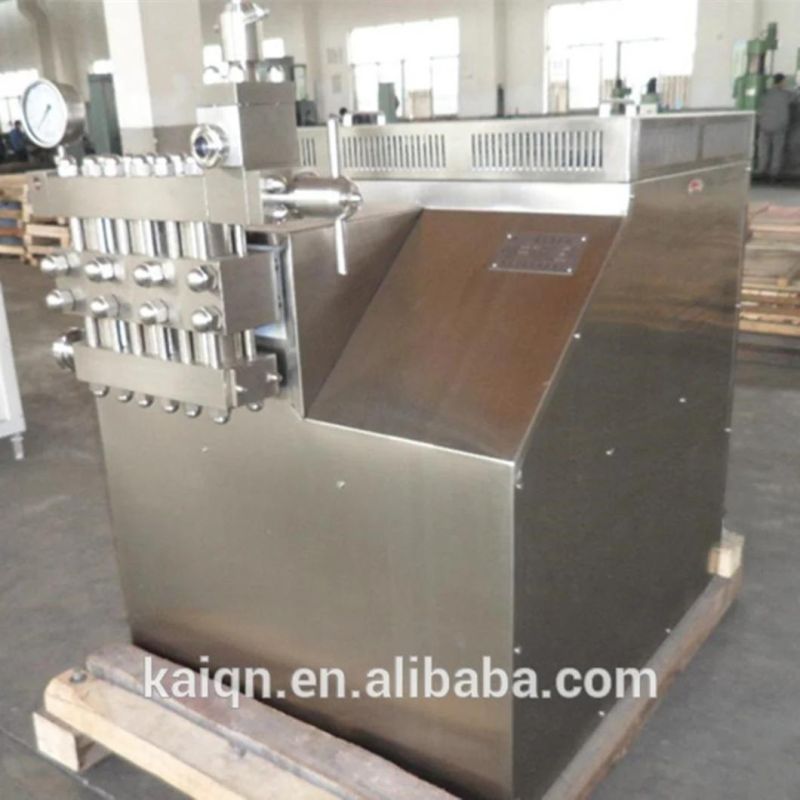

Oil Homogenizer, Homogenizing Machine 250bar


Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.



Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. );
Oil Homogenizer, Homogenizing Machine 250bar
