Milk Pasteurizing Tank Pasteurizer Batch Pasteurizer Mixing Tank
Shanghai Kaiquan Machine Valve Co., Ltd.- After-sales Service：Online Service
- Warranty：One Year
- Usage：Biscuit, Cake, Pizza, Bread, Yogurt
- Power Source：Electric
- Timing Device：Without Timing Device
- Type：Mixer
Base Info
- Model NO.：KQ100L-30000L
- Voltage：220V
- Customized：Customized
- Name：Milk Pasteurizing Tank Pasteurizer Batch Pasteuriz
- Material：Stainless Steel 304 ,316
- Milk Pasteurization Tank：Heating , Pasteurizing, Mixing, Cooling
- Capacity：200litres, 300L, 400L, 500L, 600L to 10000L
- Tank Mixer：Mixing Speed Adjustable
- Pasteurizer Temperature：Adjustable
- Batch Pasteurization：Electric Heating,Steam Heating
- Application：Pasteurizing Milk, Juice, Icecream
- Mixer Type：Cusotmized
- Delivery：10 Days
- Orign：Shanghai China
- Packing：Wooden Box
- MOQ：1set
- OEM：Yes
- Spare Parts：Available
- Transport Package：Plywood Box
- Specification：ISO,SGS
- Trademark：KAIQUAN
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：100units,Month
Description
ucer are also available600 920*1000 2850 60 38 0.55 700 990*1000 2850 60 38 0.55 800 950*1220 3000 60 38 0.55 900 1010*1220 3000 60 38 0.55 1000 1060*1220 3150 60 51 0.75 1500 1160*1500 3350 60 51 0.75 2000 1340*1500 3410 60 51 1.1 3000 1410*2000 4000 60 51 1.5 4000 1620*2000 4250 60 51 1.5 5000 1810*2000 4300 60 51 2.2 6000 1980*2000 4550 60 51 2.2 7000 1930*2440 5000 60 51 2.2 8000 2060*2440 5000 60 51 3 9000 2180*2440 5050 60 51 3 10000 2300*2440 5050 60 51 3 12000 2270*3000 5600 60 51 4 15000 2530*3000 5700 60 51 4 20000 2640*3660

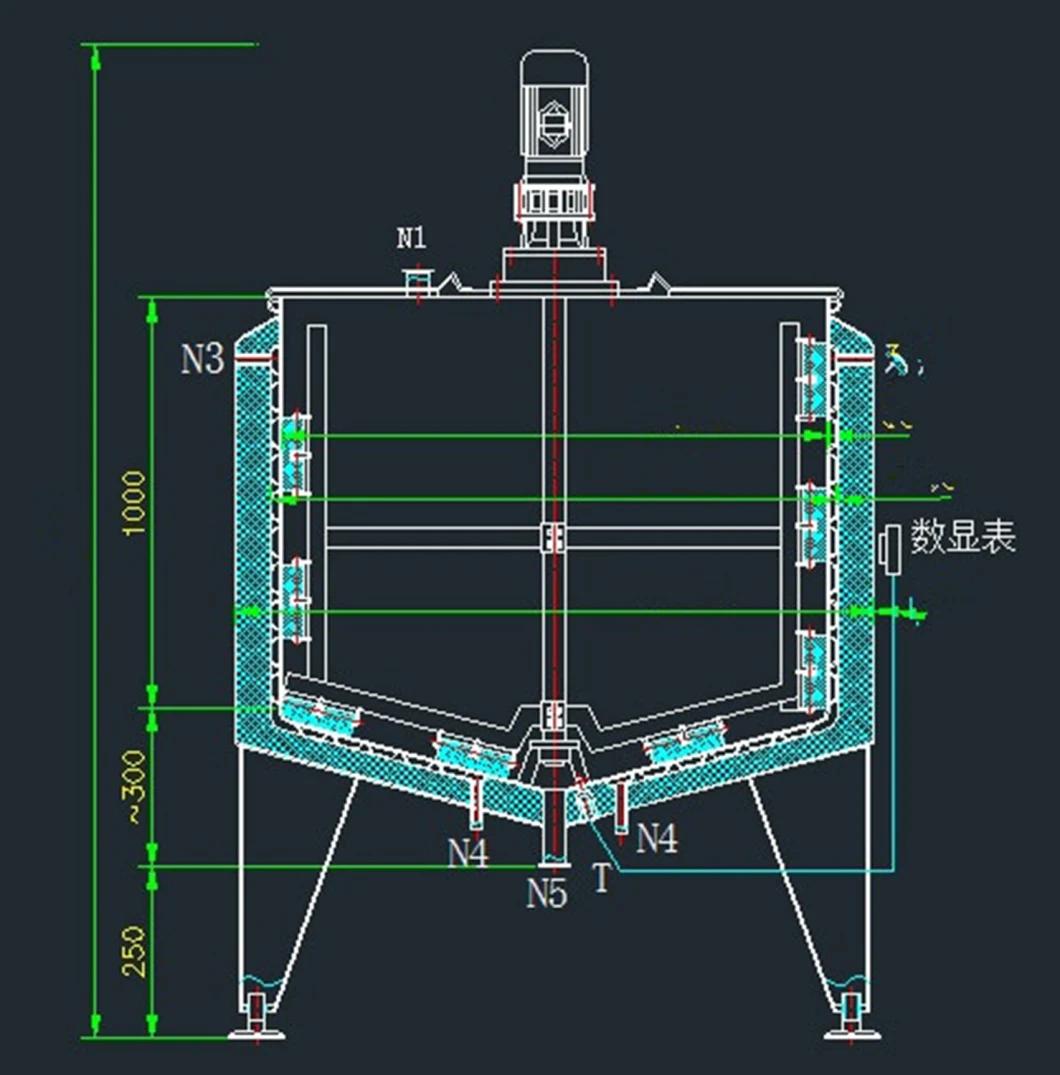

Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole .
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube

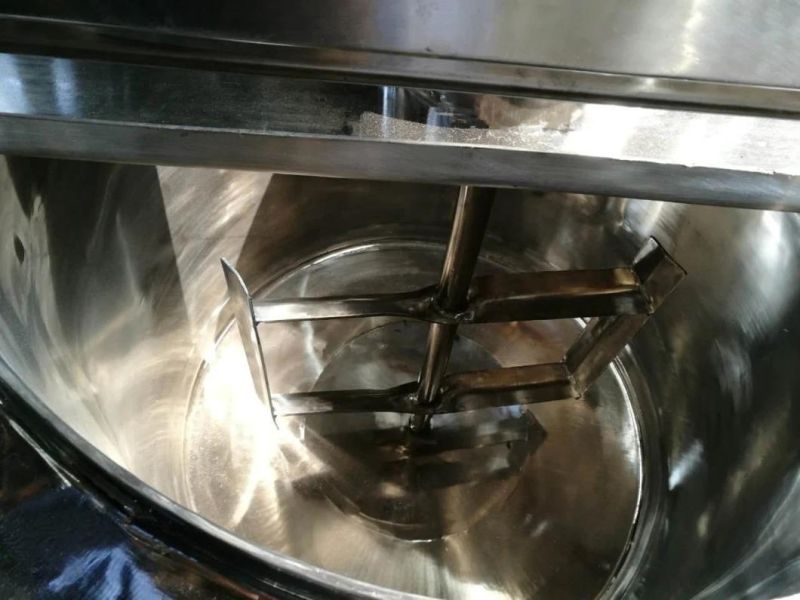

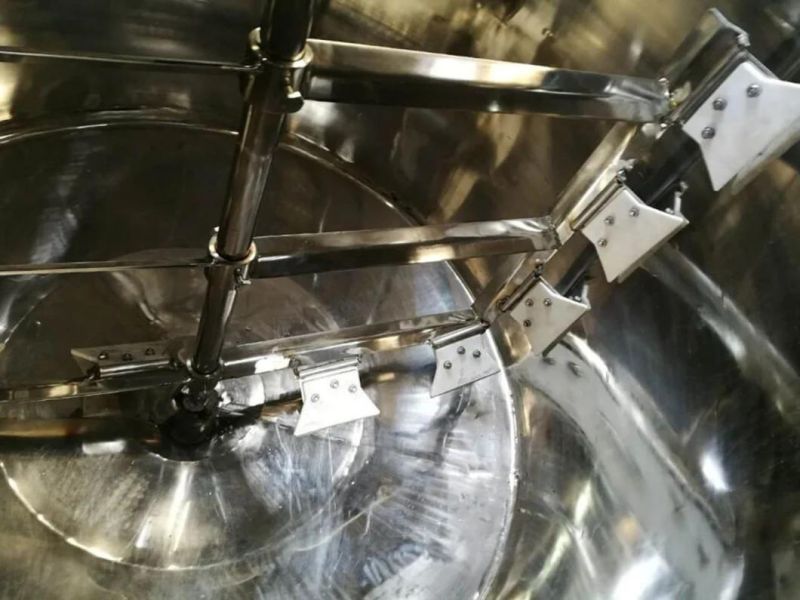

(5) Rack & blender etc.
(6) the electric motor (0.75KW, 380V, 50Hz)

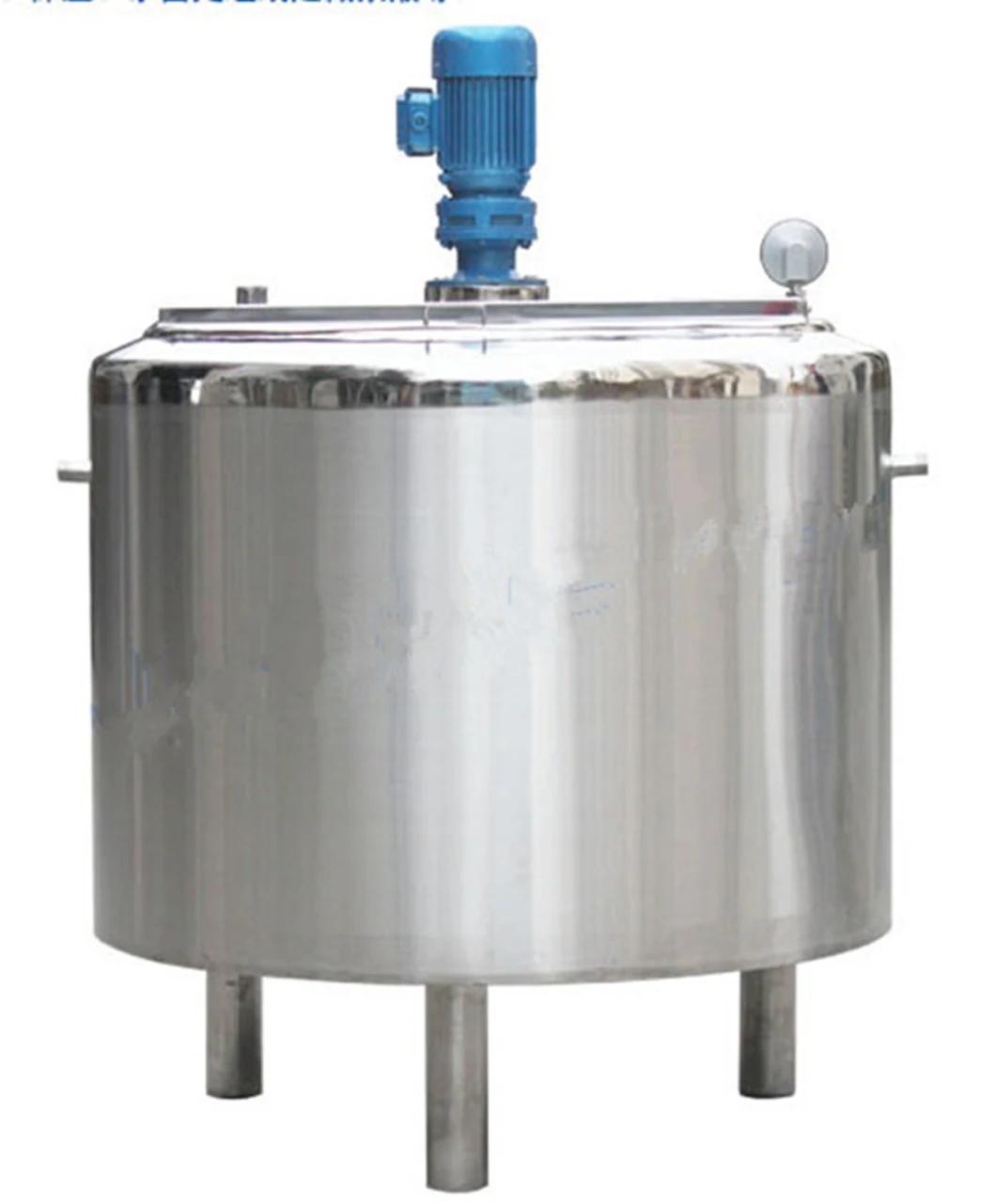

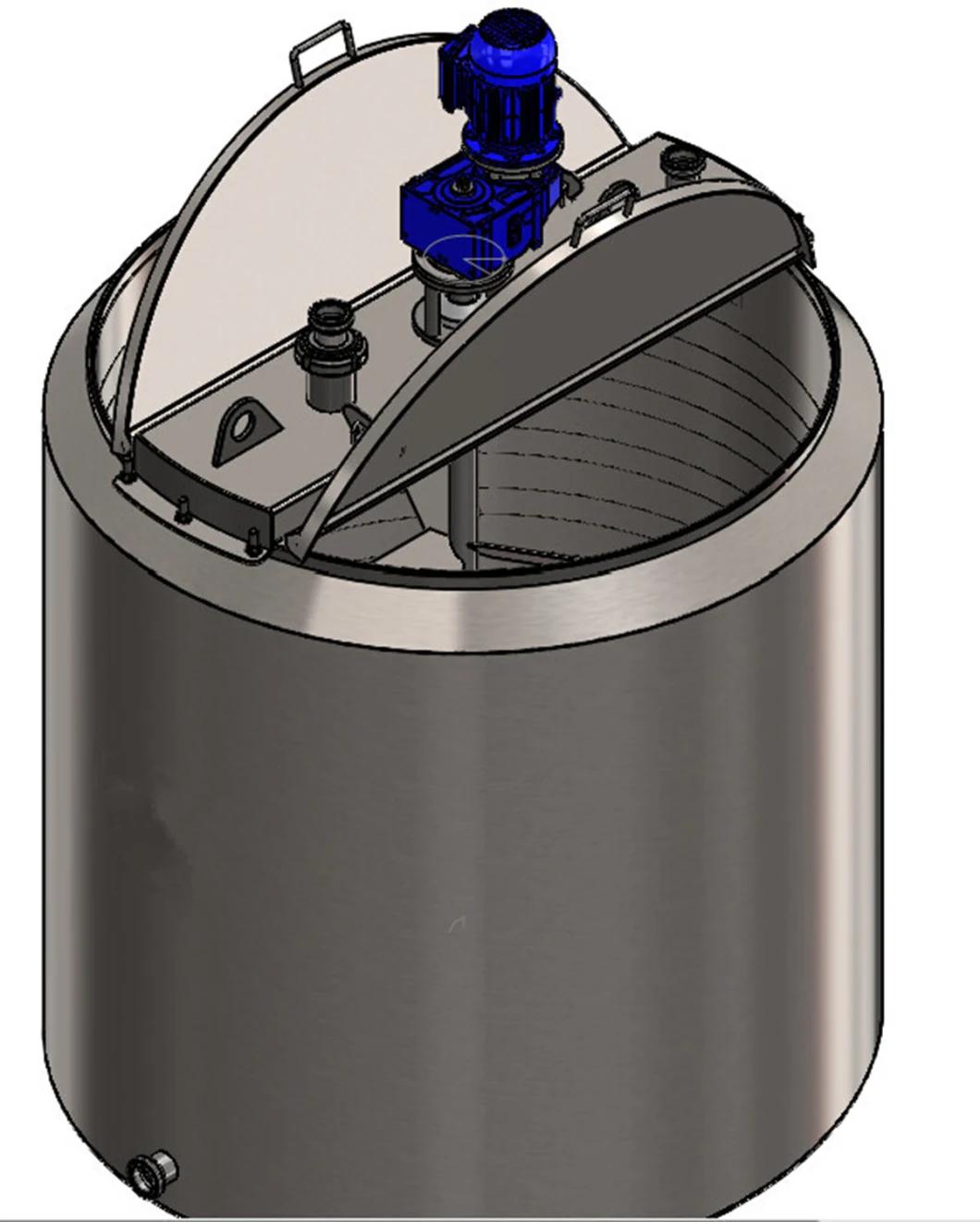

Milk Pasteurizing Tank Pasteurizer Batch Pasteurizer Mixing Tank
Material: Ss304
* Type: With Jacket and insulation
* Internal shell thickness: 3 mm
* Jacket thickness: 3 mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down manhole .
* Accessories:
(1) Manhole covers
(2) Charging/discharging hole at the bottom,
(3) CIP Cleaning ball
(4) Steam heating tube
(5) Rack & blender etc.
(6) the electric motor (0.75KW, 380V, 50Hz)
Milk Pasteurizing Tank Pasteurizer Batch Pasteurizer Mixing Tank
