• Model NO.：WS-25-1-5
• Application：Milk, Yogurt
• Customized：Non-Customized
• Processing Types：Milk, Juice, Ice Cream, Yogurt
• Product Name：Yogurt Homogenizer
• Flow：1000L,H
• Maximum Pressure：25MPa
• Temperature：≤80ºC
• Material：SUS304
• Stage：Two Stages Homogenization
• Inlet of Material：Ф33mm
• Outlet of Material：Ф21mm
• Advantages：Low Noise
• Transport Package：Wooden Box
• Specification：1150*450*1200mm
• Trademark：WS
• Origin：Shanghai, China
• Production Capacity：90sets,Year

Basic Info.

Model NO. WS-25-1-5 Application Milk, Yogurt Customized Non-Customized Processing Types Milk, Juice, Ice Cream, Yogurt Product Name Yogurt Homogenizer Flow 1000L/H Maximum Pressure 25MPa Temperature ≤80ºC Material SUS304 Stage Two Stages Homogenization Inlet of Material Ф33mm Outlet of Material Ф21mm Advantages Low Noise Transport Package Wooden Box Specification 1150*450*1200mm Trademark WS Origin Shanghai, China Production Capacity 90sets/Year

Product Description



Working principle:

1. The homogenizer is a kind of ultra-fine comminution, emulsifying homogenate equipment.

2. It's USES high pressure conditions suspension liquid, through an adjustable homogeneous valve aperture

voltage-absent, expansion, explosion, shear and collision, comprehensive effect material to superfine crushing,

particle size can reach 0.01 ~ 2 u m, average 1 muon m, and formed a good emulsion or dispersed.

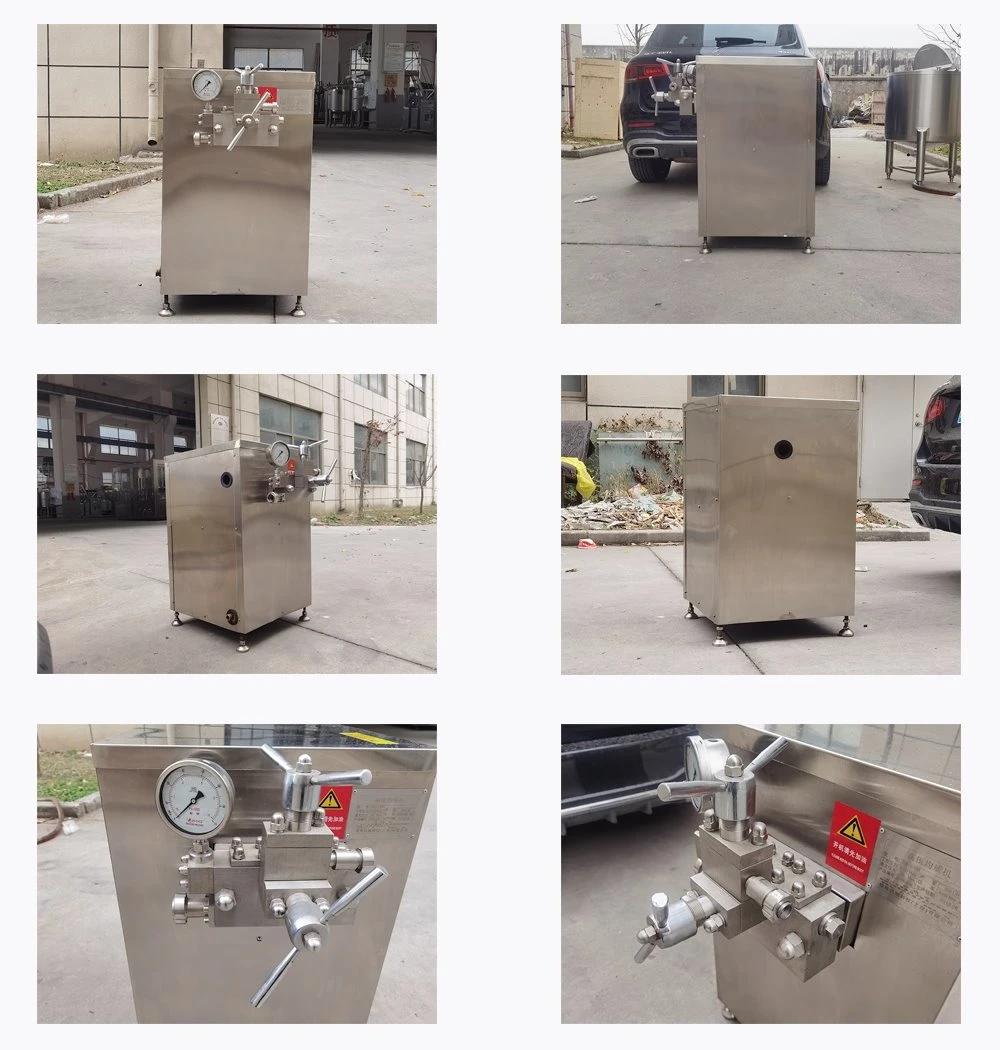

High pressure milk homogenizer is a special equipment of the liquid material thinning and high pressure transportation. It is composed of frame, wheel box, pump body, pressure meter, homogenizer and so on.
High Pressure Fresh Milk Homogenizer is used for homogenizing liquid material(liquid or semi-liquid with viscosity less than 0.2Pa.s and less temperature 80ºC). The working principle of high pressure milk homogenizer is mainly through the reciprocating motion of three plunger, the raw material will enter homogenizing valve in a high pressure way. After homogenizing, the fineness of raw material can reach less than 1um. It is widely Applied in food, health care products, cosmetics and other fields.




1. Covered with stainless steel shell, the appearance is smooth, sanitary.
2. Use helical gear low speed transmission, low noise, smooth operation, reliable performance.
3. Transmission part adopts spatter and oil feeding mode to ensure the lubrication needs of each part.
4. The double-sided design of the seat, the service life is doubled.
5. Homogenizing valve, one-way valve, plunger made of alloy steel, with wear resistance, impact resistance, long service life and other characteristics.


1,Q: Your factory is trading company or factory?
A: We are factory. We have more 5000 square meter workshop and 50 workers containing the 2 installment engineer.
We are Factory, so we have cost advantage than others
2, Q: How do your company control the machine quality?
A: First we control the raw materials quality.
Second, we control the quality of machine when we are processing.
Third, Our installment engineer will test machine.
3, Q: How about payment term, payment safety and delivery time?
A: We accept 30% deposit, balance before shipment.
Delivery time is 20 to 30 days. It is according to order quantity.
4,Q: What is your company after sale service?
A: Our installment engineers are available. Our guarantee is one year.
