• Model NO.：WS-25
• Application：Milk, Yogurt, Milk Powder, Juice
• Customized：Non-Customized
• Condition：New
• Processing Types：Milk, Juice, Ice Cream
• Product Name：Milk Homogenizer
• Capacity：1000L,H
• Maximum Pressure：25MPa
• Material Viscosity：≤0.2PA.S
• Normal Pressure：≤20MPa
• Temperature：≤80ºC
• Transport Package：Wooden Box,Case
• Specification：1130*450*1100mm
• Trademark：WS
• Origin：Shanghai
• Production Capacity：80sets,Year

Basic Info.

Model NO. WS-25 Application Milk, Yogurt, Milk Powder, Juice Customized Non-Customized Condition New Processing Types Milk, Juice, Ice Cream Product Name Milk Homogenizer Capacity 1000L/H Maximum Pressure 25MPa Material Viscosity ≤0.2PA.S Normal Pressure ≤20MPa Temperature ≤80ºC Transport Package Wooden Box/Case Specification 1130*450*1100mm Trademark WS Origin Shanghai Production Capacity 80sets/Year

Product Description

I.Product Description:

Working principle:

1. The homogenizer is a kind of ultra-fine comminution, emulsifying homogenate equipment.

2. It's USES high pressure conditions suspension liquid, through an adjustable homogeneous valve aperture

voltage-absent, expansion, explosion, shear and collision, comprehensive effect material to superfine crushing,

particle size can reach 0.01 ~ 2 u m, average 1 muon m, and formed a good emulsion or dispersed.

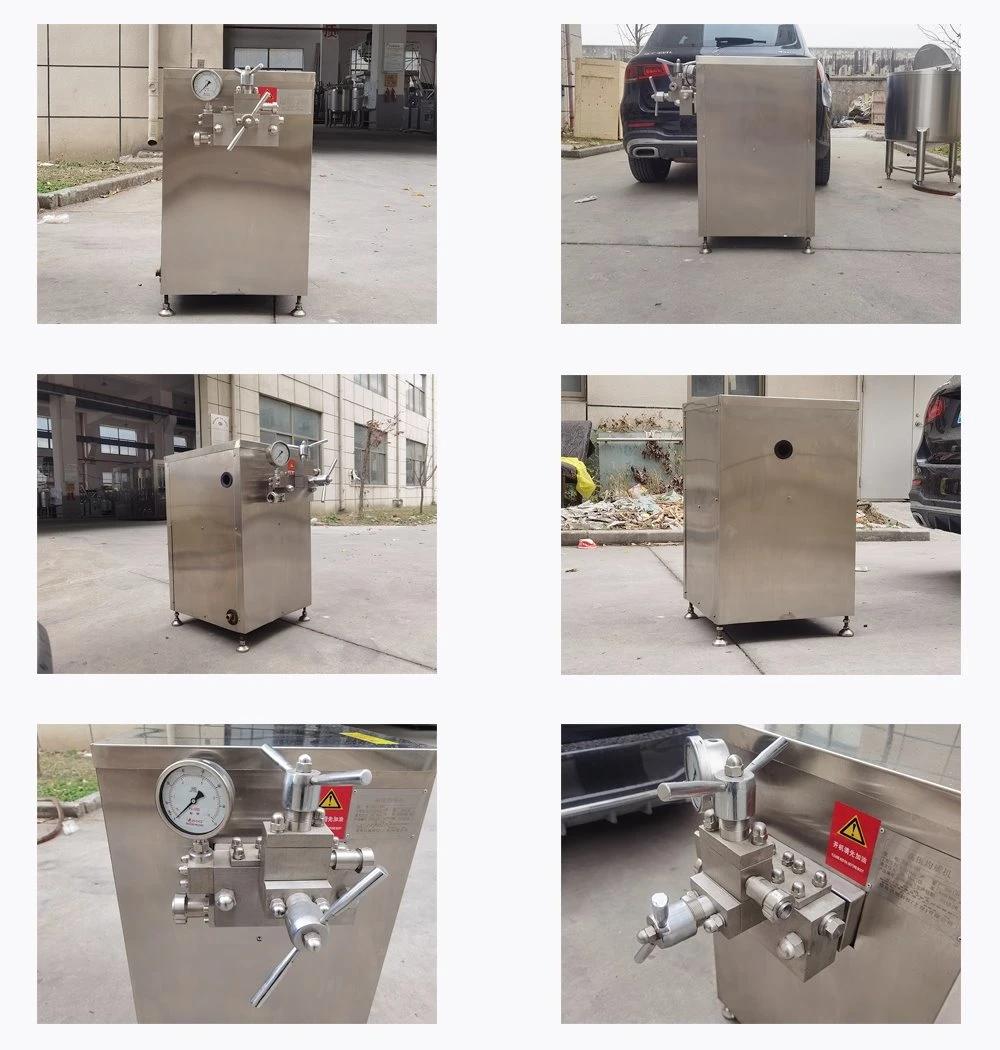

Description of Construction:

1) Actuation: Two-step of speed changes; first step is belt pulley; the second step with crank gears get transmission

oppositely; the slide can be disassembled simply, spindle and tile are made of special alloys, the rolled axletree

setted on two sides make the machine steadily and low noise.

2)lubrication: Splashed free lubrication.

3)Main pump: Three channels,the pressing cover takes radial direction sealing itself.

4)3Pistons: Quadrate sealing component, code:X4310

5)One-way valve:There are 3 in and out of tapered valve, total 6.

6)Homogenizing valve:The one step ,high pressure component consist of high pressure valve core,

high pressure valve seat and impact ring.The two step,low pressure component consist of two plane valve.

7)Control of pressure:One diaphragmatic pressure gauge imported and assembled from Germany.It control high

 pressure and low pressure.

8)Adjustment of pressure: Stepless manual Adjustment for the pressure gauge,two step.



II.Related Items:

1.Packing: By standard export plywood case(no vermin, germs)

2.Payment: TT/LC/Western Union etc. Is acceptable

3.Warranty: 1 year (For non-human damage factor)

4.Port of loading: Shanghai, China (or named by clients)



III.Hearty service:

1. Before sending the machine, we will test and adjust, so you can use directly when you get it.

2. Operating video & instruction will be sent to clients, to help them better use the machines.

3. Any problems occur while using, professional advice will be given by us.


 High pressure Homogenizer is a new product that we manufactured successfully according to the newest technology of international Nineties. It is suitable for the homogenizing of liquid products whose viscosity is lower than 0.2Pa and whose temperature is lower than 80°C such as dairy, beverage, makeup, medicine and so on.

This equipment transports the processed material to homogenizing vale in high pressure way by triple plunger pump, making the material receive complex force such as onflow, cavity, cut when the material flow past the little space between the valve plate and the valve seat to reach the purpose of emulsification and homogenizing.
1) It is of high stability.
2) It improves the preserve quality.
3) It improves the homogeneity.
4) It improves the absorb quality.
5) It reduces the high cost of additive.
6) It changes the viscosity.
7) It reduces the reaction time.
8) It can be used for cell division.
9) It is stainless steel,durable
10)It is high pressure
11)It is easy to operate
