• Model NO.：TSSL-100
• Principle：Water Spraying
• Structure：Tunnel
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Physical Sterilization
• Type：Induction Electronics Sterilization Equipment
• Material：304 Stainless Steel or According to Customer Requi
• Power：15kw
• Speed Mode：Automatic
• Voltage：380V,50Hz
• Hot Water Unit：with
• Cold Water Unit：with
• Transport Package：According to Customer Requirement
• Specification：According to customer requirement
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：100pieces,Year

Basic Info.

Model NO. TSSL-100 Principle Water Spraying Structure Tunnel Operation Continuous Energy Heat Sterilization Property Physical Sterilization Type Induction Electronics Sterilization Equipment Material 304 Stainless Steel or According to Customer Requi Power 15kw Speed Mode Automatic Voltage 380V/50Hz Hot Water Unit with Cold Water Unit with Transport Package According to Customer Requirement Specification According to customer requirement Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 100pieces/Year

Product Description

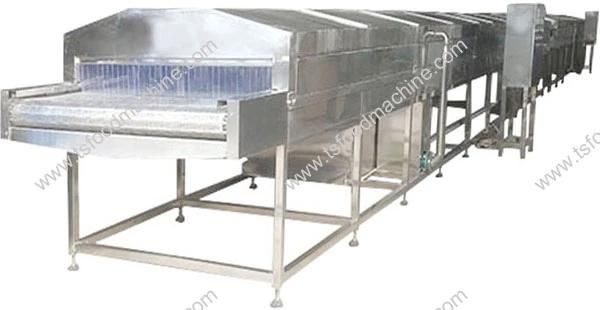

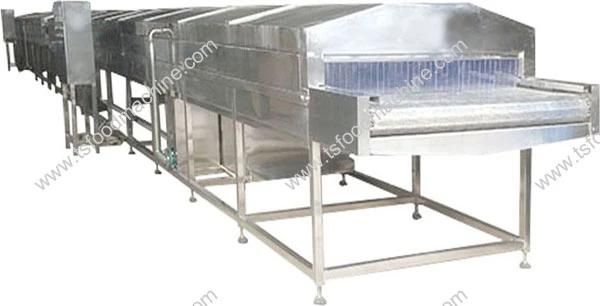

1.- Automatic Pasteurizing And Cooling Machine Jar Pasteurization Machine

Tunnel pasteurization is the process of taking liquid-filled cans or bottles and running them through a stainless steel tunnel where hot water is sprayed onto the finished product. Tunnel pasteurizers is effective methods for pasteurizing liquids.
With tunnel pasteurization, the liquid is poured into bottles and cans, and then the bottles or cans are moved into an enclosed conveyor. Once in the conveyor, they're sprayed with, or immersed in, hot water or steam to 74-90 degrees Celsius. After the heat bath, the bottles or cans are then sprayed with cold water to cool them down.
The use of sprays, rather than baths of liquid, allows for a more precise control of the heating and cooling stages. The nozzles serve to greatly increase the surface area of the liquid and increase heat transfer. This means less energy is wasted and the efficiency of the system is improved.


Working Principle:
In a certain temperature range, the lower the temperature, the slower the bacteria propagate; the higher the temperature, the faster the bacteria propagate (generally, the suitable temperature for microbial growth is 28 ºC - 37 ºC). But if the temperature is too high, the bacteria will die. Different bacteria have different growth temperature, and the ability of heat and cold tolerance.

Pasteurization uses the pathogen has the characteristics of not very heat-resistant, with appropriate temperature and holding time treatment, to kill all of them. However, after pasteurization, a small number of harmless or beneficial, heat-resistant bacteria or bacterial spores remained.


Technological process:
In the food, beverage, pharmaceutical industries, the packaged products(Bottled or canned)are placed on the conveyor belt and transported into the sterilization tank. The products should be spray by the hot water from top and bottom which can kill the bacteria inside the food materials. After a certain time, the food materials are deliveried into the cold water for cooling and lower
the temperature within the required time.







2.- Applications of Automatic Pasteurizing And Cooling Machine Jar Pasteurization Machine

Pasteurization Machine is widely used in pasteurizing the jars packed wine, juice, meat, canned pickled vegetables, tomato, green beans, olive, cucumbers, canned vegetables, and other packed/canned food products.





 3.- Technical Parameters of Automatic Pasteurizing And Cooling Machine Jar Pasteurization Machine


1	Model	TSSL-100
2	Heating method	Steam or power
3	Temperature	100 ° C or less
4	Sterilizing Time	10-60Min
5	Overall Dimensions	10000*1200*1400mm
6	Power	15KW

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.

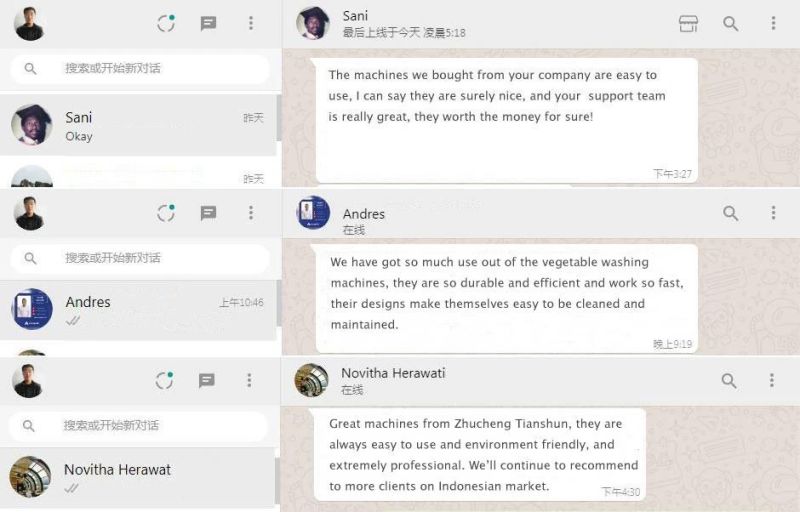

5. -Customers Review

6. -Introduction of Our Company

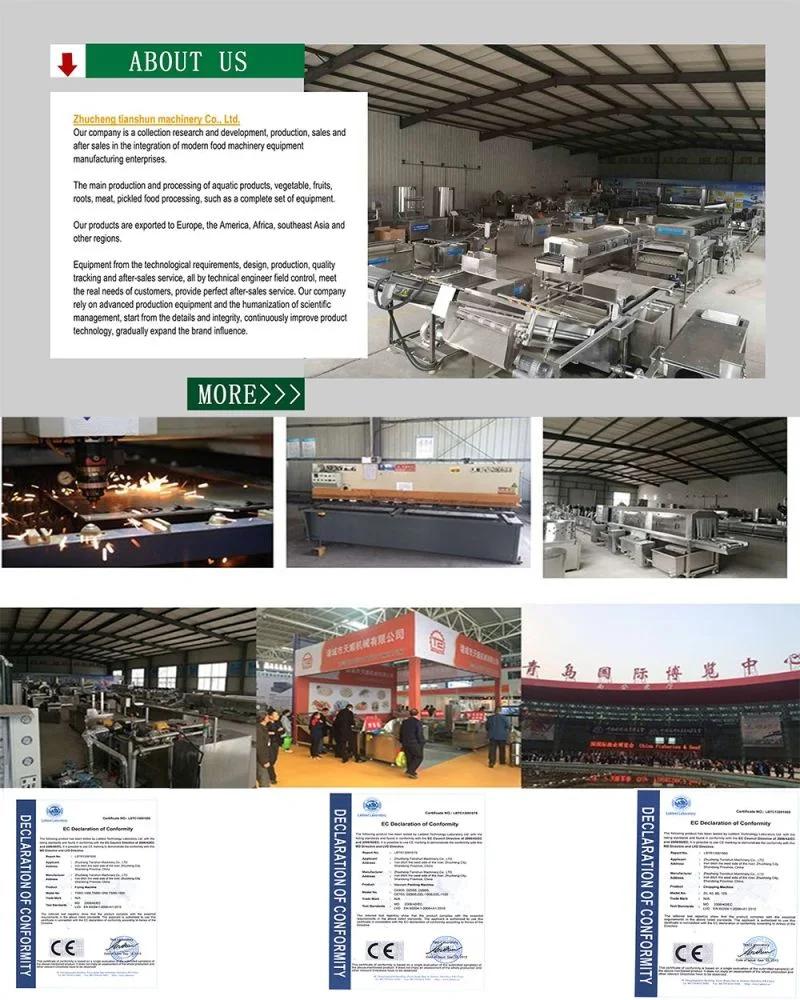

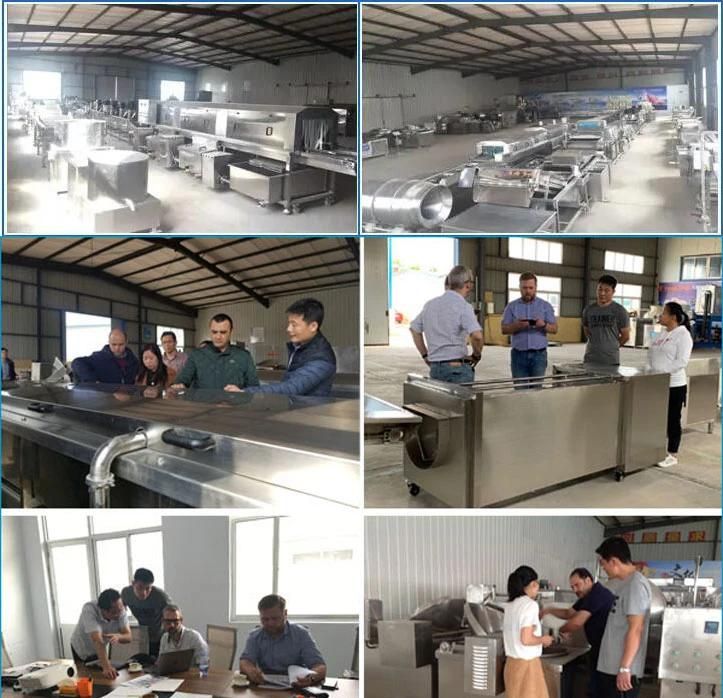

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Freeze dryer,
Vacuum packing machine,
Complete vegetable and snack food production lines,such as potato chips production line,french fries production line,
vegetables processing line,etc.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
