• Model NO.：ZH-1000L
• Process：Ferment
• Material：Ss34
• Function：Beer Ferment
• Design：Conical 60 Degree
• Cooling Way：Dimple Cooling Jacket
• Inner Shell：Thickness 3mm
• out Layer：Thickness 2mm
• Temperature Test：PT100 Temperature Sensor
• Inner Surface：Pickled and Passivation
• Insulation：PU Foam
• Welding：Argon Arc TIG 100%
• Transport Package：Steel Frame
• Specification：1000L
• Trademark：Zunhuang
• Origin：China
• Production Capacity：200piece

Basic Info.

Model NO. ZH-1000L Process Ferment Material Ss34 Function Beer Ferment Design Conical 60 Degree Cooling Way Dimple Cooling Jacket Inner Shell Thickness 3mm out Layer Thickness 2mm Temperature Test PT100 Temperature Sensor Inner Surface Pickled and Passivation Insulation PU Foam Welding Argon Arc TIG 100% Transport Package Steel Frame Specification 1000L Trademark Zunhuang Origin China Production Capacity 200piece

Product Description

Description:
Fermentation Unit

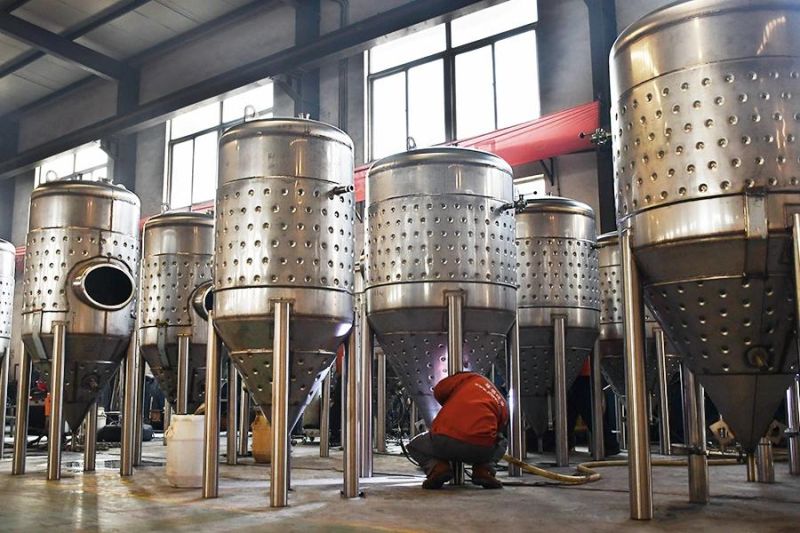

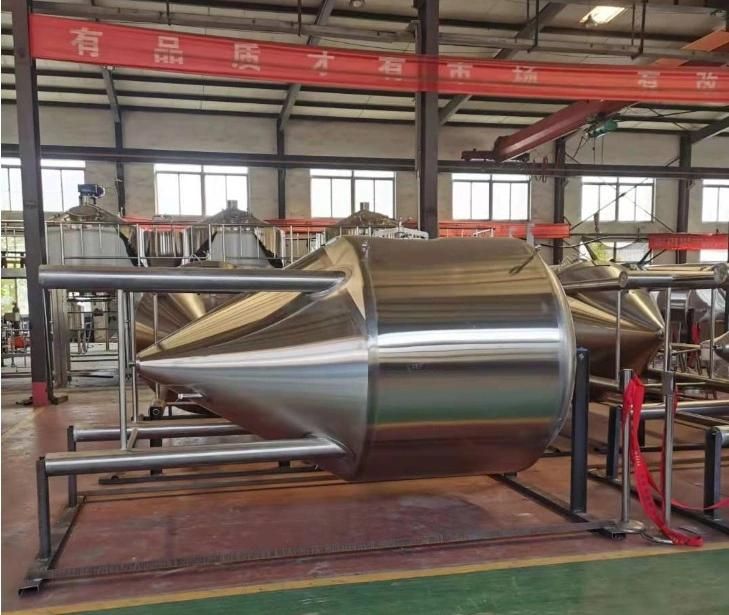

Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers

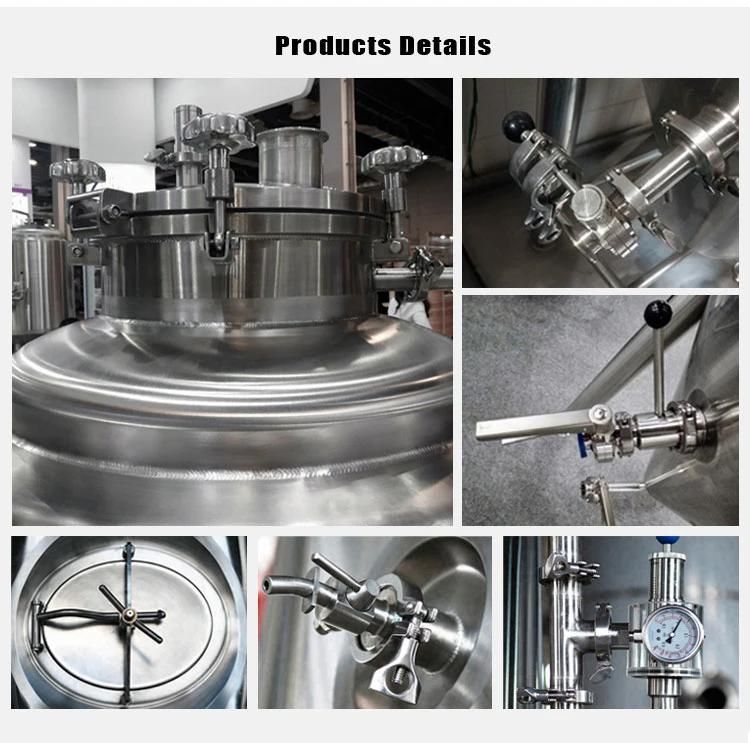

All manhole, valves, pressure gauges, fittings etc are included.

Production capacity	500	1000	2000	5000	10000	20000
Volume Effective/Total	500/660	1000/1330	2000/2660	5000/6600	10000/ 13300	20000/ 26600
Inner shell diameter(mm)	1400	1600	2000	2800	3000	3500
Cooling area m2	2.2	4.4	8.7	14	25	48
Working pressure	0.14	0.14	0.14	0.14	0.14	0.14
Cooling method	Dimple plate jacket	Dimple plate  jacket	Dimple plate jacket	Dimple plate  jacket	Dimple plate  jacket	Dimple plate jacket
Conical angle	60	60	60	78	78	78

Package and delivery:
Steel frame or wooden case

Ten provide to service you:
1. After-sale Service for the whole life.
2. 24h service for you, solve your urgent problem first time.
3. 3 years warranty for the main products.
4. Free design for your brewery layout for 2D or 3D.
5. Spare parts replacement and repair service provided.
6. Engineer going abroad for installation, debugging and technical training if you need.
7. Provide the Form E, CO, etc..others necessary reduce import Tax files for you.
8. To provide update information about brewing equipment technology once we test.
9. Help you send the goods if you have others company order, then send to you together.
10. Door to Door service, if you need any brewing parts.
