• Model NO.：T300
• Production Capacity：20sets,Year

Basic Info.

Model NO. T300 Production Capacity 20sets/Year

Product Description

Description:

The processing line is an advanced one for making various kinds of soft candies,
Such as central-filling milk candies, soft candies and etc...It is also an ideal equipment which can
Produce out good quality products with the saving of both the manpower and the
Space occupied.

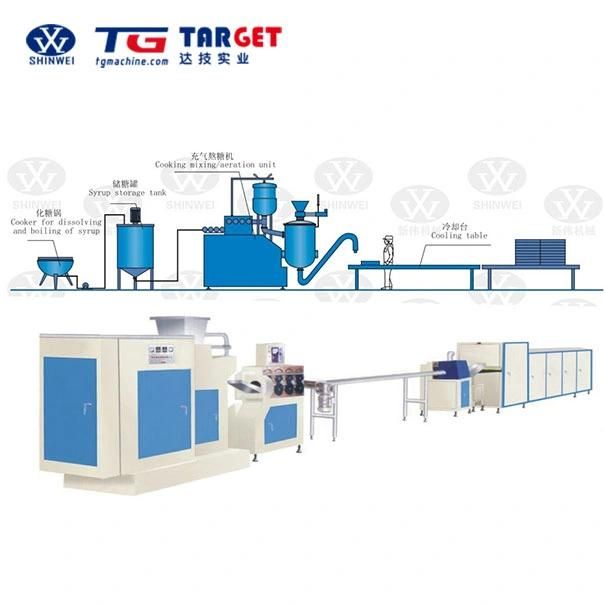

PROCESS FLOWING LAYOUT CH
Transporting -Storage -Continuous cooking and aerating-Cooling - Drying and aging -Extruding and filling-Rope sizing - Cooling conveyor - Forming -Swing discharger- Packing



Finished products:

Model	T300
Production capacity   ( kg/h)	300
Rated output speed    (pcs/min)	1000
Weight of each candy     (g)	Shell: 7g(max.)       Central-filling:2g(max)
Steam consumption    (kg/h)  Steam pressure        (Mpa)	400 0.2~0.6
Electric power needed	34kw/380V
Compressed air consumption Compressed air pressure	25m3/min 0.4-0.6 Mpa
Conditions needed for  the cooling system: 1.Room temperature(degree centigrade) 2. Humidity (%)	20~25 55
Length of the whole line   (m)	16m
Gross weight           ( Kgs)	Approx.8000

  Wooden packing 1.Product production is completed, by the quality inspection department to check 2.After inspection qualified, clean for whole machine 3.Packing: a.Inside the machine put desiccant b.Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap c.On wood packaging on the outside of the machine, then use metal reinforcement with steel 4.Container:according to different products for reinforcement  After-sale service for abroad customers. 1. Free training of macine installion, operation and maintenance will be provided by our engineer.2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.3. We will surpport customers after-service forever by call, email and video etc.4. If necessary, our engineer is available to go to customer's factory for machine installion and adjustment    Why choose us? ·Nearly 20 years experiences in food processing machinery production, established in 1982. ·We are manufacturer and wholesale of dough kneading machine ·We adopt environment-friendly materials and technology ·We mainly sell stock in bulk. OEM orders are welcome
