• Model NO.：WSBS
• Application：Milk, Yogurt, Juice
• Customized：Customized
• Voltage：380V,220V or Customized
• Material：SS304 or SS316L
• Capacity：500L-20000lph
• Key Selling Points：Long Service Life
• Transport Package：Wooden Case
• Specification：1800x1600x2000mm
• Trademark：WS
• Origin：Shanghai, China
• Production Capacity：55sets,Month

   380V/50HZ/3Phase or 220V/Single phase/50Hz or customized

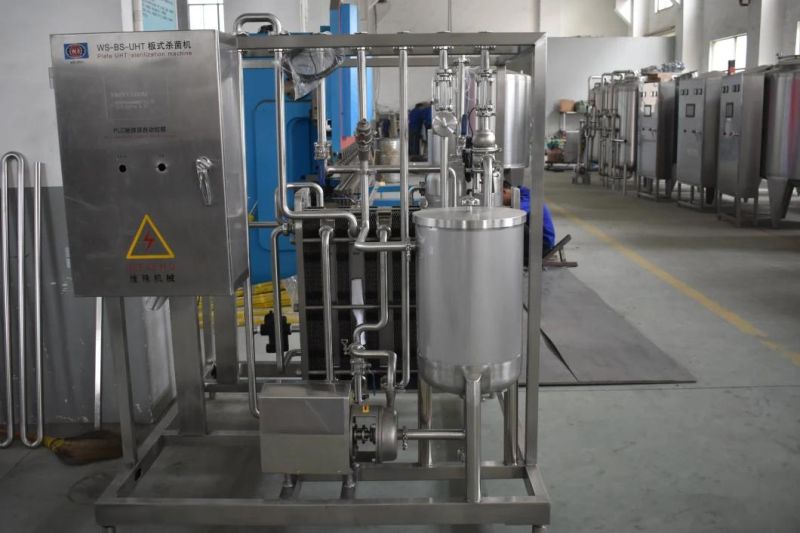

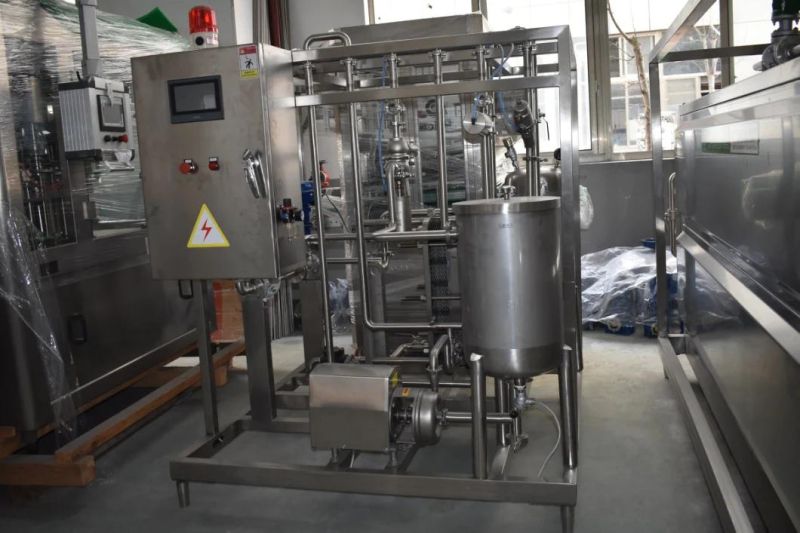

1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology,

medicine etc. sterilizer of other model.

2. Main structure: Material tanks, sterilizer tank, material pump, exheater, hot water cross occur, controller etc.

3.Working principle: pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe,

more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the

material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing

according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the filling

machine.



Working principle



1).Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.

2).Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down into filling temperature by cooling water or chilled water.

3).Before each production shift, sterilize in place the system with aseptic filler together by superheated

4).After each production shift, clean in place the system with aseptic filler together by hot water, alkali liquid and acid liquid.
