• Model NO.：WS-BS
• Application：Milk, Yogurt, Juice
• Customized：Customized
• Voltage：380V,220V or Customized
• Material：SS304 or SS316L
• Capacity：500L-20000lph
• Key Selling Points：Long Service Life
• Key Point：Easy Operate
• Type：High Pressure,Temperature Sterilizer
• Power：Made to Order
• Transport Package：Wooden Case
• Specification：1800x1600x2000mm
• Trademark：WS
• Origin：Shanghai, China
• Production Capacity：55sets,Month

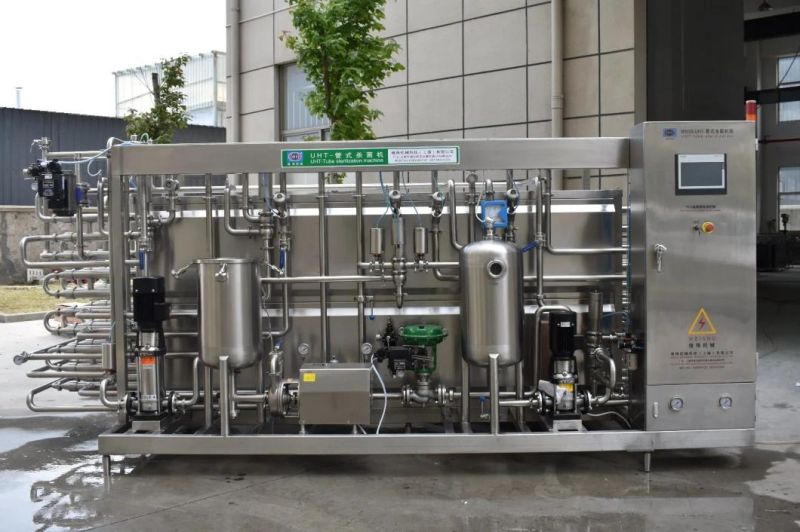

Tube diameter(Φ)MaterialSteamMediumWS-UHT-111301.925DN2525WS-UHT-222602.125DN3225WS-UHT-333903.038DN4038WS-UHT-445203.038DN4038WS-UHT-556503.038DN5038WS-UHT-667803.051DN5051WS-UHT-8810403.751DN6551WS-UHT-101013005.251DN8051WS-UHT-151519507.063DN8063WS-UHT-2020260011.063DN10063 Notes:1. The parameters of UHT Tubular Sterilizer  in the chart are standard configuration. Any specific requirements, please let us know. 2. These process parameters need provided :material properties, sterilization process, specific requirements, etc.3. Auxiliary equipment: gas storage tank, air compressor, water storage tank and boiler. (customer need to equip by themselves).



Working principle



1).Put the product from a storage tank mounted for the sterilizer into the heat exchanger unit.

2).Heat the product by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product, then cool down into filling temperature by cooling water or chilled water.

3).Before each production shift, sterilize in place the system with aseptic filler together by superheated

4).After each production shift, clean in place the system with aseptic filler together by hot water, alkali liquid and acid liquid.
