• Model NO.：KQ-25MPA
• Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
• Customized：Accept
• Name：Industrial Homogenizer Industry Homogenizer Milk H
• Product Material：Stainless Steel 304 ,316
• Homogenizer Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar
• Homogenizer Certificate：CE Certificate
• Motor：15-75kw
• Homogenizer Pressure：Two Stage,Three Stage
• Homogenizer Working Life：More Than 10 Years
• Warranty Period：One Year ,Two Years
• Cooling Water：Tap Water
• Spare Parts：Available
• Packing：Wooden Box
• Motor Brand：Simens ,ABB,China Brand
• Name Plate：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ-25MPA Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Accept Name Industrial Homogenizer Industry Homogenizer Milk H Product Material Stainless Steel 304 /316 Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate CE Certificate Motor 15-75kw Homogenizer Pressure Two Stage/Three Stage Homogenizer Working Life More Than 10 Years Warranty Period One Year /Two Years Cooling Water Tap Water Spare Parts Available Packing Wooden Box Motor Brand Simens /ABB/China Brand Name Plate Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

Industrial Homogenizer Industry Homogenizer Milk Homogenizer Homogenizer Manufacturer


Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer,
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY

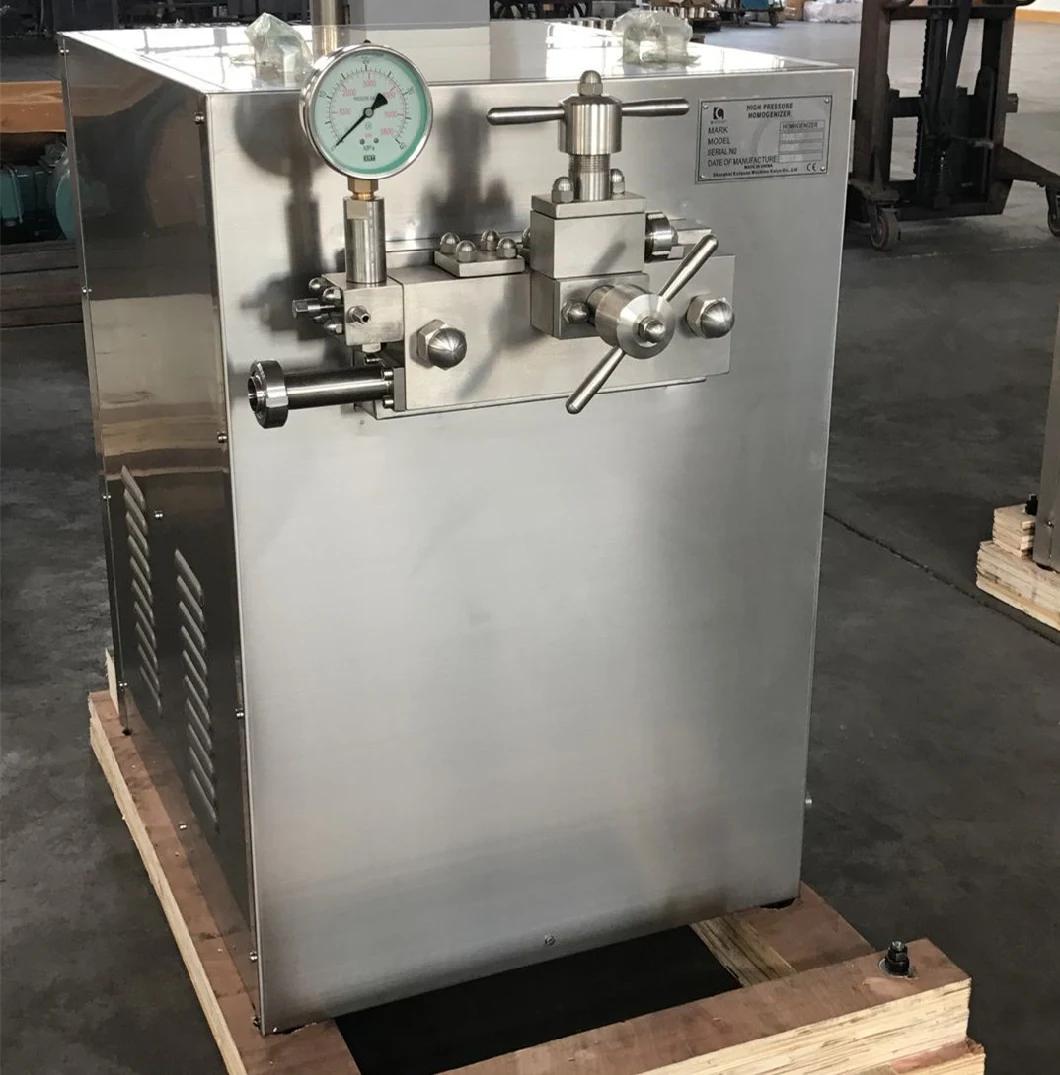

 Industrial Homogenizer Milk Homogenizing Machine
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.


The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Industrial Homogenizer Industry Homogenizer Milk Homogenizer Homogenizer Manufacturer
