• Model NO.：KQ-200bar
• Name：Milk Yogurt Three Stage Homogenizer Price Homogen
• Appications：Milk , Juice, Beverage, Butter, Honey, Cream
• Capacity：500L,H--10000L,H
• Pressure：250bar to 700bar

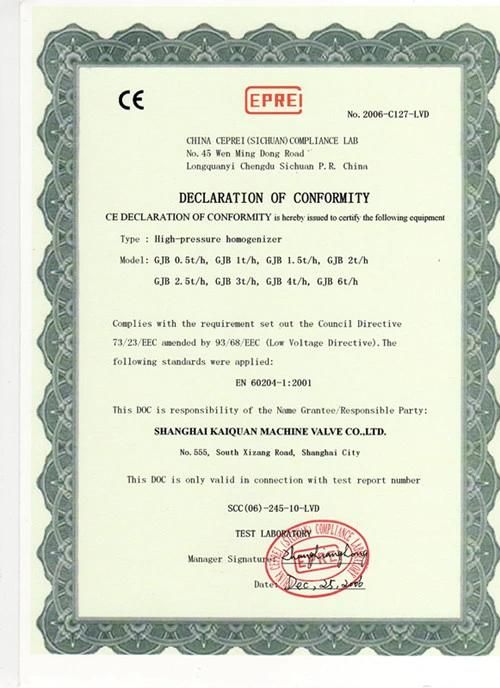

• Homogenizer Certificate：Ce Certificate
• Make to Order：Accept
• High Pressure Homogenizer：Customized Electricity Motor
• Motor：3phases
• Delivery：10 Days
• Warranty：One Year
• Packing：Wooden Box
• MOQ：1set
• Voltage ,Hz,Phase：Make It to Your Order
• Spare Parts：Available
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. KQ-200bar Name Milk Yogurt Three Stage Homogenizer Price Homogen Appications Milk , Juice, Beverage, Butter, Honey, Cream Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate Ce Certificate Make to Order Accept High Pressure Homogenizer Customized Electricity Motor Motor 3phases Delivery 10 Days Warranty One Year Packing Wooden Box MOQ 1set Voltage ,Hz,Phase Make It to Your Order Spare Parts Available OEM Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

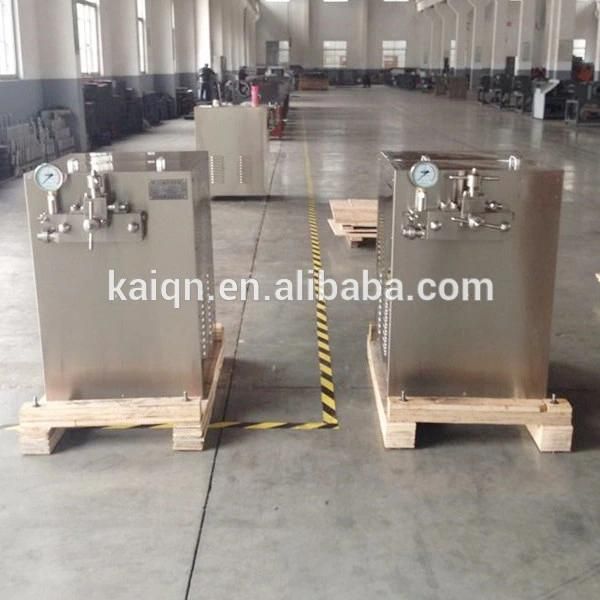

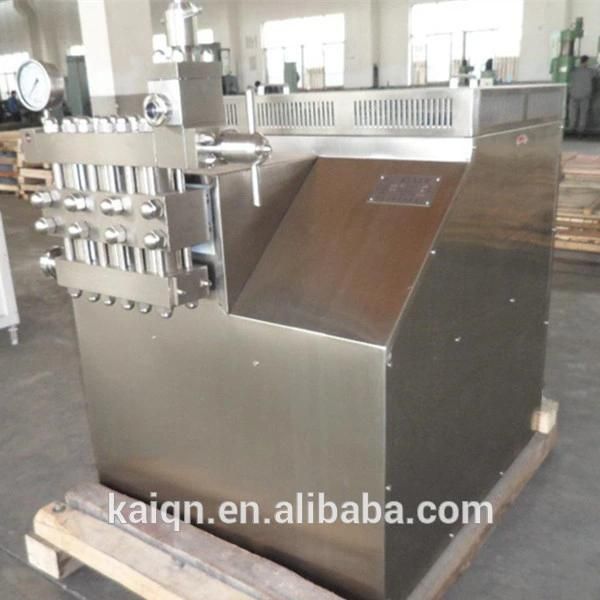

Milk Yogurt Three Stage Homogenizer Price Homogenizer Equipment Cream Homogenizer
 Milk Yogurt Three Stage Homogenizer Price


series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.


Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.

The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )



Milk Yogurt Three Stage Homogenizer Price Homogenizer Equipment Cream Homogenizer
