• Model NO.：5XQS-5
• Power：7kw
• Air Working Type：Blowing Type
• Machine Application：for All Kinds of Seed, Grain and Beans
• Transport Package：Usually Export Standard Wooden Boxes
• Specification：SGS, ISO9001, TUV
• Trademark：SYNMEC
• Origin：Hebei, China
• HS Code：84371090
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. 5XQS-5 Power 7kw Air Working Type Blowing Type Machine Application for All Kinds of Seed, Grain and Beans Transport Package Usually Export Standard Wooden Boxes Specification SGS, ISO9001, TUV Trademark SYNMEC Origin Hebei, China HS Code 84371090 Production Capacity 30 Sets Per Month

Product Description

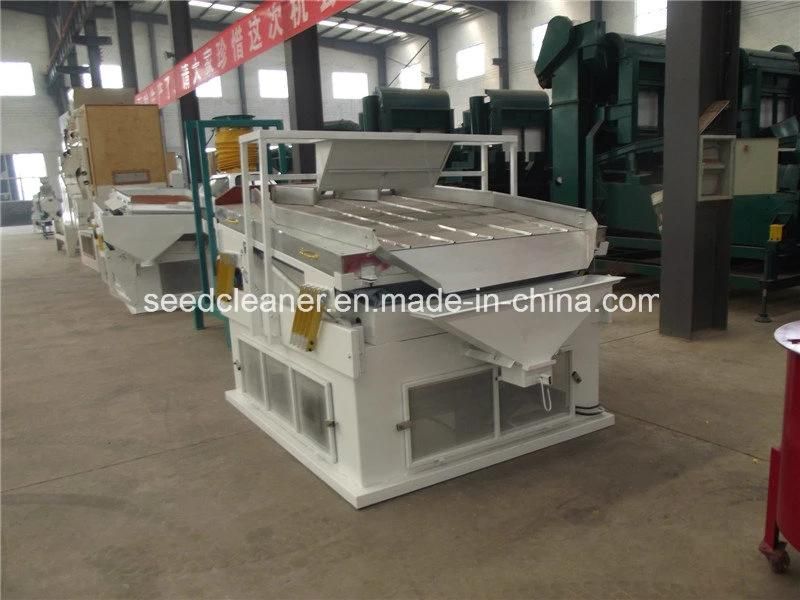

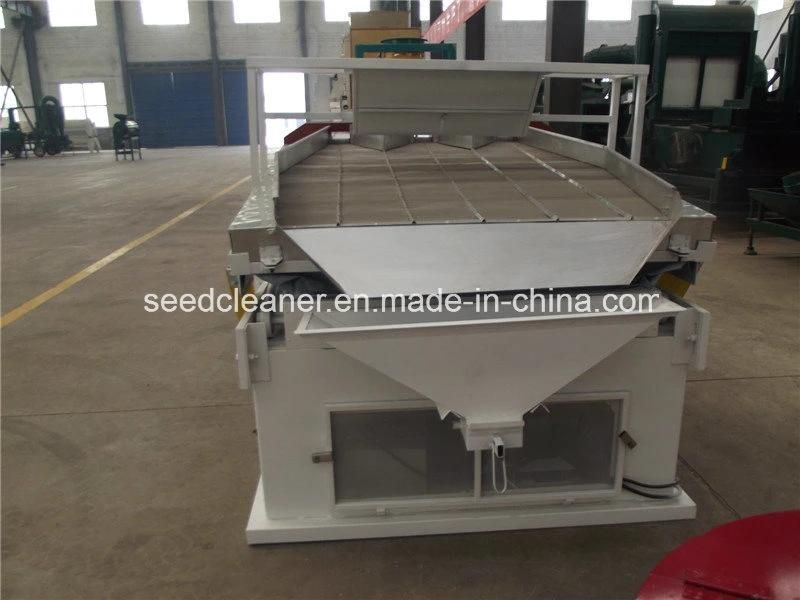

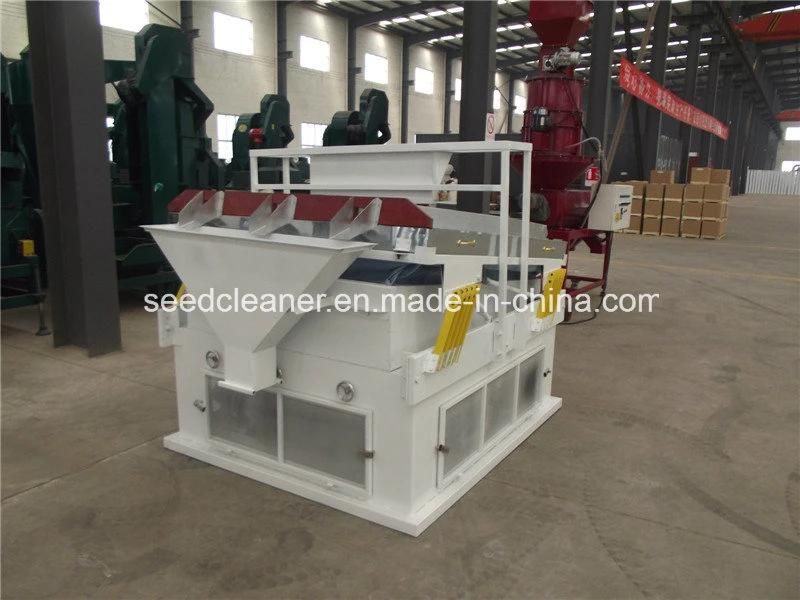

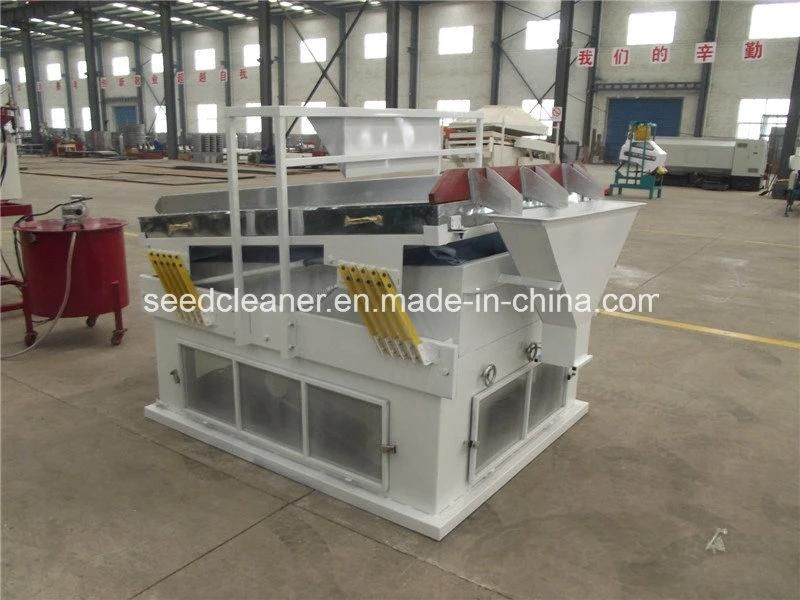

5XQS-5 stone separating equipment

Model: 5XQS-5
Capacity: 5T/H for all kinds of seed,grain and beans
Type: blowing type destoner

Introduction of 5XQS-5 stone separating equipment
5XQS stone separating equipment is used to remove heavy foreign impurity like stone, metallic and glass pieces etc on the principle of weight difference.

Features of 5XQS-5 stone separating equipment
5XQS stone separating equipment is barotropic (blowing type) destoner, 5XQS Destoner is also called universal destoner, it can process all kinds of seeds and beans, and have very good destoning results for beans, sunflower seeds and sesame.

Working Principle of 5XQS-5 stone separating equipment
By the fluidization of seeds caused by deck vibratory with air blowing, heavy particles move to upper levels of the deck, light particles move to the lower level of the deck, and discharged from different outlets.



Model	Capacity (tone/hour)	Power (kw)	Weight (kg)	Dimension (L×W×H)mm	Remarks
5XQS-3 Dry stoner	3	4.75	600	2200×1200×1600	Blowing type
5XQS-5 Dry stoner	5	7	700	2500×1660×1600	Blowing type
QSX-85 Dry stoner	5	3.55	400	1300 ×1500×3200	Suction type
TQSF-60 Dry stoner	5	3.5	320	1450×876×1800	Suction type
TQSF-80 Dry stoner	7.5	3.5	400	1450×1046×1800	Suction type
TQSF-100 Dry stoner	10	3.5	480	1450×1246×1920	Suction type
