European Standard Mung Bean Kidney Soybean Peas Cleaning Machine
Hebei Ruixue Grain Selecting Machinery Company Limited- Type：Seed Grain Processing Machine
- Application：Beans, Wheat, Grain, Peas
- Voltage：110-680V
- Press Materials：All Grain, Seed, Beans
- Condition：New
- Customized：Customized
Base Info
- Model NO.：5X-12
- Name：European Standard Mung Bean Kidney Soybean Peas Cl
- Model：5X-12
- Capacity：10 Tons Per Hour
- Power：6.7kw
- Layer：5
- Color：Designed
- Warranty：One Year
- Spare Parts：One Year
- Discount：Yes
- Tools：Yes
- Transport Package：Mill′s Standard
- Specification：ISO9001, TUV, SGS, CE, SONCAP
- Trademark：SYNMEC
- Origin：China
- HS Code：84371090
- Production Capacity：100 Sets,Month
Description
Basic Info.
Model NO. 5X-12 Name European Standard Mung Bean Kidney Soybean Peas Cl Model 5X-12 Capacity 10 Tons Per Hour Power 6.7kw Layer 5 Color Designed Warranty One Year Spare Parts One Year Discount Yes Tools Yes Transport Package Mill′s Standard Specification ISO9001, TUV, SGS, CE, SONCAP Trademark SYNMEC Origin China HS Code 84371090 Production Capacity 100 Sets/MonthProduct Description
Mung Bean Kidney Soybean Peas Cleaning MachineIntroduction:

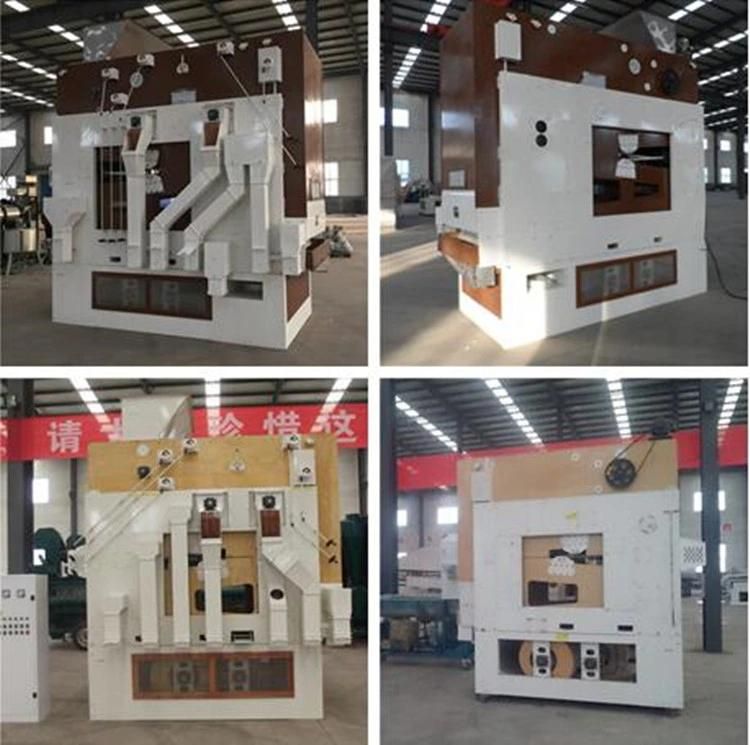

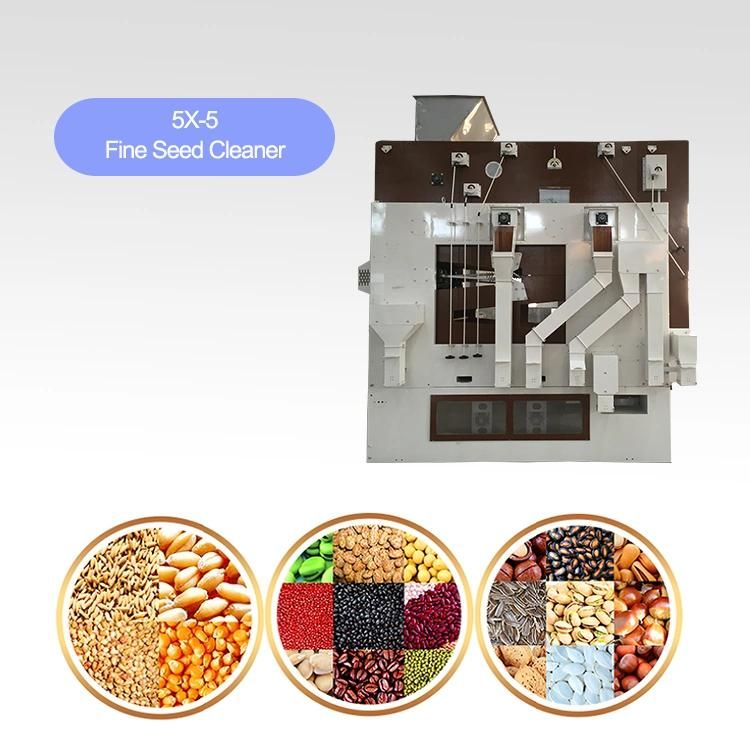

The 5X series seed cleaner is a universal machine well suited for pre- and fine cleaning many different species of grain and seeds.The standard design of the machine is provided with both pre- and after suction units. Quick screen changing from pre-cleaning into fine cleaning by the operator serves to optimize the cleaning tasks.The 5X series seed cleaner is a very competitive machine, both as regards price and capacity as well as function and operation.
Characteristics of 5X series seed cleaner
Easy and quick operation and screen changing
The screen boxes are made of wear resistant plywood, which is approved for food
Screen cleaning with special rubber balls
Built-in light.
Durable surface of the machine owing to high-quality powder lacquering
Specification of 5X series seed cleaner
| Model | 5X-5 | 5X-12 |
| Dimension(L×W×H) | 3200×1920×3600 mm | 3790×1940×4060 mm |
| Overall weight | 3250 kg | 3600 kg |
| Rated capacity | 5 t/h | 12 t/h |
| Overall air volume | 8200 m3 | 12520 m3 |
| External air blower | 4-72N0-6A, 7.5 kW | 4-79N0-6A, 11kw |
| Vibration sieve motor(gear motor) | 2.2 kW | 2.2 kW |
| Back lifting system motor | 3.0 kW | 3.0 kW |
| Feeding motor | 1.5 kW | 1.5kw |
| Total Power | 6.7 kW | 6.7kw |
| Layers and number | 4 layers,7 pieces | 5 layers,15 pieces |
