• Model NO.：QX130-2 QX140-2 QX140-3
• Product Name：Paddl Cleaning machine
• Service：Overseas Installation
• Line：Cassava Starch Production Line
• Energy：Electric
• Condition：New
• Installation：Yes
• Training：Yes
• Working Type：Continuous Work
• Useful Life：20 Years
• Price：Negotiable
• Dimension：7050*2300*2000 mm
• Weight：3850 Kg
• Capacity：10-50 T,H
• Speed of Rotor：21 R,Min
• Transport Package：Wooden Case
• Specification：Stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. QX130-2 QX140-2 QX140-3 Product Name Paddl Cleaning machine Service Overseas Installation Line Cassava Starch Production Line Energy Electric Condition New Installation Yes Training Yes Working Type Continuous Work Useful Life 20 Years Price Negotiable Dimension 7050*2300*2000 mm Weight 3850 Kg Capacity 10-50 T/H Speed of Rotor 21 R/Min Transport Package Wooden Case Specification Stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

cassava starch processing line paddle washing machine cassava starch cleaning making machinery

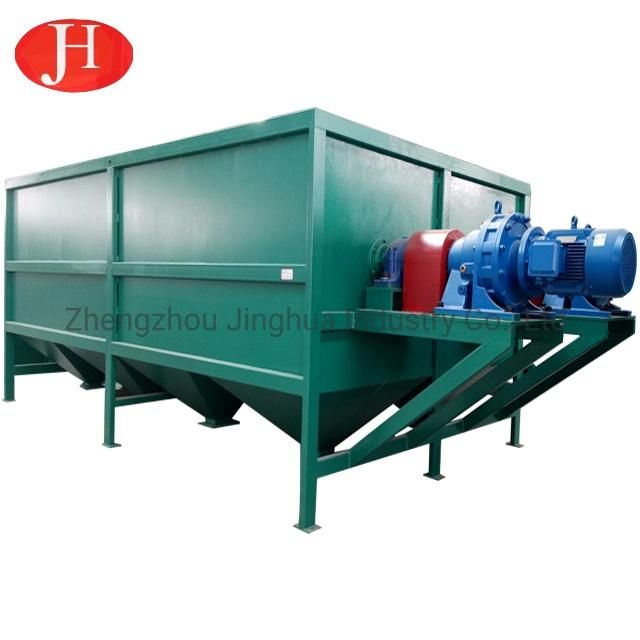

1.Introduction of paddle cleaning machine
Our machine adopts principles of countercurrent washing to cleaning out the mud. Sand and small stones effectively.  Rational method of feeding, it is very useful in cleaning cassava, sweet potato, potato and etc. Also our paddle cleaning machine is the important equipment widely used in starch processing machinery.

Features of paddle cleaning machine
1. Large capacity, can process raw material 10-20t/h.
2. Steady operation and low damage rate
3. Simple structure, effective cleaning and energy and water saving.
4. Widely used in cassava starch processing industry.

Main technical parameters

Model	QX130-2	QX140-2	QX140-3
Diameter of paddle(mm)	Φ1000	Φ1280	Φ1400
Speed of rotor(r/min)	21	21	21
Working length(mm)	6000	6000	6000
Power(Kw)	5.5x2	7.5x2	7.5x3
Capacity(t/h)	10-20	20-35	35-50

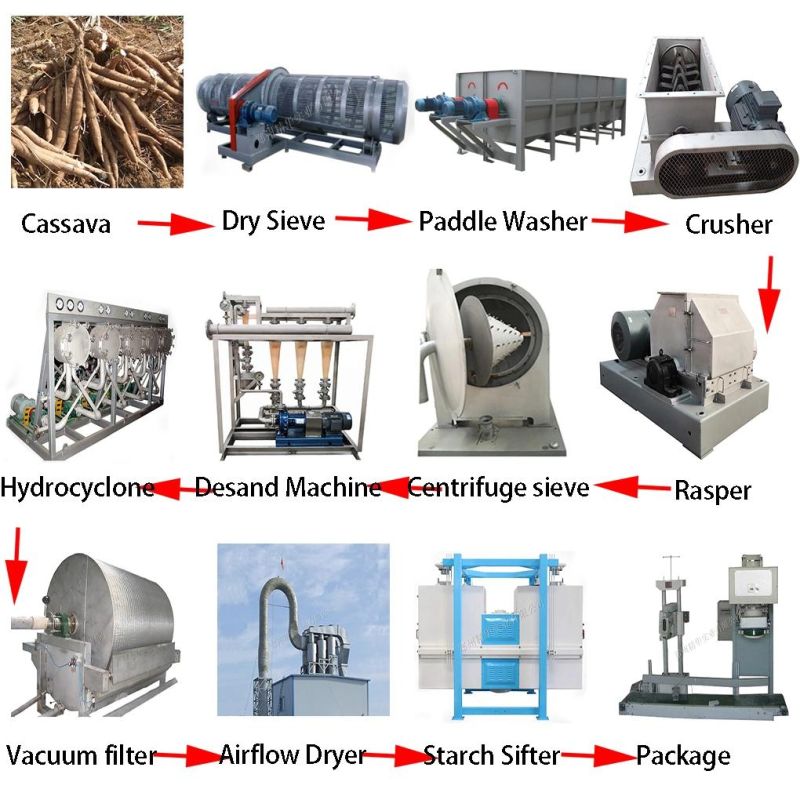

There are four steps to making starch
1.Cleaning:To remove the stone sand and from the raw material.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.

3.Our Service
1.After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;

2.After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.

3.After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.


4.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

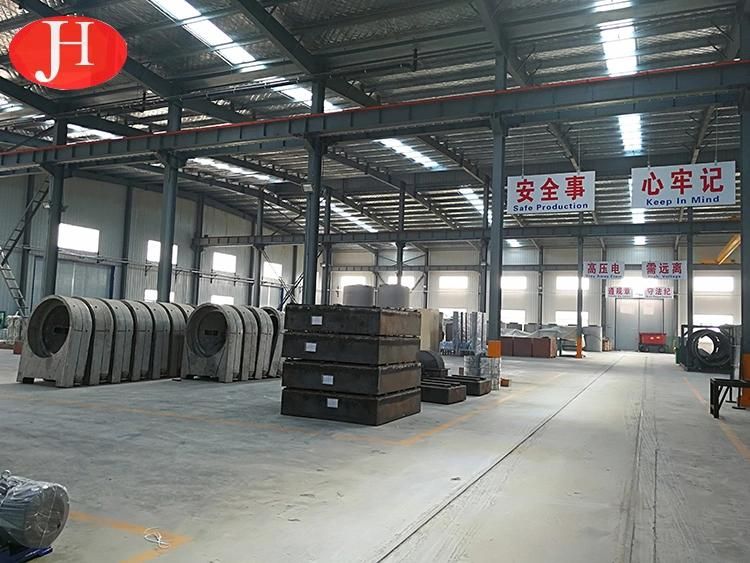

Our Workshop


Our Workers



5.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).



6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
