• Model NO.：LC-MBS45
• Power Source：Electric
• Automatic Grade：Automatic
• Usage：Water Beverage Food Bottle Tin Can Carton Box
• Transport Package：Standard Export Packaging
• Specification：Machine Size L18145*1600*2500mm
• Trademark：Young Chance Pack
• Origin：China
• HS Code：8422400000
• Production Capacity：1pieces,Month

Containers and specificationsProject Name: Full Automatic Complete Mineral Water 2000-20000bph Production LinePH≥4.6drinking watermaterialshapeFilling volume(ml)Filling level(mm)Neck typePET BottleSquare or Round Bottle100-2000mlDistance from bottle neck
According requestAs requestAdjustable specifications of the bottle typeMiddle Mould Base: Bottle diameter ≤105mm Bottle Height≤335mm Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.Container Label & Control ModePackaging systemPalletizing systemHot Melt Roll-Fed
PVC Shrink Label
Full Label/ Half Label
Manual / AutomaticPacking systemMin, Spec.Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer Manual
Film shrinker
Wrap Around packer
Robert Packing Machine1*2
2*3
3*4
4*6
3*5 User Ambient Conditions:Temperature:10~40ºC;Humidity:No dewUser Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%

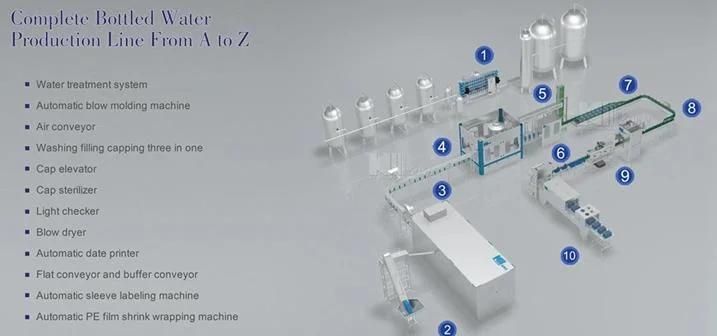

We provide the Complete plant turnkey project for pure water production line including:
1.Water Treatment System, (Water Filtration)
2.Bottle Blowing Machine,(Making plastic bottles)
3.Air Conveyor,(Transport empty bottles)
4.Water Filling Machine ,(Filling water into bottles)
5.Cap elevator, (Transport cap)
6.Blow dryer, (Blow dry water)
7.Flat Convey, (Transport bottle)
8.Code Sprayer,(Printing the date on the bottle water)
9.Labeling Machine ,(Labeling in bottled water)
10.Bottle Shrink Wrapping Machine, (package the bottle water)
11.injection molding machines,(for pet preform)

It is suitable for producing PET plastic bottles from: 250-2000ml;
Both round bottle and square bottle are available.

Material: PET Preform, Cap, Raw Water, PVC Label, Roll PE film

Bottling Line for Natural Mineral Drinking Water, Pure Water, Spring Water.

Flow chart :
Automatic bottle blowing machine --> Air conveyor system-->Washing,filling ,capping 3in1 machine-->Conveyor system-->Automatic sleeve labeling machine-->Automatic film shrink packing machine/Carton packing machine



Brief IntroductionMachine Dimension18145×1530×2500 mmShrinkage Tunnel Dimension3000×700×450 mm Packaging Speed70 Packs/Minute Conveying Belt Width: 610 mm
Voltage/Power: 380V /55KW
Working Air Pressure: 0.6-0.8 Mpa
Air Consumption: 0.3 m3/minute Packaging Form:One piece heat shrink film wrappingPackaging Material : LDP
Special solutions for Printed Shrink Film(with designed Logo& company information) Wrapping.
Specail solution for Auto Cardboard Sheet Placing+ Auto Shrink Film Wrapping. Special solution for Auto Cardboard Tray Folding + Auto Shrink Film Wrapping.


 Order Information
To help us make sure this model is suitable for you, please kindly provide the following information with your inquiry:
1) Details of your product (Dimensions, Photos and Drawings)
2) Packaging Combination for each pack (2×3, 3×4, 4×6 or others)
3) Packaging Capacity Required (How many bottles/cans for each hour on the current/planned production line)
4) Packaging Expectation (Photo of packed product shall be very helpful)
5) Packaging Automation Level (Semi-automatic or Complete Automatic)
6) The Layout Drawing of workshop (Optional, just help us prepare arrangement of the machine)
7) The Height of current production line (Optional, just help us confirm the height of conveying system)8) Other usful information which might helpful.
