• Model NO.：TSXM-30
• Contol System：Hand Control
• Name：Rotary Washing Machine
• Feature：Easy Operation
• Water Spray：High Pressure Spray System
• Usage：Vegetable and Fruit Washing
• Function：Washing Sterilizing
• Transport Package：According to Customer Requirement
• Specification：7000*1200*1320mm
• Trademark：TIANSHUN
• Origin：China
• HS Code：8438600000
• Production Capacity：100pieces,Year

Basic Info.

Model NO. TSXM-30 Contol System Hand Control Name Rotary Washing Machine Feature Easy Operation Water Spray High Pressure Spray System Usage Vegetable and Fruit Washing Function Washing Sterilizing Transport Package According to Customer Requirement Specification 7000*1200*1320mm Trademark TIANSHUN Origin China HS Code 8438600000 Production Capacity 100pieces/Year

Product Description

1.- Vegetable Fruits Washer Dryer Apple Washing Drying Machine

Structure of Automatic Ginger Rotary Washing Machine:

Rotary washing machine is composed of frame, transmission reducer, conveying hollow screw, rotary drum, spray pipe, water collecting device, high pressure nozzle and others.


Fruits washing and drying process guide:

Fruits brush washing machine works with both a combination of high-pressure water spraying and brush roller rolling,which can achieve the effect of cleaning and removing impurities for round or oval shape fruits and vegetables,such as apple,peach,pear,
kiwi fruit,mango,lemon,tomato,carrot, onion,etc.

The materials pass on the brush roller,you can get good cleaning result by this machine with the high pressure spray water and the rolling motion of the brush roller.The product can be dewatered by vibration sieve or cool air drying equipment to achieve the sufficient and quick water removal result,so can greatly improve the drying efficiency after the washing process.So as to save enough time for the subsequent packaging or other deep process.

The machine has the bulk capacity for washing the normal fruits,can meet the production of vegetables and fruits plants.
The equipment is equipped with 15-25 pieces of brush rollers,the quantity can also be customized.




2.- Applications of Vegetable Fruits Washer Dryer Apple Washing Drying Machine

Washing the apple, some fruits, and so on.




3.- Technical Index of Vegetable Fruits Washer Dryer Apple Washing Drying Machine


No.	Item	Value	Value
1	Model	TSXM-30	TSGP-50
2	Overall Dimensions	2300*900*900mm	4970*760*1310mm
3	The Voltage	380V/50HZ	380V/50HZ
4	Power	2.2KW	4.5KW
5	Effective dimensions	2800*800mm	4970*560mm
6	Output	300-500KGS/Hour	300-500KGS/Hour



4.- Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.

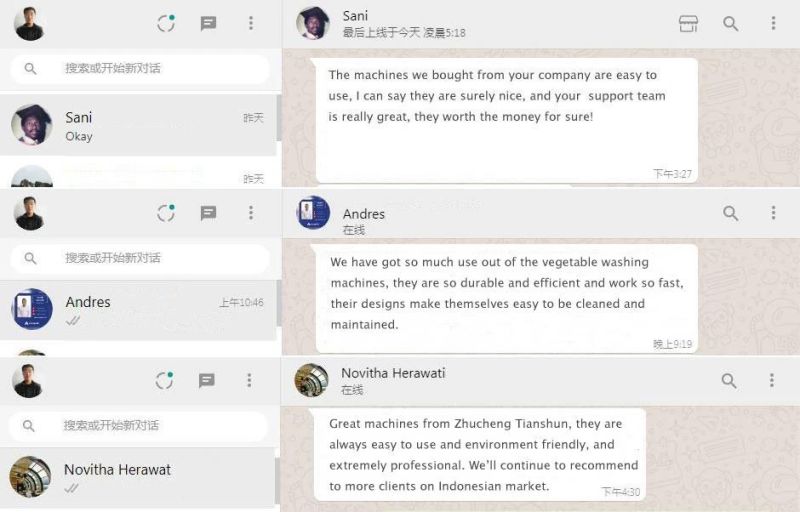

5.- Customers Review

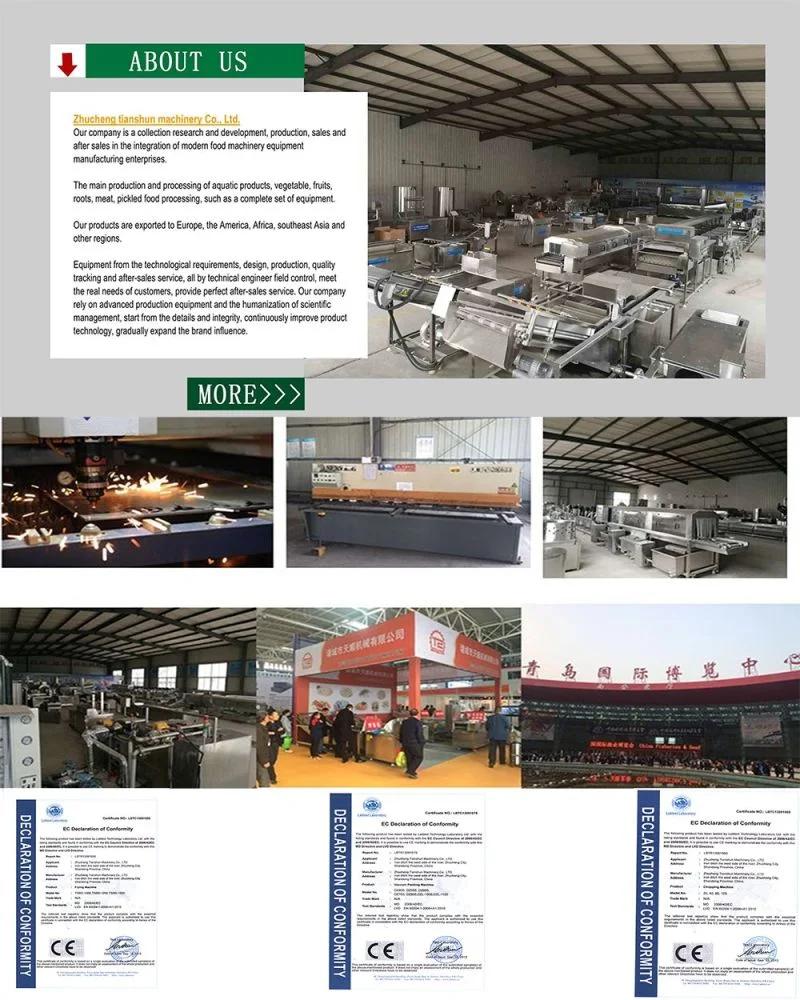

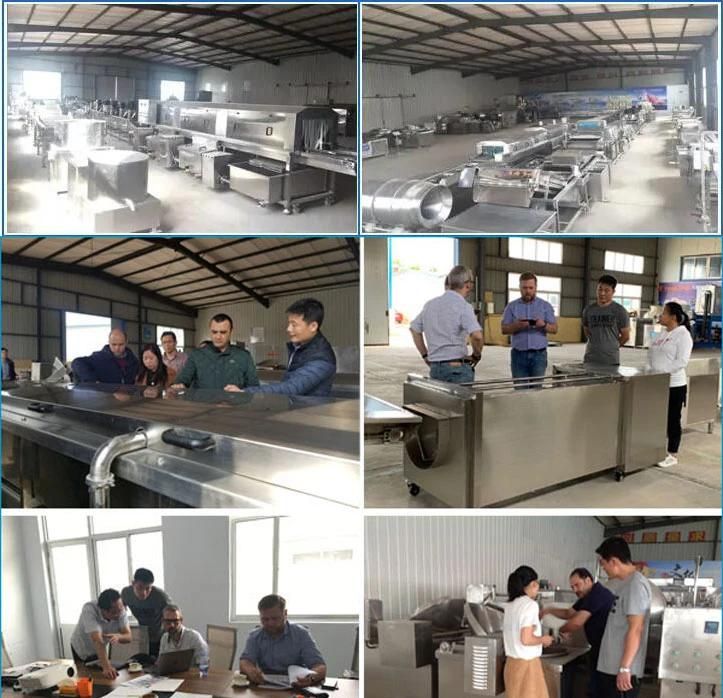

6.- Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food machinery and complete production lines, includes:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Fruit drying machine,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food starching machine,
Vacuum packing machine,
Donuts machine,
Complete production line, potato chips production line, french fries production line, plantain chips production line.


All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
