• Model NO.：WSLX-5000
• Key Word 2：Fruit Extruder
• Key Word 3：Juicer Making Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：1500-10000kg H

Basic Info.

Model NO. WSLX-5000 Key Word 2 Fruit Extruder Key Word 3 Juicer Making Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 1500-10000kgH

Product Description

     Industrial lemon orange squeezer press machine fruit vegetable crusher and juicer machine





Introduction of carrot juice extractor
1. This machine can completely crush fruits, squeezing juice and residue discharging automatically. That crush the fruits into 3~10mm particle. Then passsing the crushed material into spiral system, which improves the juicing effect.
2. This jucier machine is mainly suitable for varieties of berries and all kinds of juicy vegetables, such as for pineapple, apple, pear, orange, mulbery, grape, tomato, ginger, celery and others.


Product Description
Application:
Spiral Juice Extractor is applicable to tomato, pineapple, carrot, apple, aloe, cactus, fruit and vegetable juice press. By the axis of the screw propulsion type extrusion, with juice, discharging function. The material of wet part is high quality stainless steel


working principle of carrot juice extractor
1. The main structure is the crushing device which installed above the inlet hopper.There are four groups running knives and one group stationary knife. And running knife cut the fruit by rotating with axis to 2-5mm piece and then into the spiral juicing part directly to making juice.

2. The main structure of the juicer is the helix, the helix diameter becomes more and more bigger and screw pitch is less and less smaller near dreg hopper.While the material impelled by helix, as the pressure exists, the material which behind crushing to be broken.

3. The direction of helix is clockwise as the arrow direction. Add the material from inlet hopper and pressed by the helix. The juice then flow to the collection tank at the bottom and dreg expel from the outlet on the right.

4. When the gap decrease, the dregs discharge rate will reduce. When the volume of the gap is too samll, particle of dregs will be extrude through the filter with juice. Therefore the gap depends on the demand of client's requirement about the juice.


Model	WSLX-1500	WSLX-5000	WSLX-10000
Productivity (kg/H)	1500	5000	10000
Motor power	5.5kw	7.5KW	11KW
Screw diameter	260mm	420mm	450mm
Sieve diameter	2 mm	2 mm	2 mm
weight	800kg	2000KG	2445KG
Dimension	2500X600X900 Mm	3500*1000*1480 mm	3740*1140*1785 mm

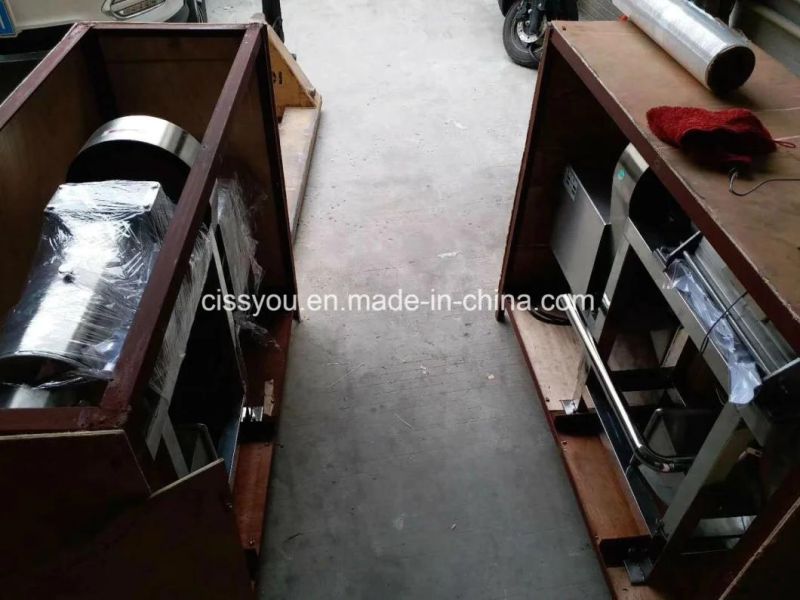

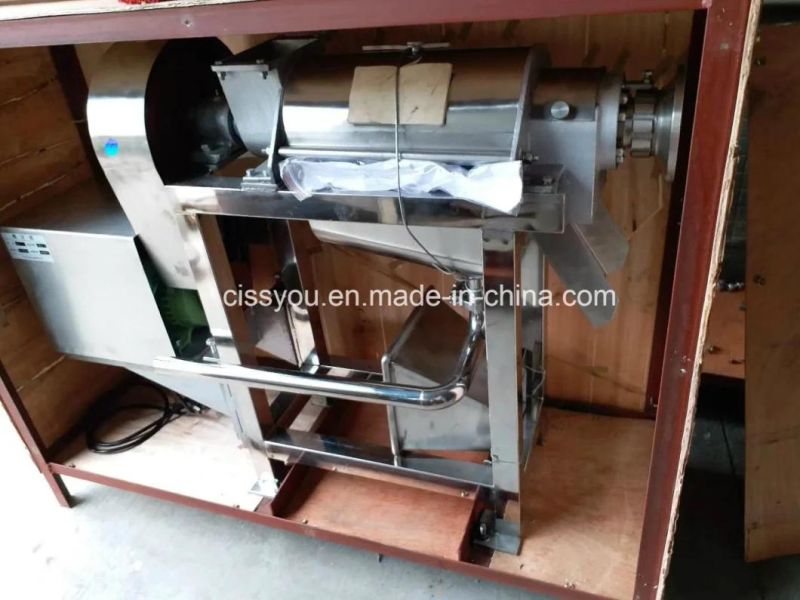

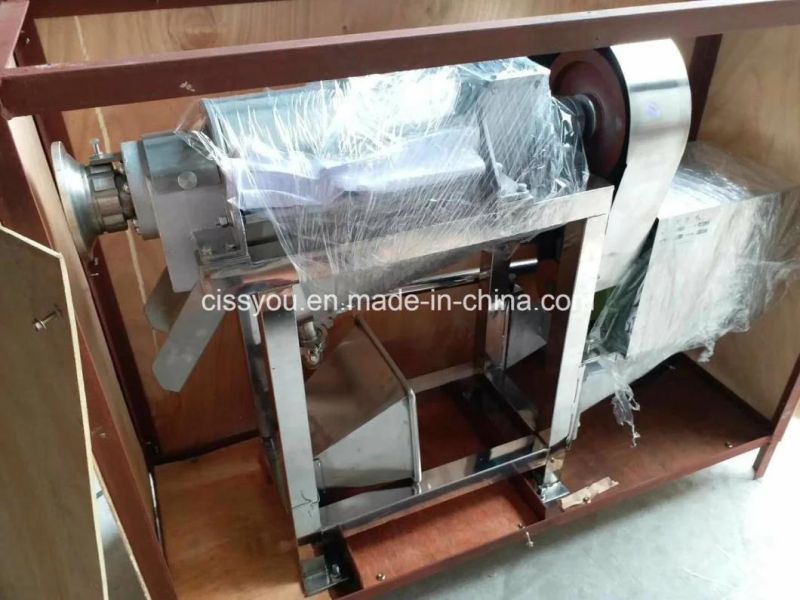

Packing&Shipping for  Macchina per fare il succo di frutta commerciale

1. All the machines will be wrapped up with plastic film first .

2. According to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)

3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
