• Model NO.：WSLX series
• Key Word 2：Fruit Extruder
• Key Word 3：Juicer Making Machine
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：1500-10000kg H

Basic Info.

Model NO. WSLX series Key Word 2 Fruit Extruder Key Word 3 Juicer Making Machine Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 1500-10000kgH

Product Description

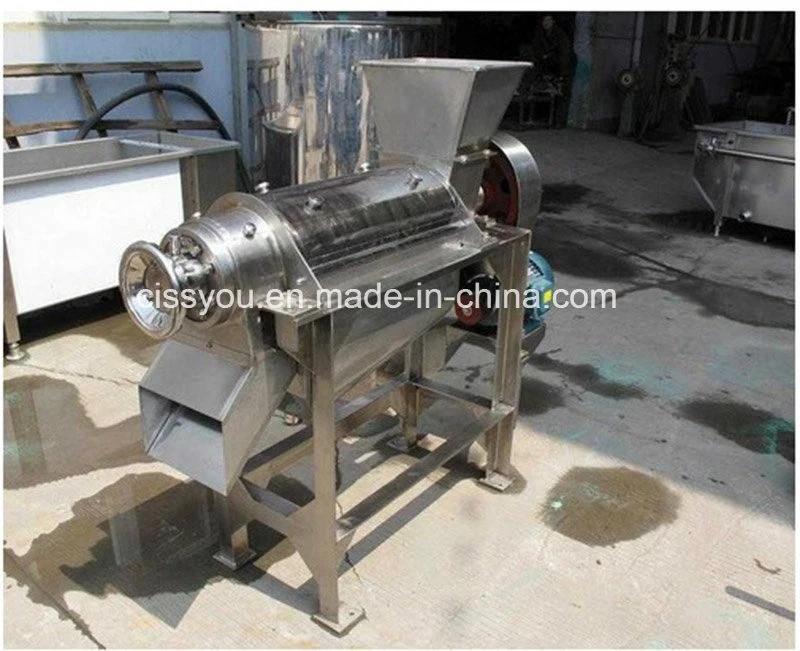

    Industrial lemon orange squeezer press machine fruit vegetable crusher and juicer machine





Introduction of carrot juice extractor
1. This machine can completely crush fruits, squeezing juice and residue discharging automatically. That crush the fruits into 3~10mm particle. Then passsing the crushed material into spiral system, which improves the juicing effect.
2. This jucier machine is mainly suitable for varieties of berries and all kinds of juicy vegetables, such as for pineapple, apple, pear, orange, mulbery, grape, tomato, ginger, celery and others.


Product Description
Application:
Spiral Juice Extractor is applicable to tomato, pineapple, carrot, apple, aloe, cactus, fruit and vegetable juice press. By the axis of the screw propulsion type extrusion, with juice, discharging function. The material of wet part is high quality stainless steel

Working way:

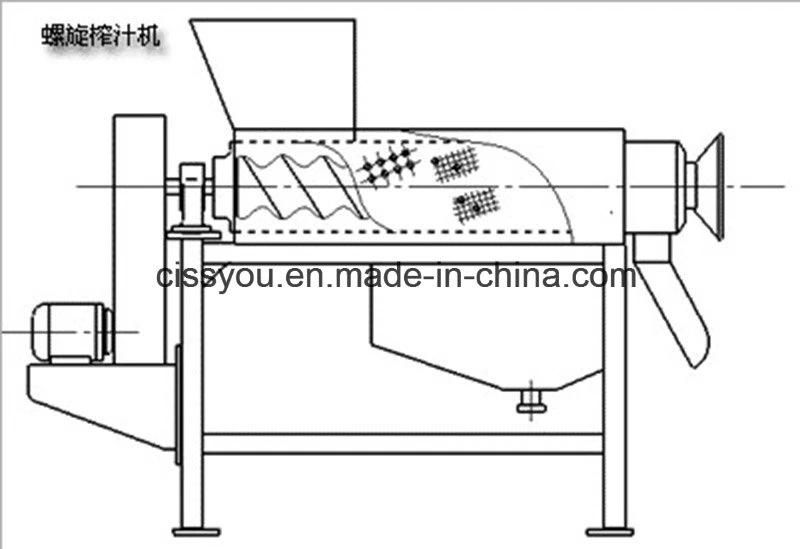

Screw shaft clockwise rotation along the direction of the Slag outlet, bottom diameter slowly become big but the Pitch narrows gradually, when material pushed by the screw shaft, Due to the spiral chamber narrows gradually, thus forming the material press. Fruit and vegetable products join the hopper,
The screw shaft propulsion and compression, by squeezing out the juice through a filter into the bottom of a juice holding device, and the slag by the axis of the screw and regulating head taper portion is formed between the annular gap discharge, pressure head can adjust the size of the gap, to adjust the slag resistance, can change the slag rate

Model	WSLX-1500	WSLX-5000	WSLX-10000
Productivity (kg/H)	1500	5000	10000
Motor power	5.5kw	7.5KW	11KW
Screw diameter	260mm	420mm	450mm
Sieve diameter	2 mm	2 mm	2 mm
weight	800kg	2000KG	2445KG
Dimension	2500X600X900 Mm	3500*1000*1480 mm	3740*1140*1785 mm

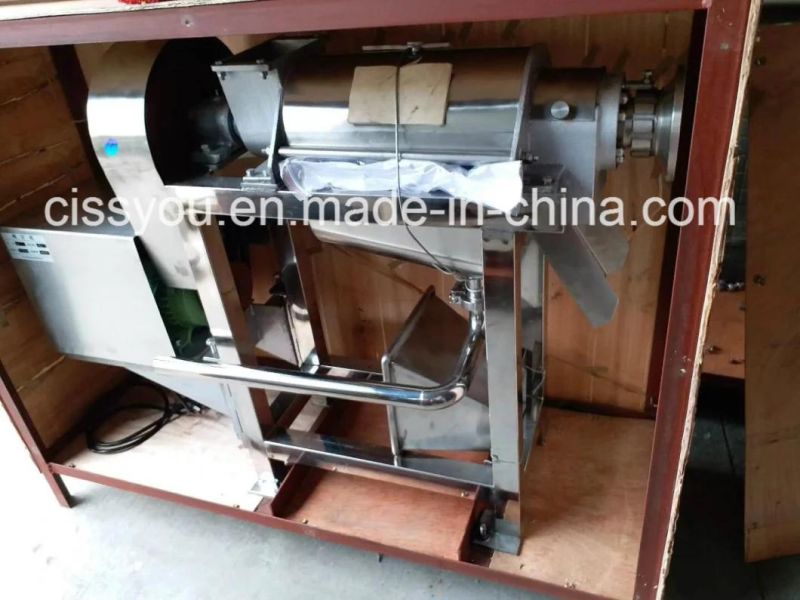

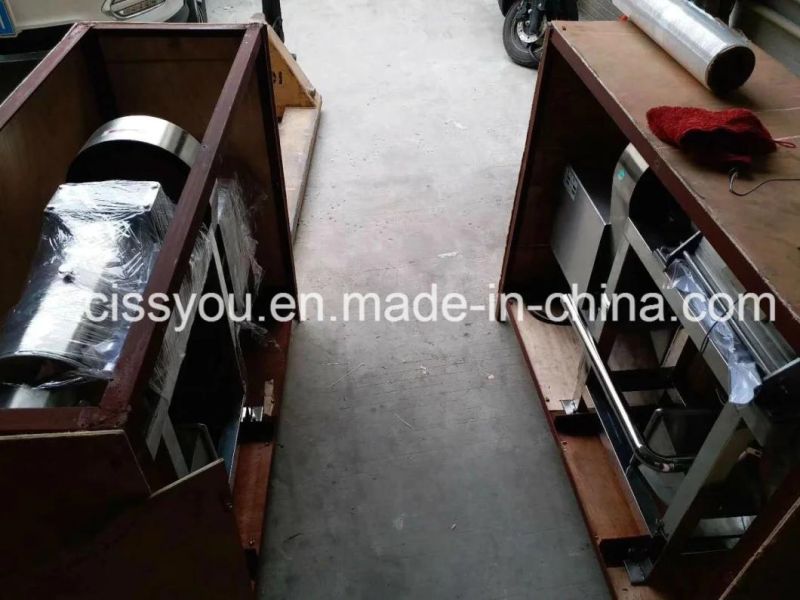

Packing&Shipping for  Macchina per fare il succo di frutta commerciale

1. All the machines will be wrapped up with plastic film first .

2. According to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)

3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.
