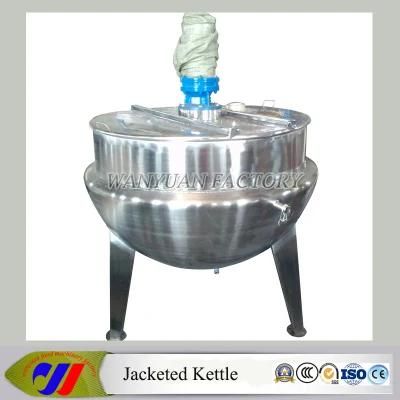

Steam Heating Jacketed Cooking Mixer with Agitator Cooking Vesel
Wenzhou Longwan Wanyuan Food Machinery Factory- Type：Cooking and Mixing
- Voltage：110V,220V,380V,415V
- Power：1.5KW
- Customized：Customized
- Jacketed Kettle Usage：Cooking and Mixing
- Heating Type：Electric Heating
Base Info
- Model NO.：DG-500
- Way of Discharge：Tilting for Discharge , Bottomdischarge
- Agitator / Stirrer：with , Without Agitator, Customized
- Mixing Scraper：Customized
- Transport Package：Wooden Case
- Specification：SUS304
- Trademark：Wanyuan
- Origin：Wenzhou China
- HS Code：8479819000
- Production Capacity：5000
Description
ItemsDG-50 DG-100 DG-200 DG-300 DG-500 Pot Diameter mm Φ600 Φ700 Φ800 Φ900 Φ1100 Depth mm 450 500 550 650 850 Total capacity L 50 100 200 300 500 Pipe Size 1/2" 3/4" 3/4" 3/4" 3/4" Stirring power kw 0.75 1.1/1.5 1.1/1.5 1.5/1.75 1.75/2.2 Electrical Heating Powerkw 12 18 24 24 30 Boiling timemin ~7 ~10 ~13 ~16 ~26 Heat transfer area M2 Design temperature C 180 180 180 180 180 Max working temperature C 151 151 151 151 151 Design pressureMPa Max working pressureMPa 0.095 0.095 0.095 0.095 0.095 Maximum slope Angle 90° 90° 90° 90° 90° Overall dimensions Length mm 1000 1100 Width mm 650 850 950 1150 Height mm 1350 1400 1500
