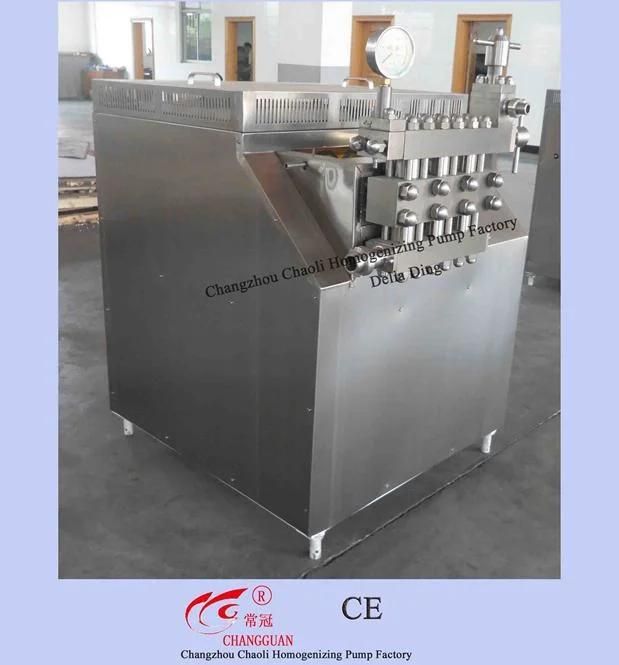

2000L/H Milk High Pressure Homogenizer (GJB2000-25)
Changzhou Chaoli Homogenizing Pump Factory- Application：Milk, Yogurt, Milk Powder, Cheese
- Customized：Customized
- Capacity：2000L,H
- Max Working Pressure：20MPa(200bar)
- Power：18.5kw
- Voltage：380V, 50Hz, 3 Phase
Base Info
- Model NO.：GJB2000-25
- Material：Stainless Steel 304
- Transmission：V Belt Transmission
- Transport Package：Plywood Case
- Specification：CE
- Trademark：CHANGGUAN
- Origin：Changzhou
- HS Code：8479820090
- Production Capacity：300set,Year
Description
Basic Info.
Model NO. GJB2000-25 Material Stainless Steel 304 Transmission V Belt Transmission Transport Package Plywood Case Specification CE Trademark CHANGGUAN Origin Changzhou HS Code 8479820090 Production Capacity 300set/YearProduct Description
2000L/H Milk High Pressure Homogenizer (GJB2000-25)Homogenizer is a kind of versatile equipment which can make liquid substance into high pressure spray or homogeneous and finer material. It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development
Pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process.
| Item | Model | Capacity(L/H) | Rate pressure(Mpa) | Max.working pressure(Mpa) | Power(Kw) | Weight(kg) | Size(cm) |
| GJB500-25 | 500 | 25 | 20 | 5.5 | 670 | 100x75x110 | |
| GJB1000-25 | 1000 | 25 | 20 | 7.5 | 670 | 100x75x110 | |
| GJB1500-25 | 1500 | 25 | 20 | 7.5 | 720 | 100x75x110 | |
| GJB1000-30 | 1000 | 25 | 20 | 11 | 720 | 100x75x110 |
