• Model NO.：GD300L
• Electric Power：27kw,380V
• Total Length：19m
• Max Candy Weight：as Per as Candy Size
• Room Condition：Temp20~25°c
• Transport Package：Wooden Case
• Specification：CE, ISO9001
• Trademark：TGmachine
• Origin：China
• HS Code：84382000
• Production Capacity：300kg,H

Basic Info.

Model NO. GD300L Electric Power 27kw/380V Total Length 19m Max Candy Weight as Per as Candy Size Room Condition Temp20~25°c Transport Package Wooden Case Specification CE, ISO9001 Trademark TGmachine Origin China HS Code 84382000 Production Capacity 300kg/H

Product Description

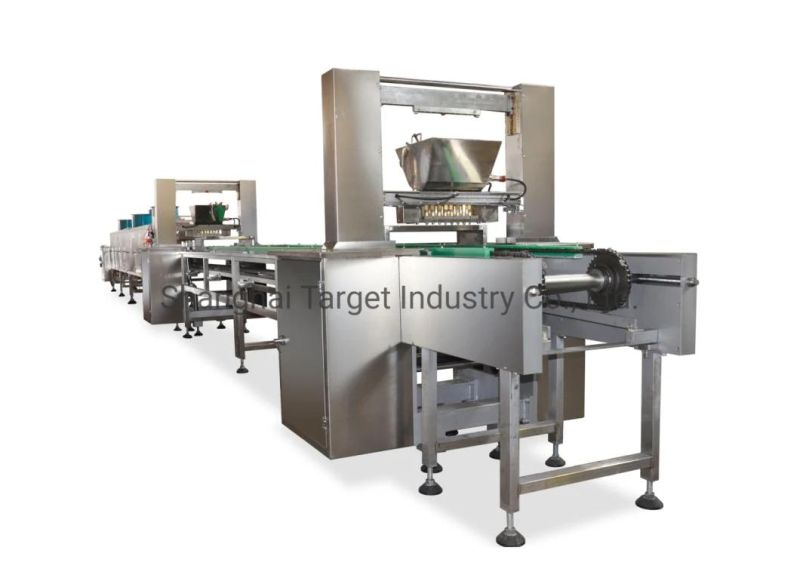

GD300L Full Automatic Servo Driven Galaxy Lollipop Depositing Line With PLC Contorl

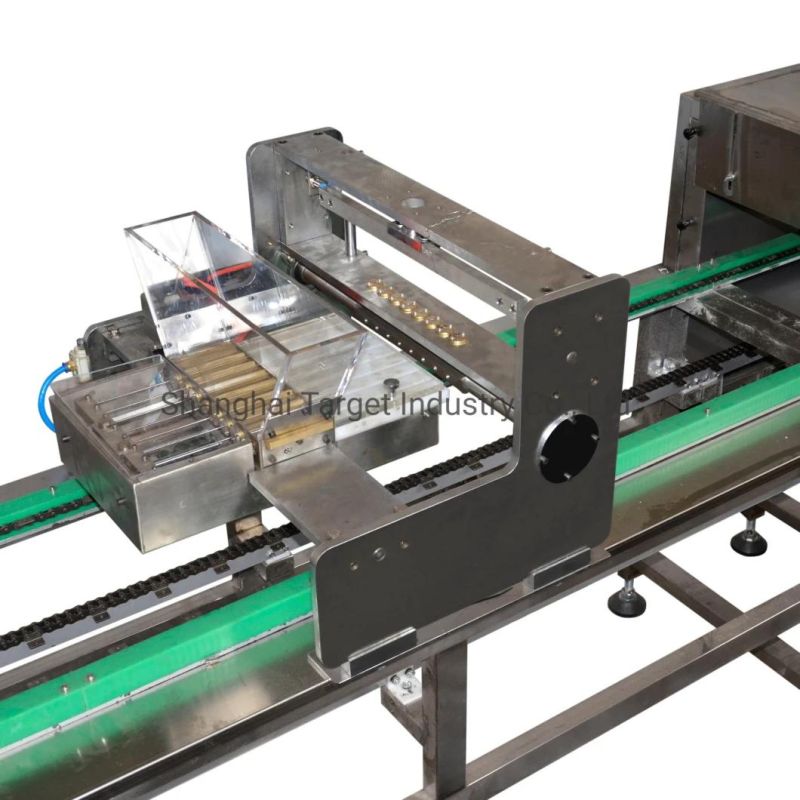

Automatic stick putting equipment and moulds:

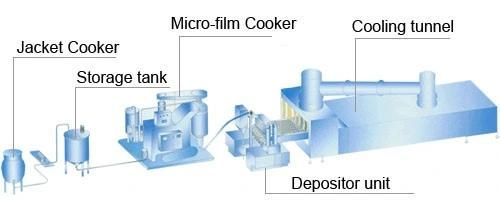

PROCESS FLOWING LAYOUT CHART:




TECHNICAL SPECIFICATIONS:

Model	GD300BX
Output(kg/h)	300
Max lollipop weight	As per lollipop size.
Speed	25~30 n/min
Steam requirement	250kg/h, 0.5~0.8MPa
Compressed air requirement	0.2m3/min, 0.4~0.6MPa
Electric power needed	27kW/380V
Total length	189meters
Gross weight	5,000 kgs

Warranty:
The seller guarantees the quality of the products for 12 months since the date of installation. During the warranty period, any problems/defaults happen on the hard parts of the machinery, the buyer will replace the parts at the seller's cost (FREE). If the defaults are aroused by the defaulted operations, or the buyer needs the technical assistance for the processing problems, the buyer should be responsible for all the cost and their allowance.
