Hot Sale Multicolor Swirl Rainbow Lollipop Production Line
Shanghai Target Industry Co., Ltd.- Transport Package：Wooden Package
- Trademark：TGmachine
- Origin：Shanghai
Base Info
- Model NO.：STL300
- Production Capacity：25sets,Year
Description
Model
STL300
Production capacity
100~150 kg/h
Steam consumption Steam pressure
150 kg/h
0.8 Mpa
Electric power needed
21kW/380V
Conditions needed for the cooling system:
1. Room temperature
2. Humidity
20~25ºC
55%
Length of the whole line
15m
Gross weight
Approx.7000 kg

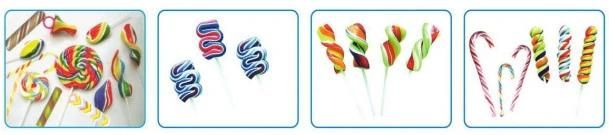

lollipop sample
FLOW CHART DIAGRAM:
Sugar dissolvingà Syrup storageàContinuous cookingà Cooling( 90) à Moving to warming and adding color & flavor à Kneading à Batch roller à Rope sizer à Embossing and cutting à Twisting à Forming à Cooling à Packing
MAIN EQUIPMENT LIST:
MODEL: STL300
S/N
EQUIPMENT
SPEC.
UNIT
1
FIXED COOKER
200 L
1 PC
2
GEAR PUMP 1''
1"
1 PC
3
STORAGE TANK
200L
1 PC
4
CONTINUOUS VACUUM COOKER MODEL:VBC200
150KGS/H
1SET
5
COOLING TABLE
SUS 304
1 PC
6
WARMING TABLE
SUS 304
1 PC
7
BATCH ROLLER
1 SET
8
ROPE SIZER
1 SET
9
EMBOSSING MACHINE
1 SET
10
AUTOMATIC TWISTING MACHINE
150pcs/min
1 SET
11
AUTOMATIC FORMING MACHINE & CLIMBING CONVEYOR
1 SET
12
COOLING CONVEYOR
6 meters
1 SET
13
PACKING MACHINE
150pcs/min
1 SET
Packaging & Shipping
Wooden Packing:
1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap
c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.
Our Services
After-Sale Service For Abroad Customers:
1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.
