• Model NO.：50-60 Tons
• Condition：New
• Customized：Customized
• Transport Package：Wooden
• Specification：internatioal standard
• Trademark：pinyang
• Origin：Hubei
• HS Code：8437800000
• Production Capacity：100sets,Year

Basic Info.

Model NO. 50-60 Tons Condition New Customized Customized Transport Package Wooden Specification internatioal standard Trademark pinyang Origin Hubei HS Code 8437800000 Production Capacity 100sets/Year

Product Description

Specification

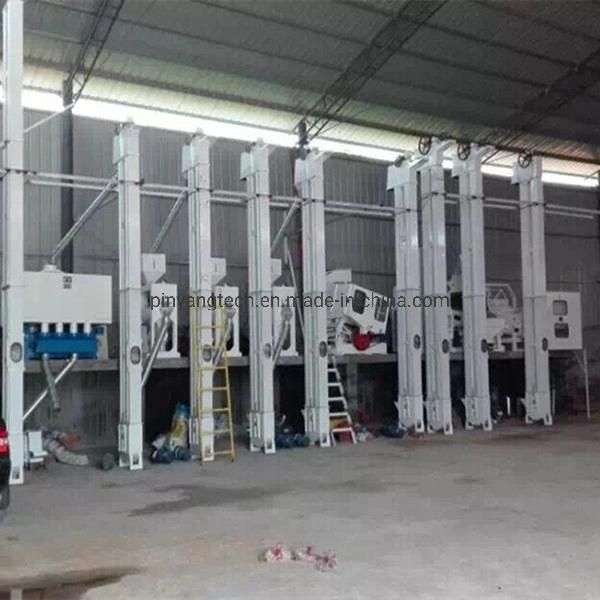

This rice mill machine is choose excellent vibratory sieve,destoner- rubber roller husker, paddy separator, rice whitener, white rice plan sifter and high efficient fo the bucket elevator and electrical console of complete sets of rice milling machine, whole process of rice cleaning, hulling, husking, roughing and milling is carried out automatically and continuously.


The features

1. This complete set rice mill machine cover an area of an area small, small investment, and apply the latest technology of rice milling, improve the milled rice rate, reduce broken, lower temperature meters, good bran removal effect,  stable mechanical performance, convenient operation and maintenance.

2. Every major operation unit is driven by an indepandent ganerator, which is controlled by an independent control panel.

3. Craft work can be designed specially, combined flexibly and processed into different kinds of excellet rice according to different client's need.

4. The device is coated with a technique of static spray coating; the coating looks smooth and finr and is Weatherproof.

5. The feeding pipes are made of smooth glass, which looks good and very durable, too.

6. What's more, it is environment-friendly inters of adopting high-effective dust collecting unit to get rif of dust.







Main machine list


Item	Description of goods	quantity
1	TQLZ100                 Vibratory Sieve	1
2	TQSX100                 De-stoner	1
3	MLGT25B                Auto Husker	2
4	MGCZ100*10          Paddy Separator	1
5	TWA18C                 Whitener	3
6	MJP100*4               White rice plan sifter	1
7	MPG18.5                 Mist Polisher	1
8	A3CCD                   color sorter	1
9	DCS50H                Packing machinery	1
10	DTG20/11             Bucket Elevator	5
11	DSTG-6            Low speed gear box Elevator	10

Details Information
1. TQLZ100 Vibratory sieve can remove large, middle, small and light impurties from grain simultaneously; Plane rotary movement has higher efficiency; Smooth operation and long service life; Multiple sizes and specifications to meet different requirements; Suitable for assorted grain such as rice, wheat, maize and bean etc.

2. TQSX100 de-stoner separetor stones and heavy impurties from rice utilizing bulk density difference. It is mainly used to separete the heavy impurties such as stone, mud and etc from rice, wheat, and other grains. Based on different gravities between grains ans grain-sized stones.

3. MLGT25B Husker adopting  a new vibratory feeding system. Stepleess adjustment could be done to the vibration frequency according to actual production. Feeding looks like waterfall, big and uniform. Backed up shedding plate automatic tracking rubber roll devices to ensure feeding accuracy,making operation of rubber roll optimal.

4. MGCZ100*10 paddy separator is suitable for the grading and separation of brown rice and milled rice high efficiency, durable, stable operation, low maintenance  requirements, lower energy consumption.

5. TWA18C Whitener, new structure, good mechanical stability and easy disassembly. Higher pressure of suction for milling so as to make brokens less, rice higher quality and bran fewer. Feeder device micro-adjusted guarantees rice flow enter into milling chamber stably and evenly. Due to adopt feeding with tangent and direction-followed model, the machine can acquire maximum capacity.

6. MJP100*4 Rice plan sifter can shift milled rice efficiently and accurately into several classes: head rice, large broken, medium broken, samll broken and etc.

7. MPG18.5 Mist polisher is used for fine processing of rice. By processing, it can effectively remove the bran powders in the rice, improve the oxidation resistance capacities of rice, make the processed rice clean and fresh and extend the length for presservation, after which the processed rice can be eaten as washed rice.

8. A3 CCD color sorter, could completely resolve the rejection difficulties of those different color granules, mildewed granules and faint yellow sopy of rice, improve quality and guarantee foods security thereby.
