• Model NO.：WY
• Manhole：with
• Transport Package：Wooden Case
• Origin：Wenzhou China

Basic Info.

Model NO. WY Manhole with Transport Package Wooden Case Origin Wenzhou China

Product Description

250L single layer stainless steel storage tank

Structure characteristics:
1. Made of single-layer,double layer or three layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.
4.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly.
Thermometer (According to customer requirements).
Ladder (According to customer requirements).
Liquid level meter and level controller (According to customer requirements ).
Eddy-proof board

Now please look at the following storage tank picture:

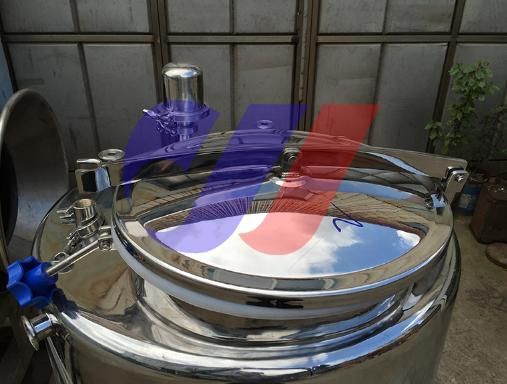

Top of storage tank, you can see the effect of mirror polishing.

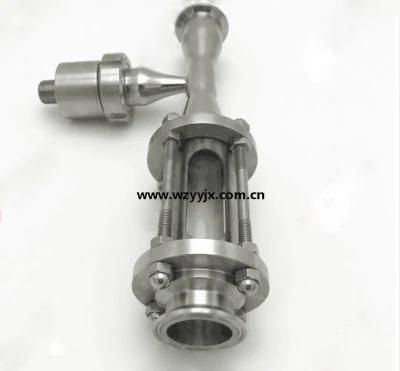

Stainless steel storage tank water level meter

 Specification of stainless steel storage tank:

Effective volume	(D*H) Dimension of tank	(H) Total height	Diameter of inlet& outlet
(L)	(mm)	(mm)	(mm)
500	840*1000	2250	38
600	920*1000	2300	38
700	990*1000	2300	38
800	950*1220	2500	38
900	1010*1220	2500	38
1000	1060*1500	2850	51
1500	1160*1500	2850	51
2000	1340*1500	2900	51
3000	1410*2000	3400	51
4000	1620*2000	3450	51
5000	1810*2000	3500	51
6000	1980*2000	3550	51
7000	1930*2440	4000	51
8000	2060*2440	4000	51
9000	2180*2440	4050	51
10000	2300*2440	4050	51
12000	2270*3000	4600	51
15000	2530*3000	4700	51
20000	2640*3660	5400	51
