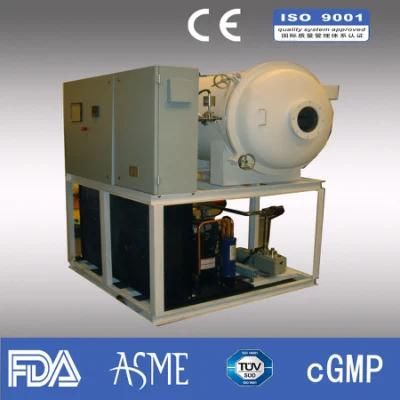

• Model NO.：TFDS100
• Standard Feed Capacity：1000kg
• Transport Package：Seaworthy and Land Transportation Packing
• Specification：CE, cGMP
• Trademark：Lyomac
• Origin：Shanghai
• HS Code：8419399090
• Production Capacity：1 Set Per 3month

       Project ModelTFDS20TFDS35TFDS50TFDS70TFDS100Effective drying aream320.634.952.369.8104.7Standard feed capacityKg/one time2003505007001000Tray sizemm650*610*37Tray form One time impact briquetteTray quantity 5288132178260Heating plate quantity 2824242424Heating plate sizemm1380*570*162710*570*164040*570*165370*570*164015*570*16Trolley quantity 12346Cylinder internal diametermmØ2200Cylinder wall thicknessmm10Quantity of cooling waterm3/h2.54.56.5913Max stream consumption each cylinderKg/h60105150210300Cold trap max ice absorb capacityKg/one time>270>475>675>945>1350

Operational parts:

1.CIP(cleaning in place) and SIP(Sterilization in place) system.
2.Computer based SCADA system, all data can be recorded by table or curve type, easily print out for preservation.
3.Adjustable shelf space mechanism.
4.Vial stoppering system.

Others:

Because of the limit of  our description, some important files and information we are not supply. The above we present is just a part of our products, If you want to know more about our products, you could visit our website or send us message, we may contact you in the first time.
