• Model NO.：KQ
• Name：Stainless Steel Vertical Type Milk Storage Tank F
• Refrigerant：R404A
• Compressor：USA Copeland
• Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
• PU Insulation Wall Thickness：70mm
• Outside Shape：Vertical and Horinzontal
• Delivery：10 Days
• Factory：Shanghai China
• Material：SS304 ,SS316
• Usage：Dairy Industry
• Working Life：More Than 10 Years
• Speed of Mixer：36rpm
• Motor Brand：ABB ,Siemens ,China Brand
• Insulation Wall：50mm
• Cleaning：CIP Spray Ball
• Transport Package：Wooden Box
• Specification：cuostomized
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

Basic Info.

Model NO. KQ Name Stainless Steel Vertical Type Milk Storage Tank F Refrigerant R404A Compressor USA Copeland Fresh Bulk Milk Cooling and Storage 300litres to 10000litres PU Insulation Wall Thickness 70mm Outside Shape Vertical and Horinzontal Delivery 10 Days Factory Shanghai China Material SS304 /SS316 Usage Dairy Industry Working Life More Than 10 Years Speed of Mixer 36rpm Motor Brand ABB /Siemens /China Brand Insulation Wall 50mm Cleaning CIP Spray Ball Transport Package Wooden Box Specification cuostomized Trademark KQ Origin China HS Code 8479820090 Production Capacity 1000

Product Description

Stainless Steel Vertical Type Milk Storage Tank For Australia New Zealand





ITEM	Vessel Capacity(L)	Refrigeration power (W)	Rotation speed	Matched power	L× W× H	Refrigerant	Power supply
LH-M0.5	500	5322	33r/min	3KW	2200× 1350× 1150	R404A(R22)	380V/3/50Hz
LH-M1	1000	8842	33r/min	4.5KW	2200× 1350× 1550	R404A(R22)	380V/3/50Hz
LH-M1.5	1500	9214	33r/min	5KW	2200× 1200× 1750	R404A(R22)	380V/3/50Hz
LH-M2	2000	16221	33r/min	6KW	3300× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M2.5	2500	16221	33r/min	7KW	3700× 1450× 1500	R404A(R22)	380V/3/50Hz
LH-M3	3000	17221	33r/min	7KW	3950× 1500× 1700	R404A(R22)	380V/3/50Hz
LH-M4	4000	21500	33r/min	14kw	3950× 1900× 1850	R404A(R22)	380V/3/50Hz
LH-M5	5000	28442	33r/min	14KW	4200× 2100× 2000	R404A(R22)	380V/3/50Hz
LH-M6	6000	32000	33r/min	14KW	4200× 2100× 2200	R404A(R22)	380V/3/50Hz
LH-M8	8000	41668	33r/min	19KW	5200× 2200× 2150	R404A(R22)	380V/3/50Hz
LH-M10	10000	51360	33r/min	23KW	6000x2200x2150	R404A(R22)	380V/3/50Hz
LH-M12	12000	51360	33r/min	23KW	6000x2200x2300	R404A(R22)	380V/3/50Hz
LH-M15	15000	65200	33r/min	30KW	7000x2200x2400	R404A(R22)	380V/3/50Hz

Milk cooling & storage. Milk cooling & storage cooling tank and control unit. Rapid and efficient milk cooling is essential for preserving milk quality

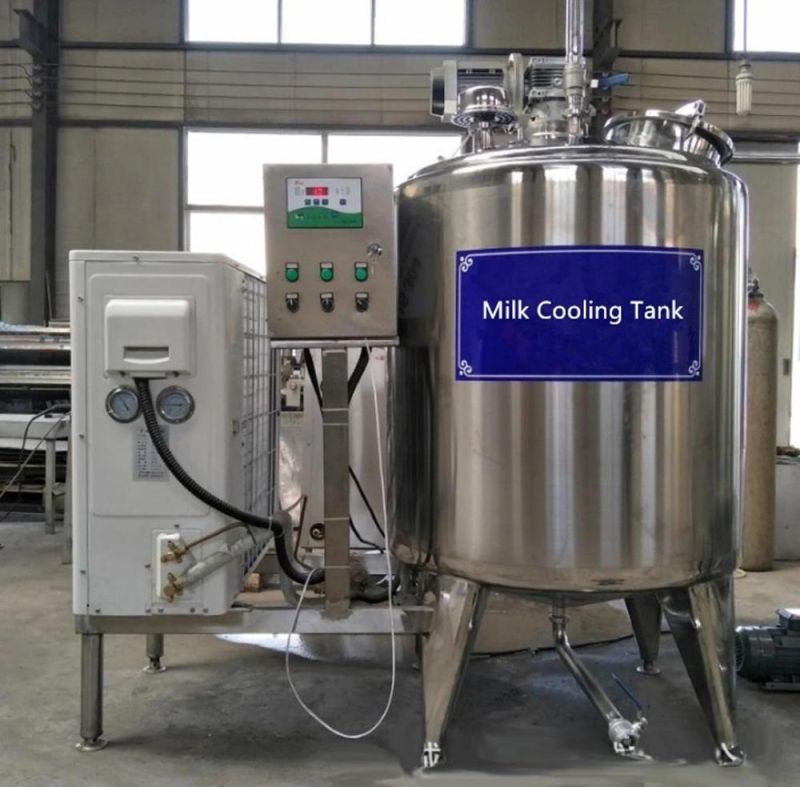

SS304 MILK COOLING TANK
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device
milk cooling tank milk storage tank fresh milk tank raw milk tank
Stainless Steel Vertical Type Milk Storage Tank For Australia New Zealand .
