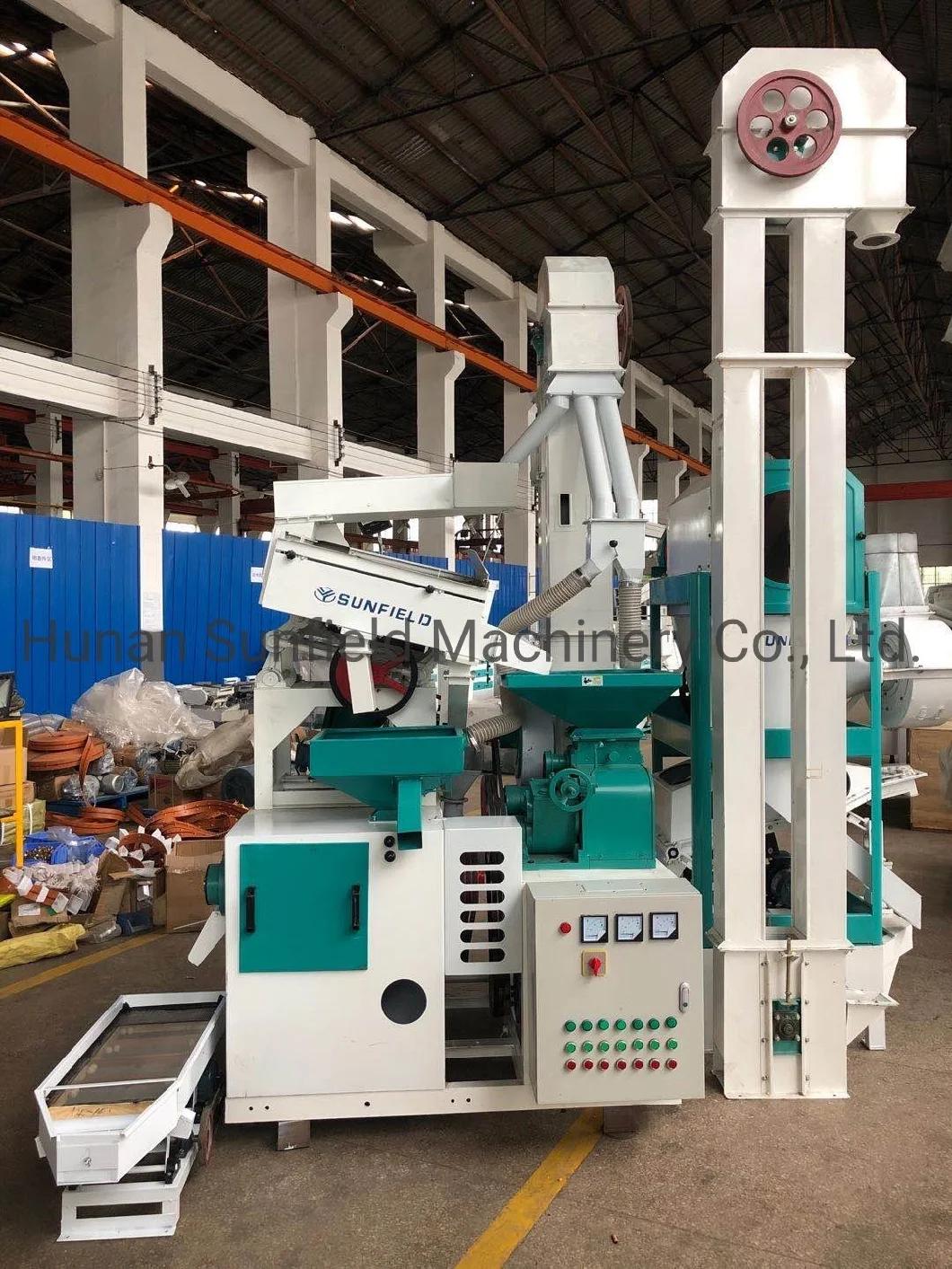

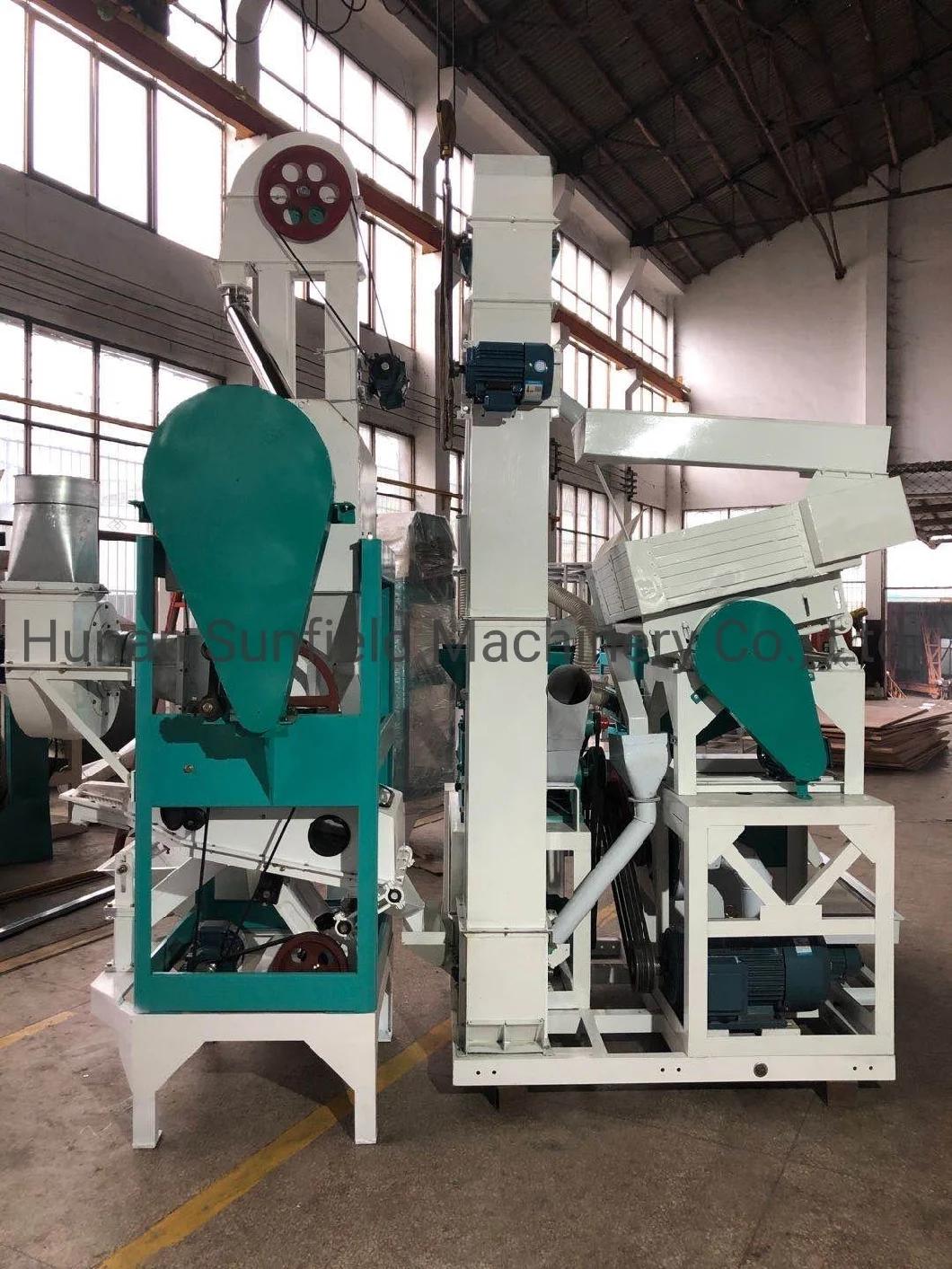

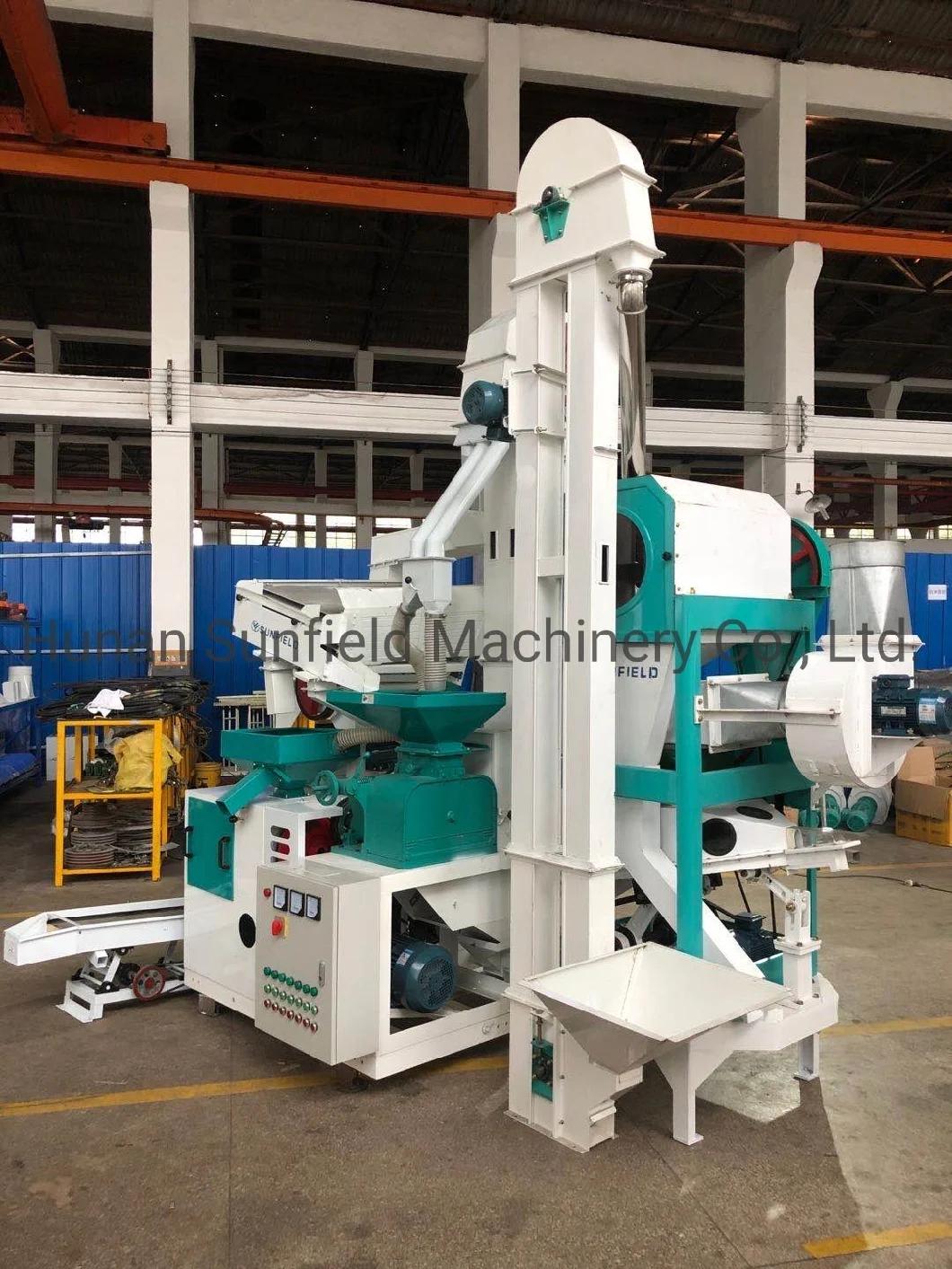

20 Tons Per Day Complete Set Rice Processing Machine with Destoner
Hunan Sunfield Machinery Co., Ltd.- Type：Rice Mill
- Application：Rice flour
- Voltage：220V
- Appearance：Vertical
- Press Materials：Rice
- Press Series：Fourth
Base Info
- Model NO.：CTNM20
- Condition：New
- Customized：Customized
- Rated Power：23kw
- Dimension：2800*1500*2900
- Ratio of Winnowned Rice：71%
- Net Weight：1400kg
- Speed of Main Spindle：1360(R,Min)
- Processing Object：Rice Bean
- Warranty：One Year
- Installation：Handbook
- Features：Compact
- Finish Color：White and Green
- Transport Package：by Wooden Case
- Specification：2800*1500*2900mm
- Trademark：Sunfield
- Origin：China
- HS Code：8437800000
- Production Capacity：100,Per Week
Description
3.Main configuration and technical parameters
| Model&Spec. | CTNM20A | CTNM20B | CTNM20C |
| Output(kg/h) | 800-1000 | 800-1000 | 800-1000 |
| Rice milling rate (%) | 68-72% | 68-72% | 68-72% |
| Cleaner and de-stoner | TZQY54/QSX45 | TZQY54/QSX45 | TZQY54/QSX45 |
| Husker | MLGT20 | MLGT20 | MLGT20 |
| Paddy separator | MGCZ70×6 | MGCZ70×6 | MGCZ70×6 |
| Rice mill | NF15A(1pc) | NF15A(1pc) | NF15A(1pc) |
| Rice grader | Basic rice grader | MJP50×2 | MJP50×2 |
| Rice polisher | / | / | MPGT12.5 |
| Single elevator | DTG19/8-1pc | DTG19/8-2pcs | DTG19/8-3pcs |
| Double elevator | DTG19/8-8 | DTG19/8-8 | DTG19/8-8 |
| Power(kw) | 25.32 | 26.62 | 49.87 |
| Overall dimension(mm) | 3300×1200×3400 | 3800×1200×3400 | 5000×1200×3400 |
4. Product Features
4-1 Unibody base designed for convenient transportation and installation, stable operation, low space occupation.4-2 High efficiency double-layer drum type cleaning sieve, strong precleaning performance.4-3 It improves production efficiency by the unique rehulling leftover paddy design.4-4 Innovative emery roller whitening technology, low rice temperature, less bran remains, improves the rice quality.4-5 Smooth processing flow, easy operation for just one person.4-6 Independent safe electric control system for more convenient operation.4-7 Improved transmission system extends duration of consumption parts4-8 Equipped with Rice Grader System to improve the polished rice level. 4-9 Modula design, reserves connectivity with follow up equipments to double mill, grade and sorte for better rice quality.4-10 Low investment and high yield
