Product Description

Adaptation:
CT-C drying box is designed for industrial mass production, the pharmaceutical industry is widely used in
Raw materials, Chinese medicine Pieces, extract, powder, granules, granules, water pills, bottles and other materials drying. and also
Applicable to dehydrated vegetables, feed, monosodium glutamate seasonings, chemical pigments, rubber, fiber, electronic components, new
Materials, clothing, food and other industries drying.



Equipment Characteristics:

1) The entire cabinet with a fully enclosed structure, hot air box circulation, energy efficient.
2) built-in high temperature circulating fan, greatly reducing heat loss, and strengthen the heat transfer.
3) The box is equipped with adjustable wind plate, can be adjusted up and down the opening, so that the upper and lower temperature inside the box.
4) Insulation thickness of 80mm, the material is white ultra-fine glass wool, in line with GMP standards, heat loss.

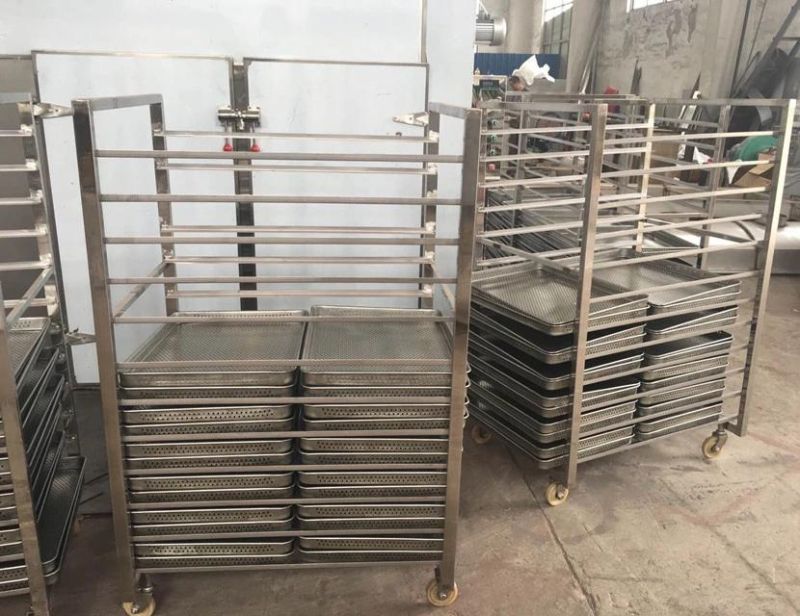

5) baking car baking for the industry uniform standards, baking disk network for multi-industry, interchangeability.
6) automatic temperature control, working time timing, mechanized production, batch product quality and stability.

Technical Parameters

Model	Capacity (kg)	Power (kw)	Consuming steam (kg/h)	Cooling area (m2)	Air volume (m3/h)	Equipped with baking tray (pcs)	Dimensions (mm)	Drying cart
CT-C-O	50	0.45	10	10	3400	24	1400x1200x2000	1
CT-C-I	100	0.9	18	20	3400	48	2300x1200x2000	2
CT-C-II	200	0.9	36	40	6800	96	2300x2200x2000	4
CT-C-III	300	1.35	54	80	10200	144	3200x2200x2000	6
CT-C-IV	400	1.8	72	100	113600	196	4300x2200x2000	8

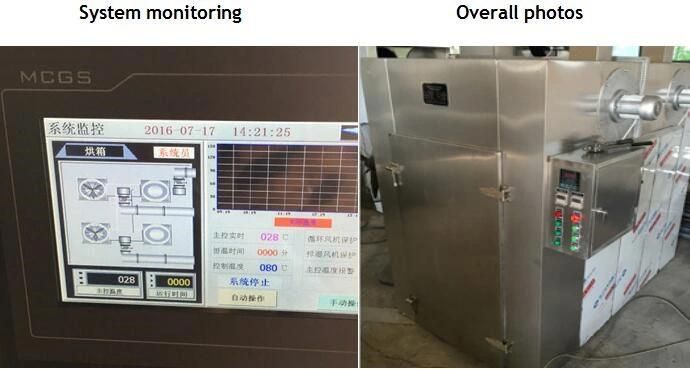

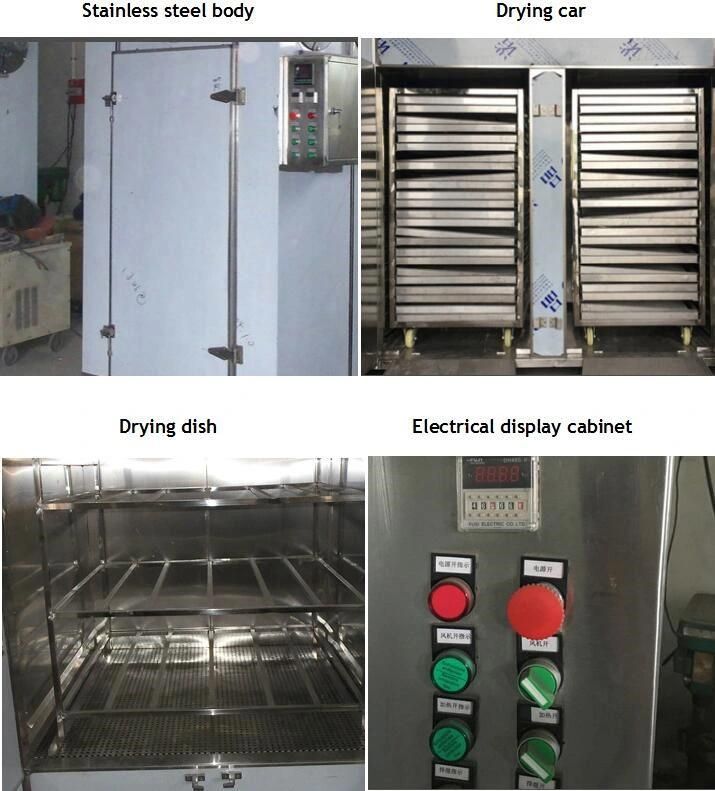

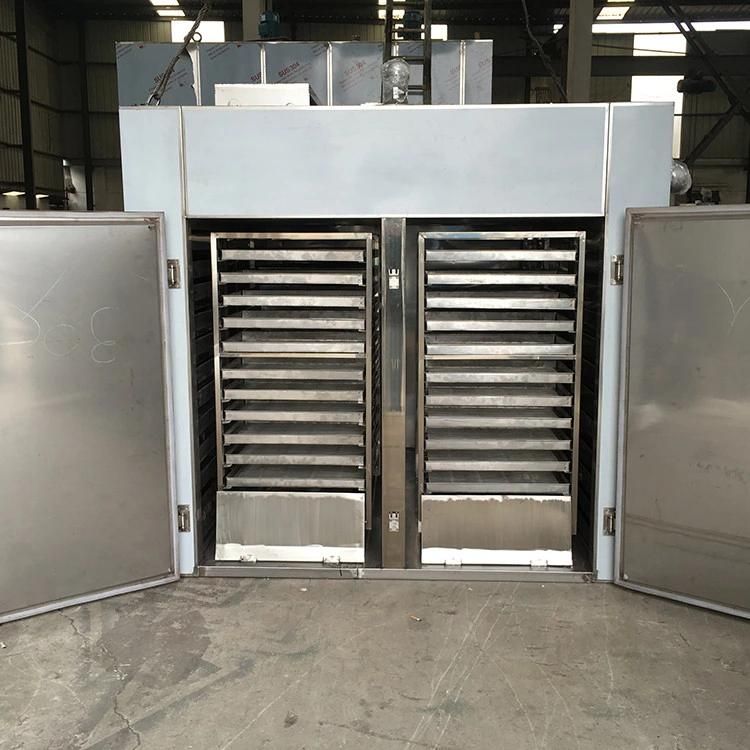

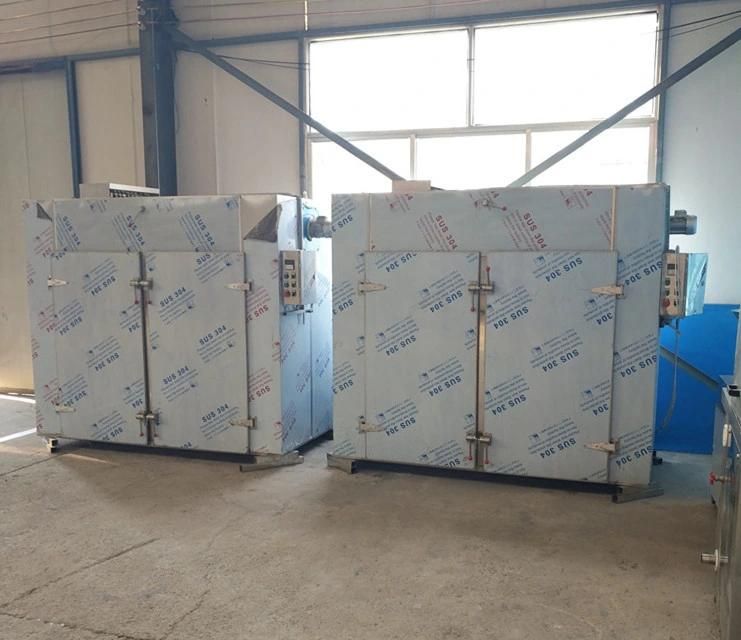

Details Photos

Samples Display

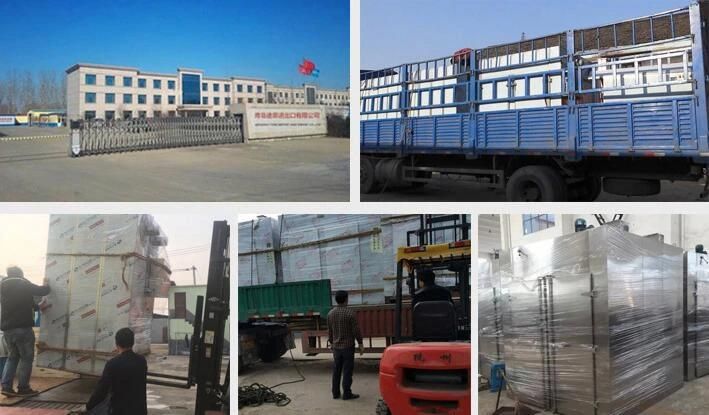

Our Company

FAQ
No1:Is sample order accepted?
Yes,sample order is accepted. You can place a trail order to evaluate the product quality and fabrication skill first.
No2:Is customized order accepted?
Yes, customized order is accepted.we are the ODM and OEM company.we can make the machine accroding to your requirement.
No3:How about the delivery?
after a 50%-80%deposit(if the machine is customized,you need to pay 80% deposit, if the amount is little,you need to pay full payment),we will prepare the products .
No4:How long of the validity term of the quotation?
The validity term of the quotation is 30days.
No5:How long of the guarantee period?
The Guarantee period is one or two years.
No6:Can we visit your factory?
Yes,of course,we are so happy if you visit our factory.
No7:After-sales service
According to the equipment which you have bought,we will discuss more information or technology about the machine with you,also send you pictures or videos about how to use and install it.

Our Service

Every clients care about the after-sell service, so we are:
1:The Machine gets one year warranty period.
2:During the time, If the machine get in trouble we will guide you to deal with the problems.

That is our promise . And we are looking for a good distributor in your country ,so the problems above they will be solved more timely .And we hope after tested the machine here could take a good business cooperation.
