• Operate：Automatic
• Model：CT-C-0
• Transport Package：Wooden Packing as Export Standard
• Trademark：Can be customized
• Origin：China
• Production Capacity：300 Sets Per Year

Basic Info.

Operate Automatic Model CT-C-0 Transport Package Wooden Packing as Export Standard Trademark Can be customized Origin China Production Capacity 300 Sets Per Year

Product Description

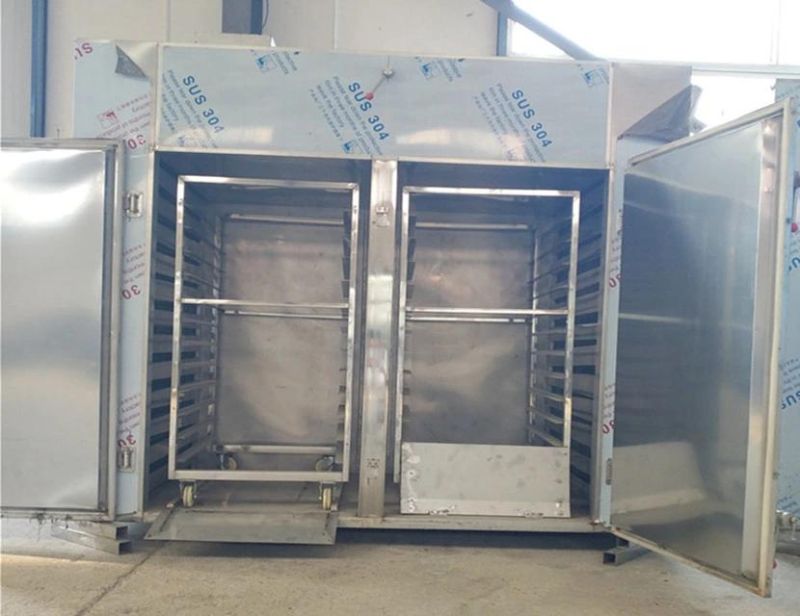

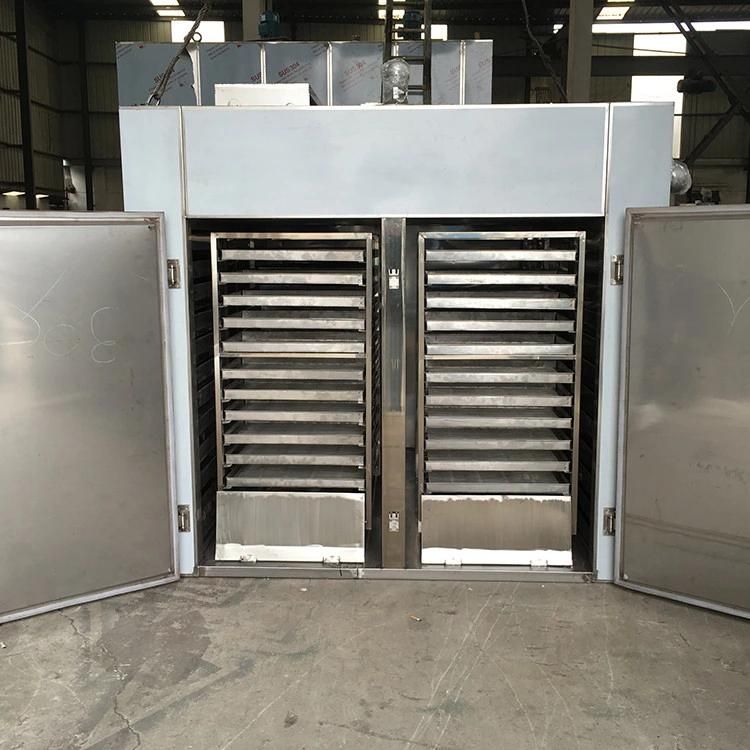

 Hot Air Circulation Drying Oven Wood Drying Oven


  Scope of application:

This drying oven is suitable for the material and product hot solidification and dry de-watering in the pharmaceutical, chemical, food, farming, side-product, aquatic product, light industries, heavy industries and others industries. Such as: raw material medicine, crude drug, prepared herbal medicine of Chinese traditional medicine, plaster, powder, particle, drinking agent, pill, packing bottle, pigment, dyestuff, de-watering vegetable, dried fruit piece, sausage, plastics, resin, electric component, baking varnish and etc.

Principle:

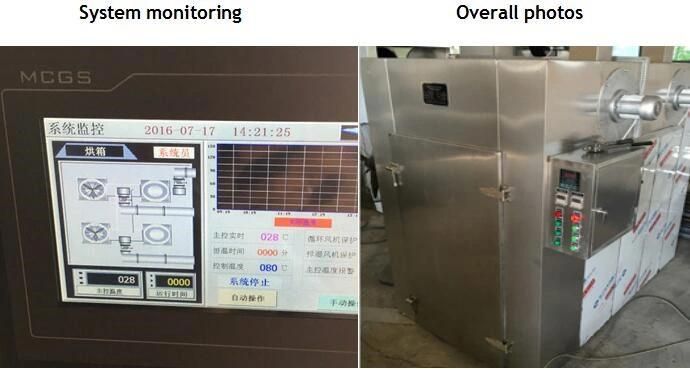

CT-C series hot air circulation oven uses a low noise and high temperature proof axial flow blower and an automatic temperature control system. The whole circulation system is the fully enclosed to make that the heat efficiency of the drying oven increases from 3~7% of the traditional drying oven to 35~45% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulation oven makes that the hot air circulation drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.

Features:

Most hot air is circulated in the oven. The Heat efficiency is high and the energy is saved. By using the forced ventilation function, there are adjustable air distribution plates inside the oven. The materials can be dried uniformly. The heating source might be steam, hot water, electricity and far infrared. The whole machine is low in the noise. The operation is in balance. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide. The machine can be used for drying various materials and it is a common drying equipment.

Company information

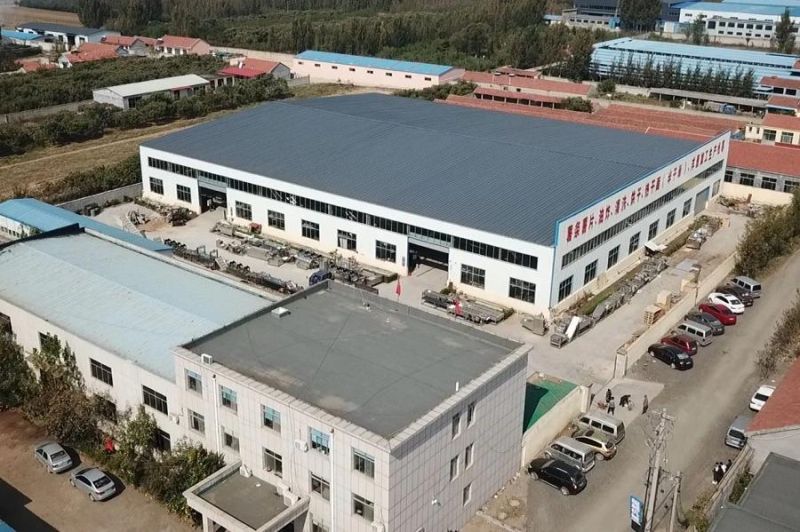

Qingdao Tune Machinery Co., Ltd is located in the beautiful coastal city Qingdao.Tune group as a major manufacturer of food equipment was established in 2009, Covering an area of 4500 square meters. and now we have more than 150 employees.With more than 10years marketing experience, TUNE Group export our high quality food equipment with best competitive price.




Packing  pictures

  Our Services

1. Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
2. Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
3. After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, providing phone or online troubleshooting services.
4. One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
5. Oversea service
Engineers available to service machinery overseas.
6. Feedback winthin 12 hours
We value every inquiry to us, provide quick and competitive offers within 12 hours.
7. Full manual document and customs materials
All necessary documents will be offered .
8. Multiple Payment Ways
We accept multiple terms of payment, such as L/C, T/T, western Union, Money Gram, AlibabaTade Asurance.

Pls feel free to contact us~~~
