• Model NO.：240
• Voltage：210-230V,50Hz
• Power：2.5kw
• Capacity：40L,Hour
• Material：Stainless Steel
• Dimension (Net)：550mmx650mmx1340mm
• Dimension (Packing)：650mmx780mmx1520mm
• N.W. (Kg)：190 Kg
• G.W. (Kg)：210 Kg
• Transport Package：Carton with Pallet
• Specification：CE; ISO9001: 2000
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 240 Voltage 210-230V/50Hz Power 2.5kw Capacity 40L/Hour Material Stainless Steel Dimension (Net) 550mmx650mmx1340mm Dimension (Packing) 650mmx780mmx1520mm N.W. (Kg) 190 Kg G.W. (Kg) 210 Kg Transport Package Carton with Pallet Specification CE; ISO9001: 2000 Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

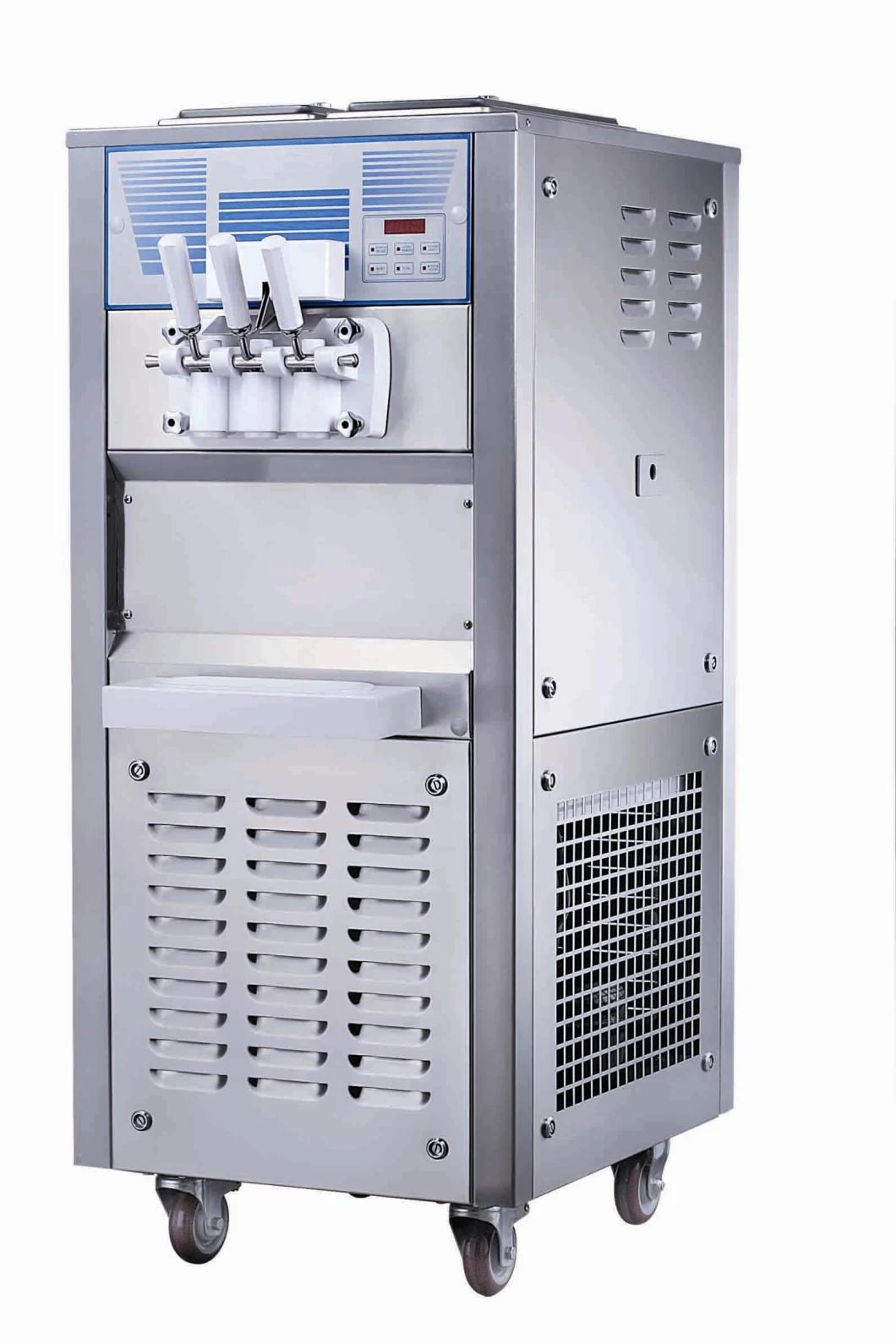

Soft ice cream machine 240







Feature:
* Floor Model
* Gravity Feed
* Twin flavours + one mixed
* 2X 1.7 Liters Cylinder
* 2X12.5Liters Hopper
* 40 Liters/H
* Stainless Steel Panels
* Touch button control panel

Capacity
40 Liters/H, 300 cones/hour (100ml/cone)
(Capacity varies depending on condition of mix and environment)

Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Freezing Cylinder
Two, 2× 1.7 liters

Mix Hopper
Two, 2× 12.5 liters
Separate hopper refrigeration (Pre-cooling) maintains mix temperature below 5º C

Refrigeration System
Main refrigeration:
One compressor: 4700 BTU/hr. R404A
Separate hopper refrigeration (Pre-cooling. ):
One compressor: 420 BTU/hr. R134A
(BTU may vary depending on compressor used. )

Beater Motor
One, 1.0 HP

Hardness Indicator
Displays hardness status of the refrigerated product to ensure product quality.

Standby
During long no-use periods, the standby feature maintains safe product temperature in the mix hoppers and freezing cylinders.

Electronic Controls
The microprocessor controls automatically regulate refrigeration by monitoring product temperature and viscosity to maintain consistent quality.

Air Cooled
Required clearance: Minimum 152mm (6") on both sides. Unit rear must be placed against a wall to prevent recirculation of hot air. Minimum air clearances must be met to assure adequate air flow for optimum performance.

Options:
1, Manufactured upon request, not available in stock
2, Ice cream cone&cup dispenser
3, Power Supply: 220V/60Hz
4, Local specific plugs of power supply wire.
5, Cover of dispenser door.
