• Model NO.：6238
• Model：Table Model
• Power (Kw)：2.8
• Voltage (V)：220
• Dimension(Net)：917x554x1065mm
• Dimension(Packing)：850x645x1250mm
• N.W.(Kg)：150
• G.W.(Kg)：170
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：10000 Units,Month

Basic Info.

Model NO. 6238 Model Table Model Power (Kw) 2.8 Voltage (V) 220 Dimension(Net) 917x554x1065mm Dimension(Packing) 850x645x1250mm N.W.(Kg) 150 G.W.(Kg) 170 Transport Package Standard Export Packing Specification CE Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 10000 Units/Month

Product Description

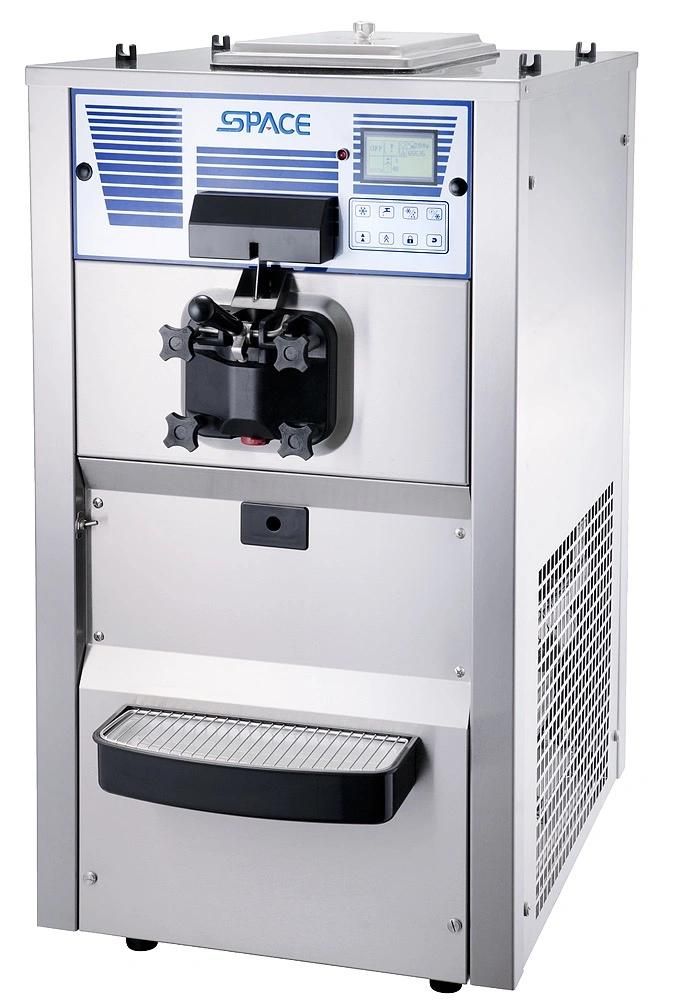

Soft serve ice cream machine  6238






Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature:

1. Table model
2. Air cooling
3. Single flavour
4. Gravity feed freezer
5. Stainless Steel Panels
6. Touch button control panel

Freezing cylinder
One, 3.2 Liter

Mix hopper
One, 15 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4° C.

Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4° Cduring long no-use periods.

Counter
Records number of dispenses per day and total number of dispenses.

Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.

Output
38LIter/Hour(At 4° Cliquid &24° CAmbient)

Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is on.

Main motor
One, 2.0HP

Refrigeration system
One compressor: 6486 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.

Specification

Voltage: 210-230V/50Hz
Power: 2.8KW
N. W. (KG): 150kg
G. W. (KG): 170kg
Dimension Net (mm): 917*554*1065
Dimension Packing(mm): 850*645*1250

Options
Local specific plugs of power supply wire
Cup dispenser
Power supply 220V/60Hz
