• Model NO.：GJB Series
• Name：New Sanitary Mango Apple Grape Juice High Pressur
• Material：Food Grade Stainless Steel 304,316
• Appication：Milk , Juice, Beverage, Butter, Honey, Cream
• Flow / Hour：500L,H--10000L,H

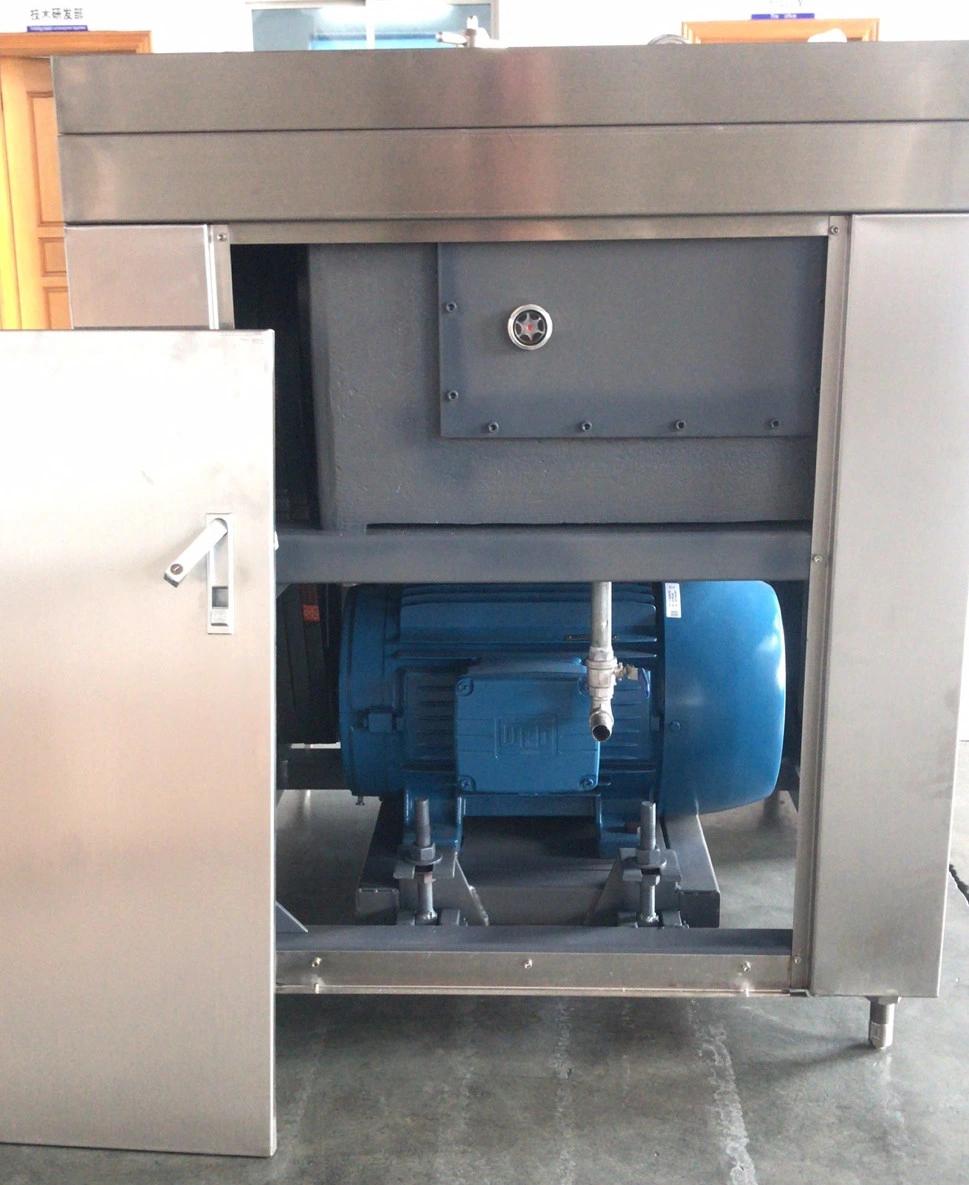

• Motor：ABB ,Simens ,Shanghai
• Pressure：25MPa to 100MPa

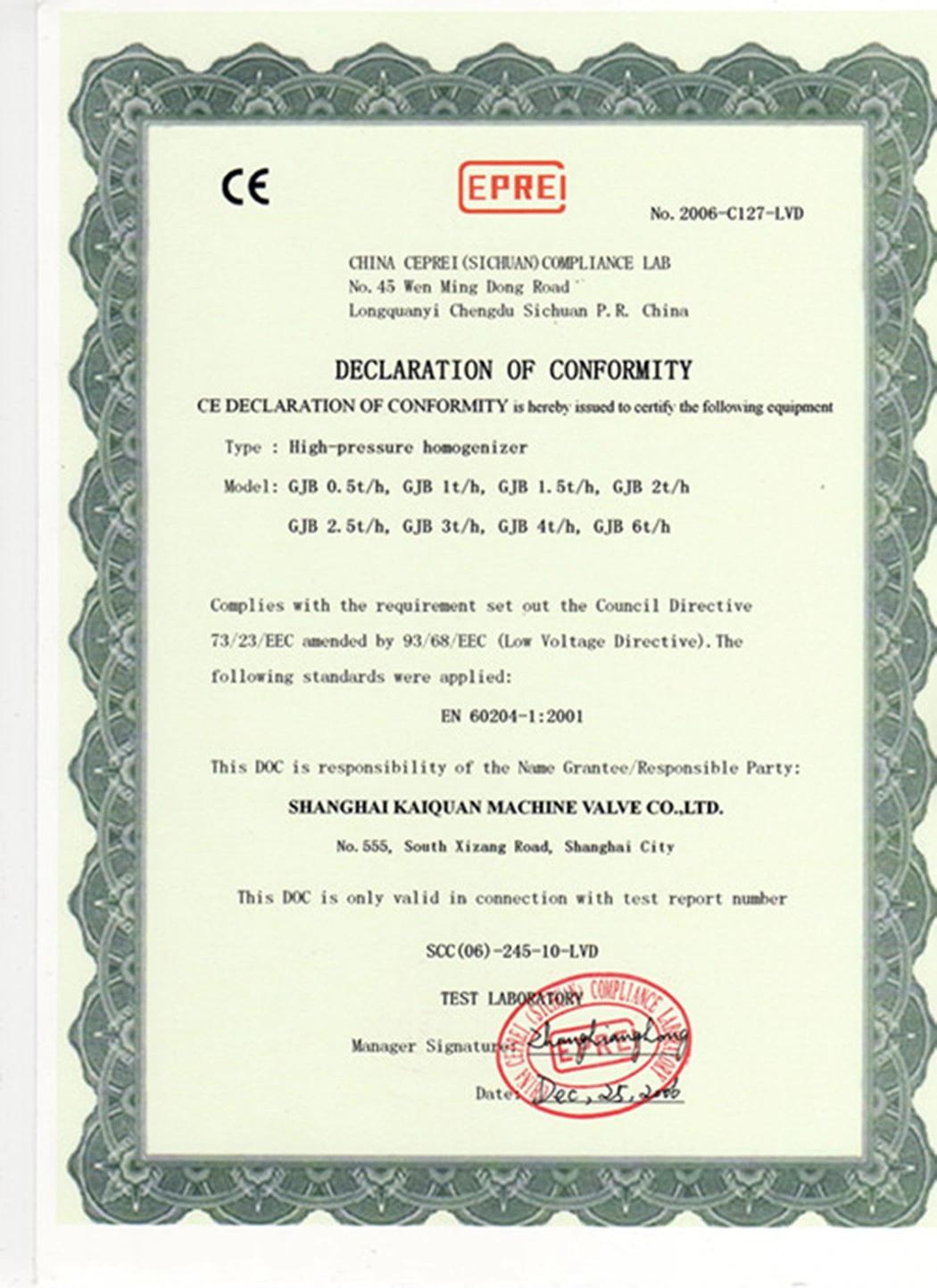

• Certificate：Ce Certificate
• Voltage /Hz /Phase：Make to Your Order .
• Working Temperature：95c
• Packing：Plywood Box
• Warranty：One Year

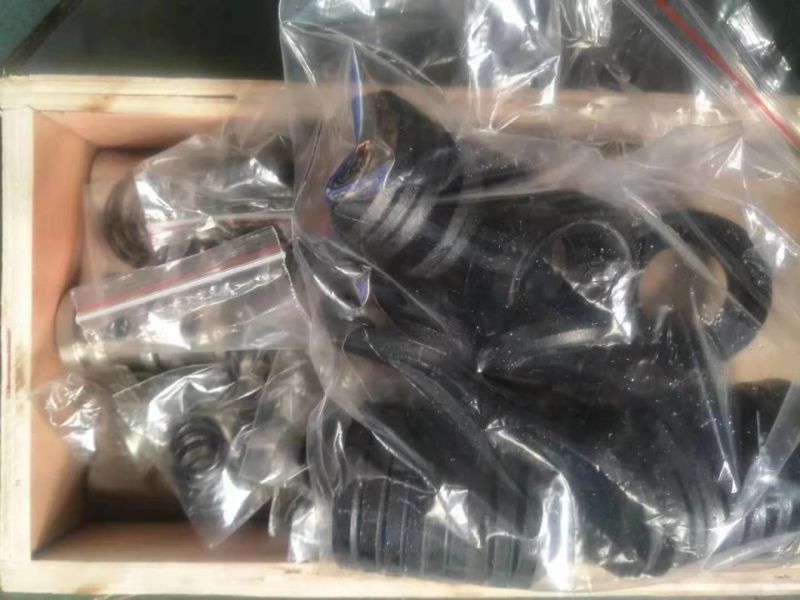

• Spare Parts：Available
• Voltage ,Hz,Phase：Make It to Your Order
• MOQ：1set
• OEM：Yes
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name New Sanitary Mango Apple Grape Juice High Pressur Material Food Grade Stainless Steel 304/316 Appication Milk , Juice, Beverage, Butter, Honey, Cream Flow / Hour 500L/H--10000L/H Motor ABB /Simens /Shanghai Pressure 25MPa to 100MPa Certificate Ce Certificate Voltage /Hz /Phase Make to Your Order . Working Temperature 95c Packing Plywood Box Warranty One Year Spare Parts Available Voltage ,Hz,Phase Make It to Your Order MOQ 1set OEM Yes Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

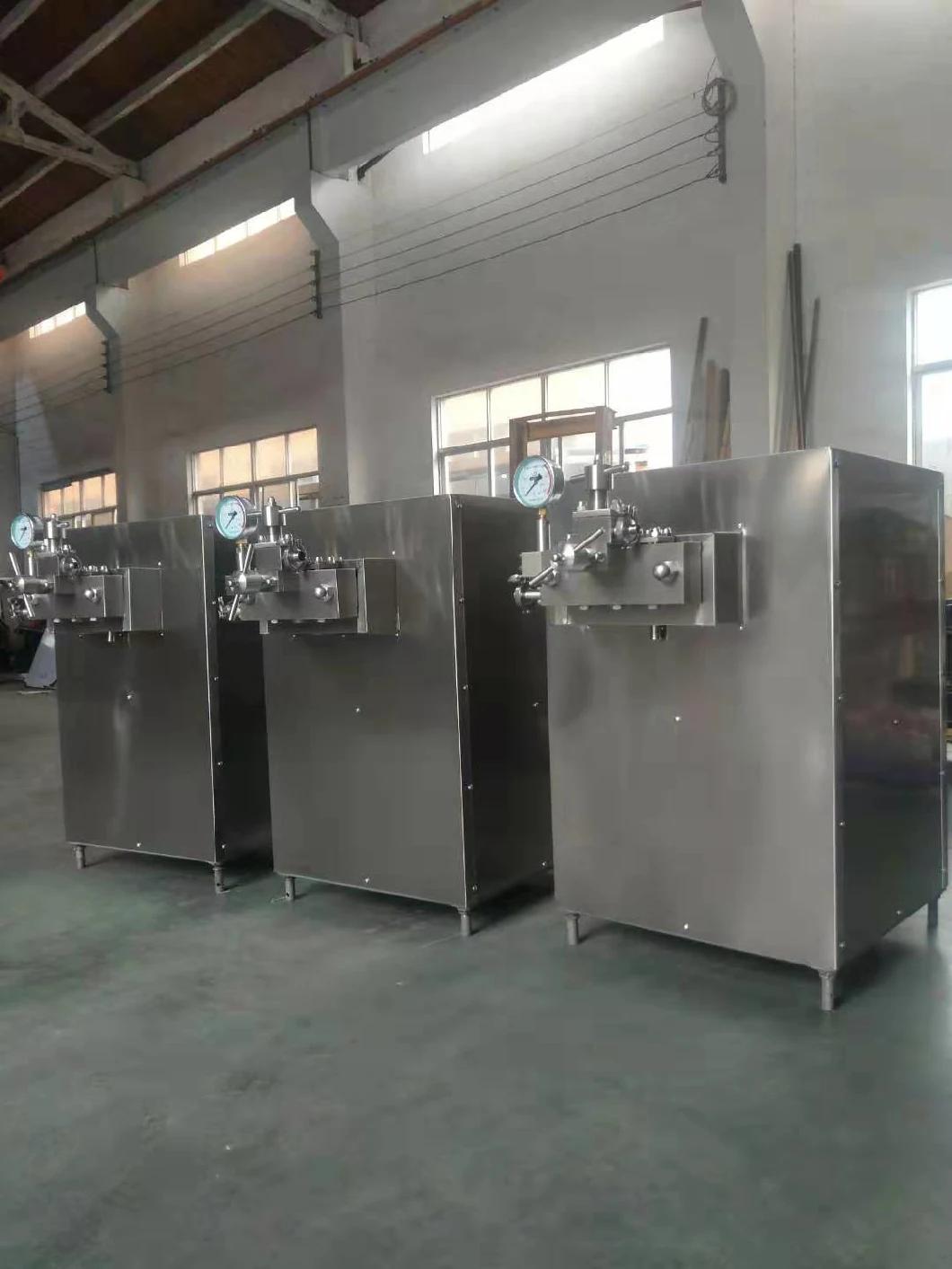

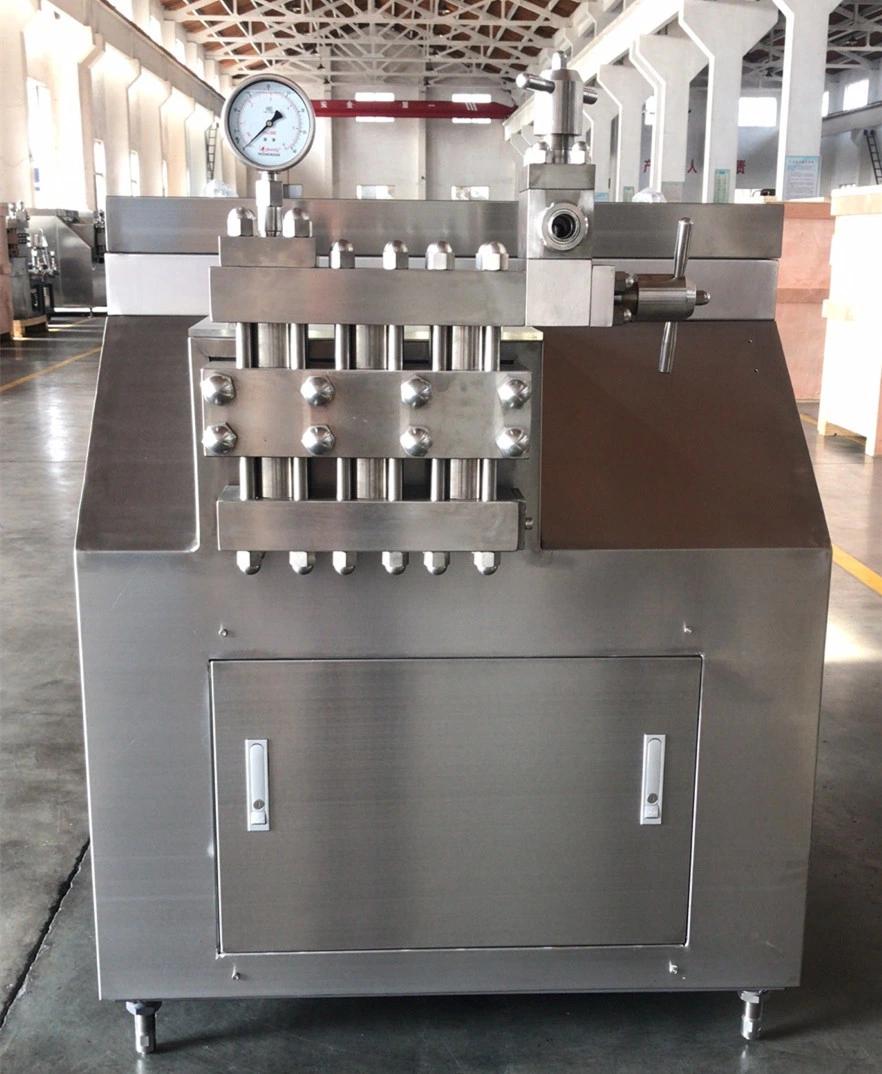

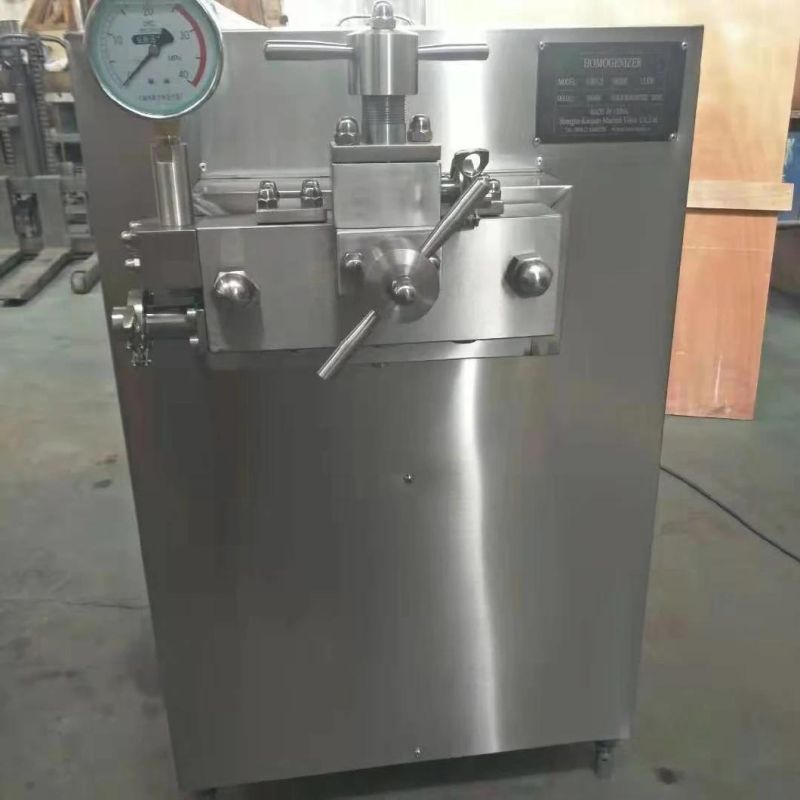

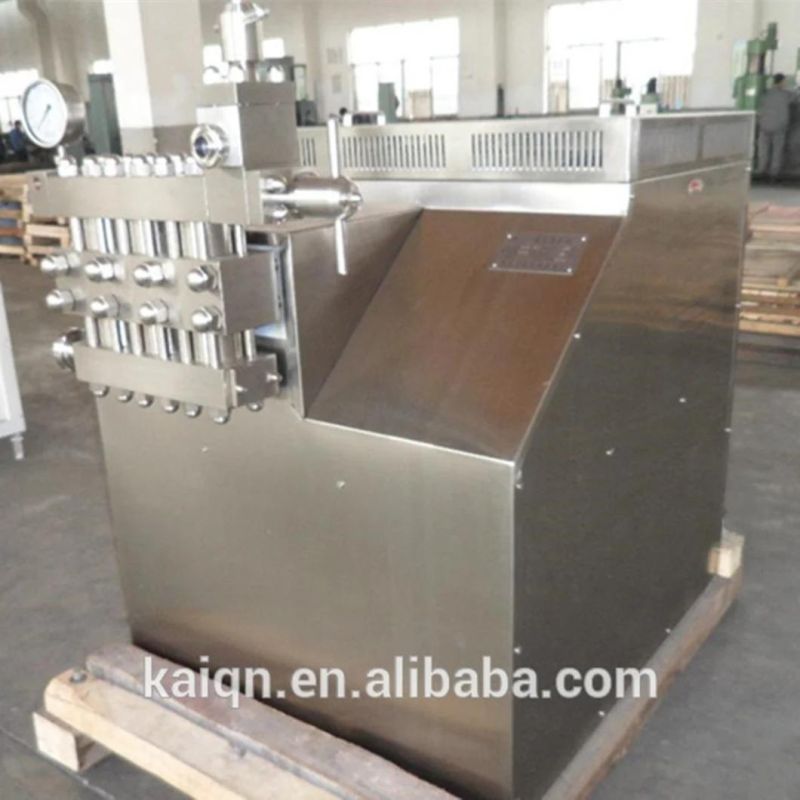

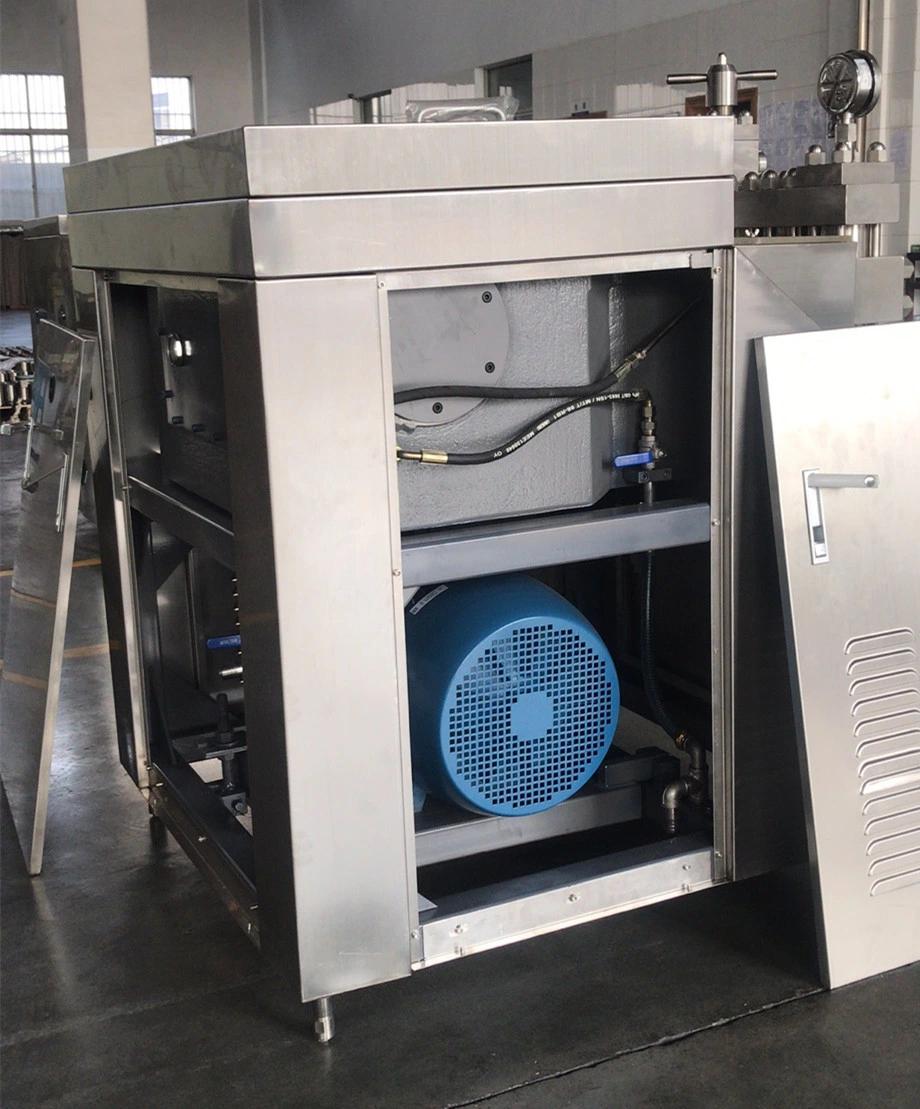

New Sanitary Mango Apple Grape Juice High Pressure Homogenizer

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life



series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.




The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
New Sanitary Mango Apple Grape Juice High Pressure Homogenizer .
